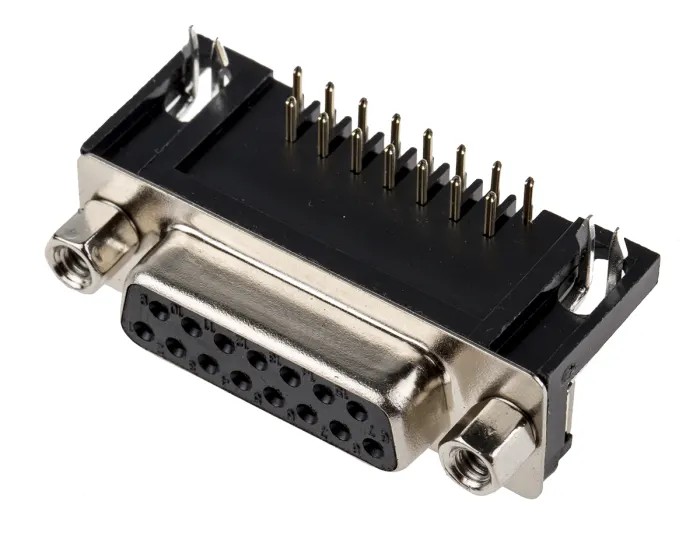

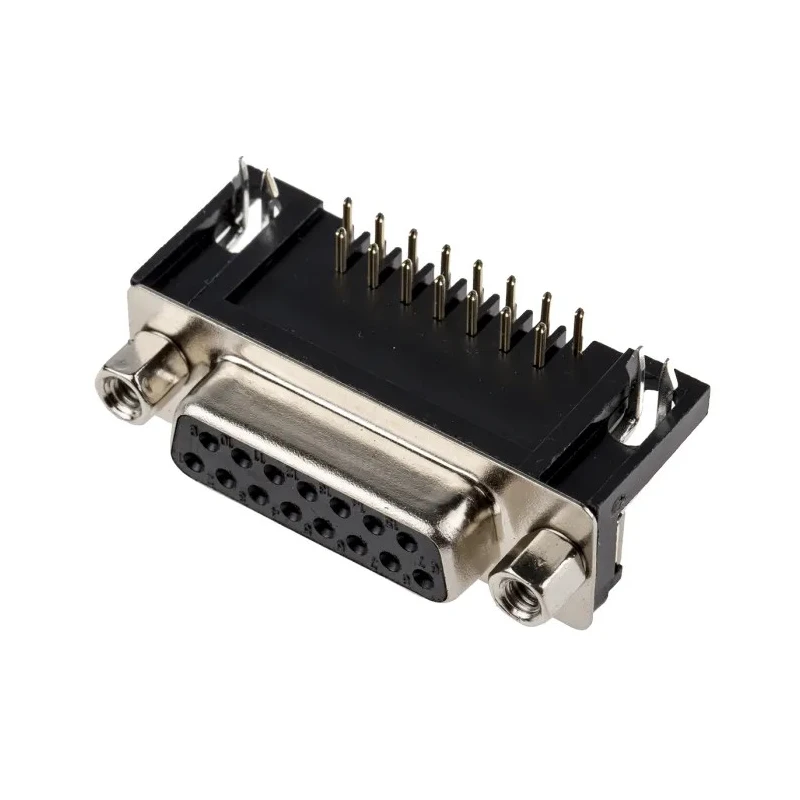

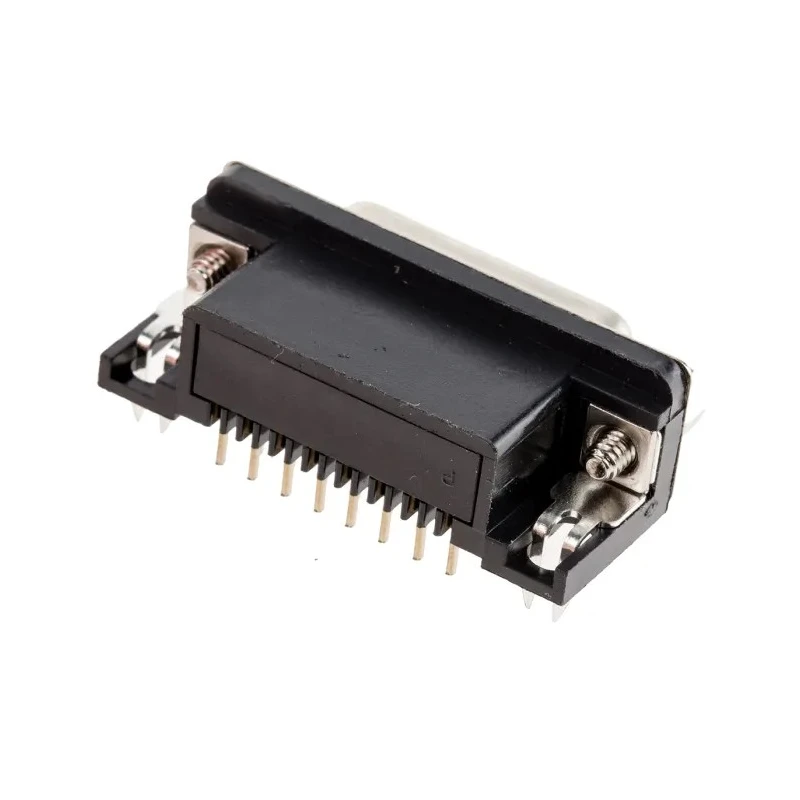

RS PRO 15 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 811-7121

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 15 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 811-7121

Name: RS PRO 15 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 811-7121
Brand: RS PRO
SKU: 375386
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	3A
Model	811-7121
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Brass
Series	107
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
A range of Right Angle PCB mount D-Sub connectors with	Nickel plated steel shells, Black Glass-Filled Thermoplastic PBT UL 94V-0 insert, Brass Gold flash plated stamped contacts, Brass Tin plated grounding hook boardlocks, Brass Nickel plated M3 threaded screwlocks installed and 9.4 mm footprint

Key Features

This D-Sub connector features 15 contacts rated for 3A current capacity.
Designed with right angle orientation for through hole mounting on printed circuit boards.
The female connector comes with nickel plated steel shells and gold flash plated brass contacts.
It operates in temperatures ranging from -55°C to a maximum of 105°C, suitable for harsh environments.
Housing is made from fibreglass reinforced polybutylene terephthalate with UL 94V-0 rating for flame retardance.
Termination is by solder type assuring solid electrical and mechanical joint.
The connector has a pitch of 2.77 mm and a 9.4 mm footprint, compatible with standard PCB layouts.
Mounting hardware includes brass nickel-plated M3 threaded screw locks for firm attachment.

Product Description

RS PRO 811-7121 is a 15 Way Right Angle D-Sub Connector engineered for robust electronic applications requiring reliable PCB mounting. The connector features a 2.77 mm pitch with through hole mount type, ensuring stable installation with 4 to 40 UNC brass nickel-plated M3 threaded screw locks. It is designed with a female connector gender and solder termination for secure electrical connections.

The connector shell is made from nickel plated steel, while the housing uses black glass-filled thermoplastic polybutylene terephthalate with UL 94V-0 flame retardant rating. Contacts are brass with gold flash plating, enhancing conductivity and corrosion resistance. The device can handle currents up to 3A and voltages up to 250V, with a temperature operating range from -55°C minimum to 105°C maximum, making it suitable for industrial, electronic, and communication equipment.

This D-Sub connector's right angle orientation allows compact PCB layouts, maintaining a low profile and efficient space usage. The 9.4 mm footprint matches standard D-Sub dimensions, facilitating easy integration in existing designs. Ideal for applications in industrial control systems, telecommunications, test equipment, and other electronic assemblies.

15 contacts rated 3A current capacity for reliable electrical performance. Right angle, through hole mounting enables robust PCB attachment. Solder termination type provides dependable connection integrity. Fibreglass reinforced PBT housing with UL 94V-0 flame retardant rating.

Nickel plated steel shells and gold flash plated brass contacts for durability. Temperature range -55°C to 105°C accommodates harsh environments. Mounting hardware includes brass nickel-plated M3 screw locks for secure fixing.

2.77 mm pitch and 9.4 mm footprint meet standard D-Sub connector specifications.

RS PRO connectors are widely used in electronics manufacturing, telecommunications, instrumentation, and industrial equipment for their reliability and compliance with technical demands.
