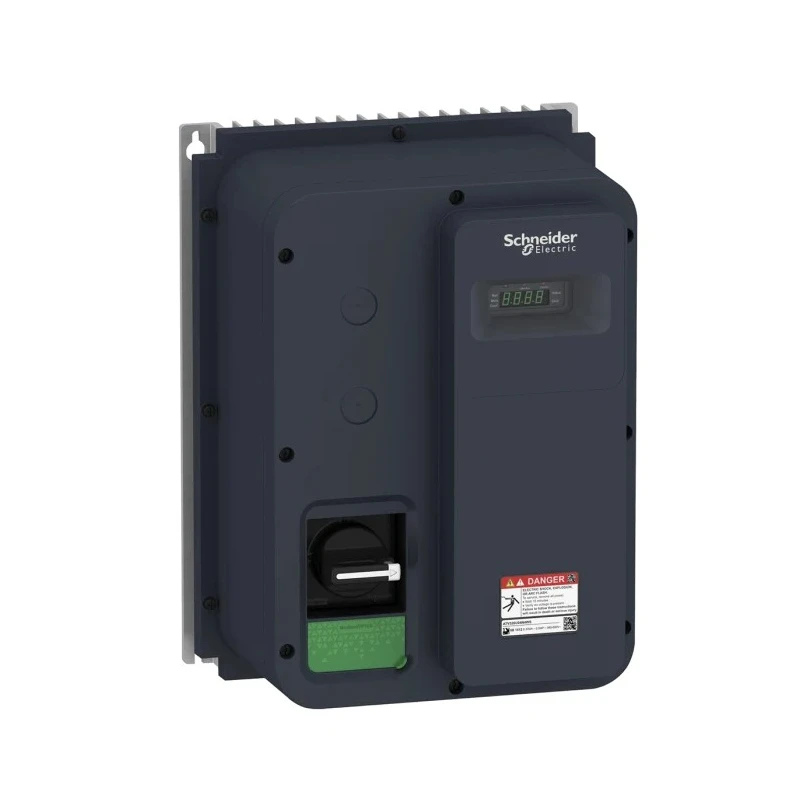

Schneider Electric Variable Speed Drive, 1.5 kW, 3 Phase, Altivar Series, IP65, Wall Mount, 380-500V AC ATV320U15N4WS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U15N4WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 200mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 4.1A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, Synchronous, AC Motor |
Key Features
- Designed for synchronous and asynchronous motors with rated voltage from 380V to 500V AC.
- Wall mount type with IP65 rating ensures protection from dust and water for harsh environments.
- Maximum output current of 4.1 A supports precise speed regulation.
- Features Modbus and CANopen communication protocols with RJ45 access on the front panel.
- Includes embedded EMC C2 filter and is delivered fanless for reduced maintenance.
- Conforms to multiple international safety and performance standards, including CSA, UL, IEC, and REACH.
- Operating temperature ranges from -10°C to +60°C, suitable for varied industrial settings.
- Integrated safety functions configurable via SoMove software enhance machine safety.
Product Description
Schneider Electric ATV320U15N4WS variable speed drive offers 1.5 kW power and is engineered for 3 phase synchronous and asynchronous motor control with voltages between 380V and 500V AC. Its Altivar series design includes a robust IP65 enclosure rating, making it suitable for use in harsh industrial environments where dust and chemical exposure are concerns.
This compact wall-mounted drive measuring 250mm length, 200mm width, and 340mm depth weighs 6.4 kg and operates reliably over a temperature range of -10 to +60 degrees Celsius. It features an embedded EMC C2 filter and excludes a cooling fan to lower maintenance requirements.
Communication is enhanced with standard Modbus and CANopen protocols accessible via the front RJ45 connector, allowing seamless integration into automation networks. The drive is compliant with critical international standards such as UL 61800-5-1, CSA, IEC 61508, and REACH, assuring reliable safety and performance in industrial applications.
The ATV320U15N4WS includes five safety functions configurable through SoMove software that help manufacturers meet machine safety requisites. It supports output frequencies from 0.1 to 599 Hz and a maximum output current of 4.1 A, providing precise motor speed control.
Its compact size and washdown capability suit a variety of industries including material handling conveyors, carton packers, gantry cranes, woodworking machinery, metal processing, and Food & Beverage manufacturing environments. EcoStruxure Machine software compatibility simplifies machine development and commissioning by integrating logic, motion control, HMI, and automation functions in a single environment.
Designed for variable speed control of asynchronous and synchronous motors. Includes embedded EMC filter and IP65 protection for cleaning and harsh conditions. Supports Modbus and CANopen communications for easy network integration.
Configurable safety functions to enhance machine compliance with standards. Compatible with EcoStruxure Machine software for efficient machine development. Wall mount design with compact footprint and robust enclosure. Supports output frequency 0.1-599 Hz and max output current 4.1 A.
Conforms to international certifications including UL, CSA, IEC, and REACH. Ideal for industrial applications in packaging, conveyors, woodworking, and food processing. Manufactured in Indonesia to high-quality standards.
Explore more automation and control gear products like the Schneider Electric ATV320U15N4WS variable speed drive at EnvMart for reliable industrial motor control solutions.
Explore more products in our Variable Speed Drives category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 1.5 kW, suitable for controlling motors in various industrial applications.
The maximum output current is 4.1 A, allowing for precise speed regulation of connected motors.
It operates reliably within a temperature range of -10°C to +60°C, making it suitable for diverse industrial environments.
This unit is designed for use with asynchronous and synchronous AC motors, providing flexibility in motor control applications.
It supports Modbus and CANopen communication protocols, enabling easy integration into automation networks.
The ATV320U15N4WS has an IP65 rating, ensuring protection against dust and water, suitable for harsh environments.
This model measures 250 mm in length, 200 mm in width, and 340 mm in depth, with a weight of 6.4 kg.
It includes five configurable safety functions accessible via SoMove software, helping manufacturers meet safety standards.
The drive supports an output frequency range from 0.1 to 599 Hz, allowing for versatile motor speed control.
This model is designed for wall mounting, providing a compact solution for various installation environments.
It conforms to multiple international standards, including UL, CSA, IEC, and REACH, ensuring reliable safety and performance.
This variable speed drive is manufactured in Indonesia, adhering to high-quality standards.
