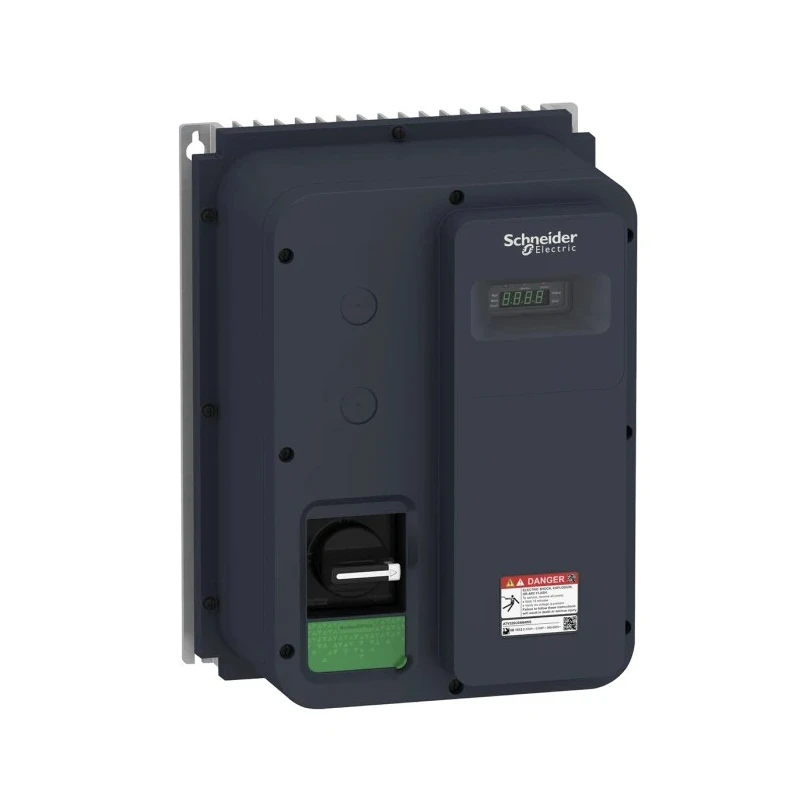

Schneider Electric Variable Speed Drive 1.1 kW 3 Phase Wall Mount IP65 ATV320U11N4WS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U11N4WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 200mm |
| Power Rating | 1.1kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 3A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, AC Motor, Asynchronous Motor |
Key Features
- Wall mount design suitable for compact installation.
- Supports 3 A maximum output current with motor compatibility for synchronous and asynchronous AC motors.
- Operates at supply voltage range of 380 V to 500 V AC.
- Output frequency adjustable from 0.1 Hz to 599 Hz.
- Designed for harsh environments with washable IP65 enclosure.
- Equipped with embedded EMC C2 filter and no fan for reliability.
- Includes Modbus and CANopen communication via front RJ45 connector.
- Five integrated safety functions configurable via SoMove software.
Product Description
Schneider Electric ATV320U11N4WS variable speed drive is a high-performance solution providing 1.1 kW power output for 3-phase motors. It features a wall mount IP65-rated enclosure designed to withstand harsh environmental conditions including exposure to dust and chemical pollution. The drive operates within a supply voltage range of 380 V to 500 V AC and delivers adjustable output frequency from 0.1 to 599 Hz suitable for precise motor control.
This model supports both synchronous and asynchronous AC motors, making it versatile for various industrial applications such as conveyors, carton packing machines, gantry cranes, woodworking, metal processing, fans, and the food and beverage industry. The drive is equipped with an embedded EMC C2 filter and is fanless to enhance reliability and reduce maintenance.
Communication capabilities include Modbus and CANopen protocols accessible via a front RJ45 connector, enabling seamless integration into automation systems. Additionally, it delivers five safety functions configurable through SoMove software, helping machines meet stringent safety requirements.
The ATV320U11N4WS complies with multiple international certifications such as CSA, UL, IEC standards, and the REACH directive, ensuring quality and reliability in demanding industrial settings.
Its compact dimensions (250 mm length, 200 mm width, 340 mm depth) and lightweight of 6.4 kg enable space-saving and straightforward installation. The drive is also designed to operate in a temperature range of -10°C to +60°C, suitable for diverse industry environments.
Wall mount IP65 enclosure for harsh conditions. Compatible with synchronous and asynchronous motors. Embedded EMC C2 filter with fanless design. Supports Modbus and CANopen communication. Includes configurable safety functions via SoMove.
Multiple international standard certifications. Wide operating temperature range. Adjustable frequency from 0.1 to 599 Hz.
Ideal for industrial automation applications in manufacturing, material handling, packaging, and HVAC systems. Discover a reliable and energy-saving variable speed drive designed to enhance motor performance with Schneider Electric's ATV320U11N4WS. Explore more in the Variable Speed Drives category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This variable speed drive provides a power output of 1.1 kW.
The output frequency is adjustable from 0.1 Hz to 599 Hz.
It operates within a supply voltage range of 380 V to 500 V AC.
It is compatible with both synchronous and asynchronous AC motors.
The drive has dimensions of 250 mm in length, 200 mm in width, and 340 mm in depth, with a weight of 6.4 kg.
It has an IP65 rating, making it suitable for harsh environments.
It supports multiple interfaces including Modbus, CANopen, EtherNet/IP, Profinet, EtherCAT, Profibus, and DeviceNet.
The maximum output current is 3 A.
It operates within a temperature range of -10°C to +60°C.
It includes five integrated safety functions that are configurable via SoMove software.
The country of origin for this model is Indonesia.
Yes, it is designed to be fanless, which enhances reliability and reduces maintenance needs.
