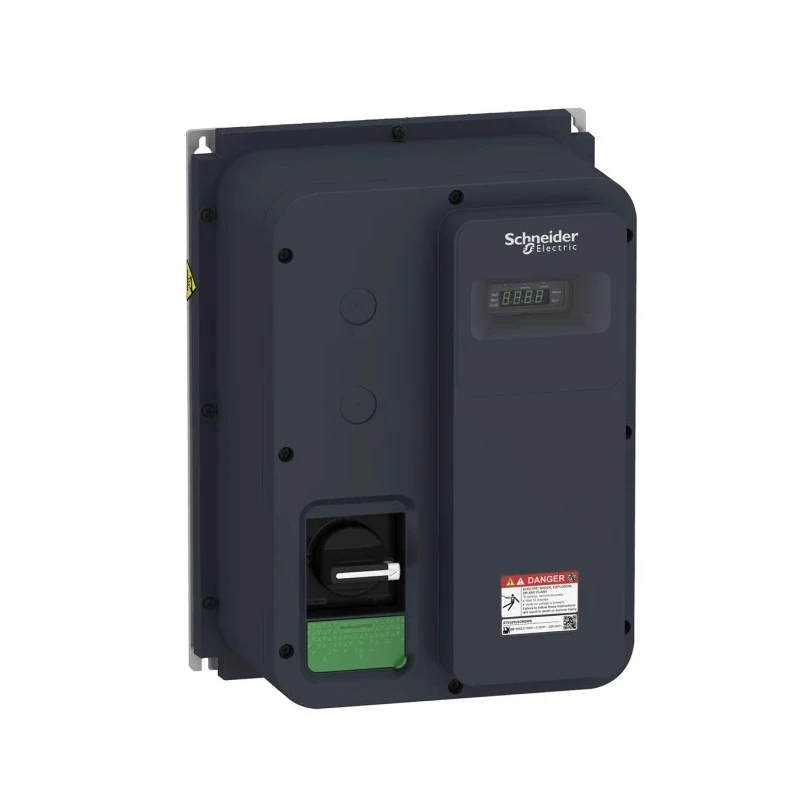

Schneider Electric Variable Speed Drive 180 W 1 Phase Wall Mount Altivar Series ATV320U02M2WS

Delivering 180 W power at a single-phase supply, this Altivar Machine drive supports both asynchronous and synchronous AC motors with a maximum output current of 1.5 A. Compatible with supply voltage ranging from 200 V to 240 V AC, it provides output frequency control from 0.1 Hz up to 599 Hz, enabling dynamic motor speed adjustments with accuracy and efficiency.

The compact wall-mount design, measuring 250 mm in length, 182 mm in width, and 340 mm in depth, is IP65 rated for dust and water resistance. It features a robust housing that is washable, making it ideal for harsh environments contaminated by dust or chemicals. The embedded EMC C2 filter ensures electromagnetic compatibility, while the drive offers IP66 protection for enhanced durability.

Communication is simplified with integrated Modbus and CANopen protocols accessible through an RJ45 connector located on the front panel, allowing easy integration with automated systems. The drive software includes five built-in safety functions that can be configured using SoMove software to meet industrial safety requirements.

Intended for industrial applications such as conveyors, carton packaging machines, gantry cranes, woodworking, metal processing, fans, and food and beverage production lines, this variable speed drive conforms to multiple international standards, including CSA, C-Tick, EN/IEC 61800, GOST, IEC 61508, NOM, REACH, and UL certifications. It supports EcoStruxure Machine software for comprehensive machine development, logic programming, motion control, and human-machine interface configuration in a unified environment.

The sturdy construction and versatile control features make the ATV320U02M2WS an excellent choice for material handling, packaging, textiles, hoisting, mechanical actuators, and processing machinery. It is supplied in two packages and can be installed singly or side-by-side in multi-drive setups for scalable system designs.

The drive supports asynchronous and synchronous AC motors for versatile motor control. Wall mount design provides space-saving installation in industrial settings. Supply voltage compatibility from 200 V to 240 V AC ensures wide applicability.

Output frequency range of 0.1 Hz to 599 Hz allows precise speed regulation. IP65 and IP66 ratings offer protection against dust and water ingress. Embedded EMC C2 filter helps maintain electromagnetic compatibility. Integrated Modbus and CANopen protocols simplify system integration.

Includes five configurable safety functions to meet compliance standards. Compatible with EcoStruxure Machine software for advanced automation. Suitable for applications in conveyors, gantry cranes, packaging, and more. Explore advanced automation solutions with Schneider Electric Variable Speed Drives at EnvMart to optimize your industrial machinery performance and energy efficiency.
