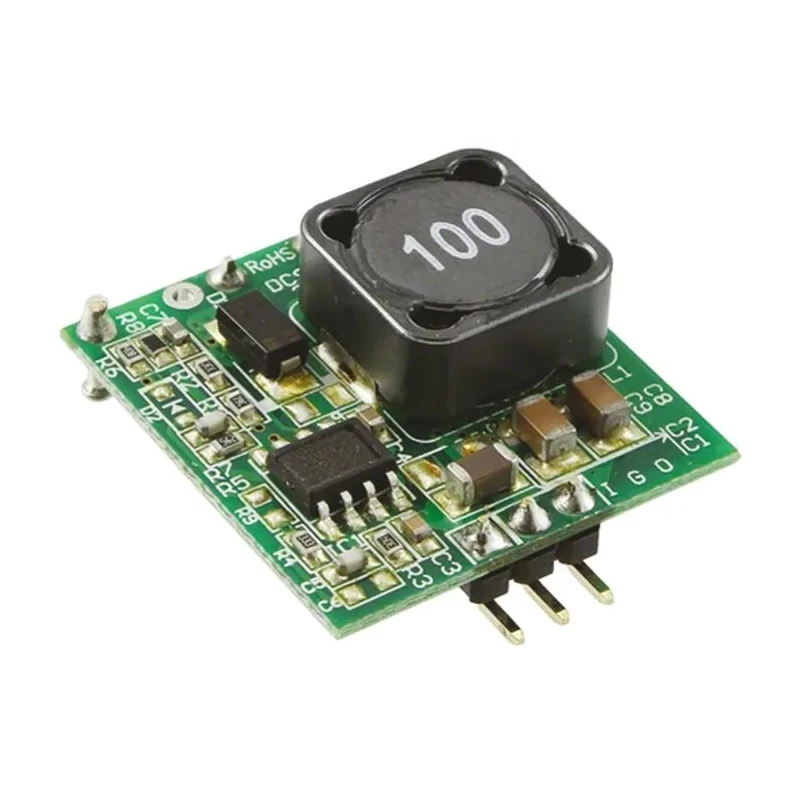

Recom DC/DC Converter 3.3V Output, 1A, Screw Mount, Surface Mount, -40°C to 85°C R-78T3.3-1.0/AC-TRAY

Free Delivery in India | Lowest Global Shipping Charges

Recom DC/DC Converter 3.3V Output, 1A, Screw Mount, Surface Mount, -40°C to 85°C R-78T3.3-1.0/AC-TRAY

Name: Recom DC/DC Converter 3.3V Output, 1A, Screw Mount, Surface Mount, -40°C to 85°C R-78T3.3-1.0/AC-TRAY
Brand: Recom
SKU: 375162
Price: 20.22 USD
Availability: InStock



Category DC/DC Converter Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Efficiency	88%
Length	23mm
Model	R-78T3.3-1.0/AC-TRAY
Depth	10mm
Gross Weight	4.5g
Width	25mm
Mount Type	Screw, Surface
Series	R78-T
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	367000h
Number of outputs	1
Ripple and Noise	100mV Pk-Pk
Maximum Input Voltage	3.3V dc
Output Voltage	3.3 V
Minimum Input Voltage	7V dc
Output Voltage 1	3.3V dc
Output Current 1	1A

Key Features

Compact SIP package with length 23mm, width 25mm, and depth 10mm for space-saving installation.
High efficiency of 88% ensures minimal energy loss during operation.
Wide operating temperature range from -40°C to 85°C supports harsh industrial environments.
Screw and surface mount type suitable for various PCB assembly methods.
Low ripple and noise output with 100mV peak-to-peak ensures stable power supply.
Single output with MTBF of 367,000 hours provides reliable long-term performance.
RoHS compliant and manufactured in Taiwan, Province Of China.

Product Description

Recom R-78T3.3-1.0/AC-TRAY DC/DC Converter is a high-performance single output switching regulator designed to efficiently convert input voltages ranging from 7V to 42V down to a regulated 3.3V output at 1A current with a compact footprint. The SIP package dimensions of 23mm length, 25mm width, and 10mm depth allow for integration in space-constrained applications.

This DC/DC converter exhibits an efficiency of 88%, significantly reducing energy dissipation and heat generation, which eliminates the need for heatsinks or cooling fans in most applications. Its robust operation over a temperature range of -40°C to 85°C makes it suitable for demanding industrial, commercial, and portable battery-powered devices.

The device features screw and surface mount types, facilitating easy PCB assembly and secure mounting. Low output ripple and noise of 100mV peak-to-peak ensures stable power delivery for sensitive electronic circuits. The R-78T series is designed with industry standard pin-outs and includes short circuit protection, 1.5A start-up overload capacity, and fixed switching frequency at 350kHz with shielded magnetics.

Compact SIP package for space-efficient design. High efficiency up to 88% reduces power loss. Wide input voltage range from 7V to 42V. Operating temperature range -40°C to 85°C for industrial applications. Low ripple and noise output ensures clean power delivery.

Robust design with short circuit protection and high MTBF. Screw and surface mount options for flexible installation.

This DC/DC converter is ideally suited for industrial controls, instrumentation, telecommunications, automotive electronics, and portable devices where compact size, efficiency, and reliability are critical. Manufactured in Taiwan, it meets stringent quality standards and compliance regulations.
