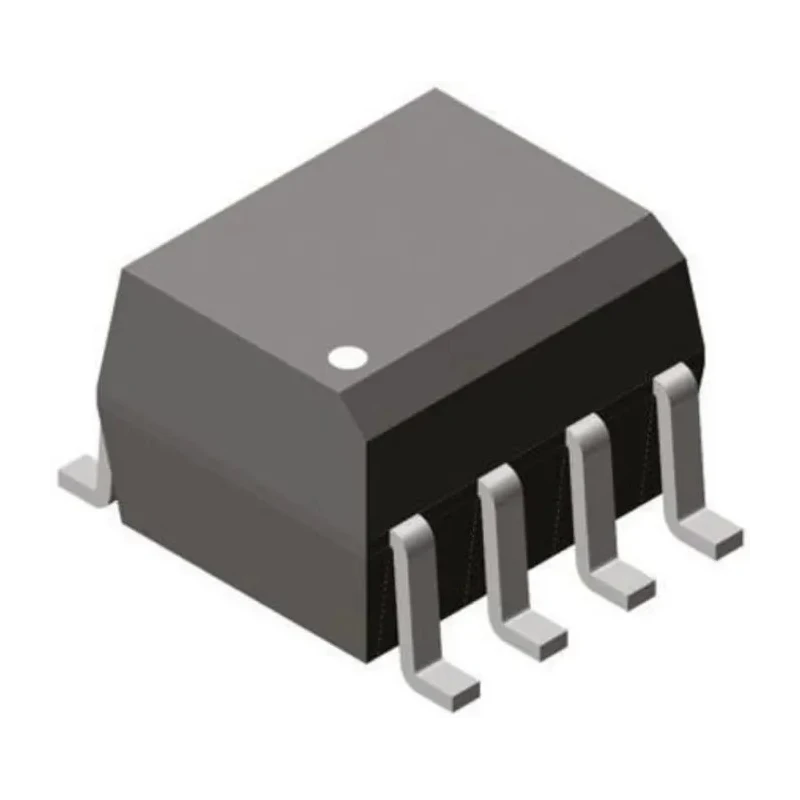

onsemi AC Input 2-Channel Optocoupler Surface Mount Phototransistor Output 8-Pin SOIC MOCD208R2M

Free Delivery in India | Lowest Global Shipping Charges

onsemi AC Input 2-Channel Optocoupler Surface Mount Phototransistor Output 8-Pin SOIC MOCD208R2M

Name: onsemi AC Input 2-Channel Optocoupler Surface Mount Phototransistor Output 8-Pin SOIC MOCD208R2M
Brand: onsemi
SKU: 374471
Price: 0.8 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	Malaysia
Brand	onsemi
Model	MOCD208R2M
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	MOCD
Maximum Operating Temperature	100°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input current	60mA
Number Of Channels	2
Standards/Approvals	EN, IEC, UL
Maximum Forward Voltage	1.55V
Number of Pins	8
Input Current Type	AC
Typical Rise Time	1.6μs
Maximum Current Transfer Ratio	125%
Typical Fall Time	2.2μs

Key Features

Suitable for AC input applications with two channels.
Features a phototransistor output for effective signal isolation.
Maximum forward voltage of 1.55 V ensures efficient operation.
Supports maximum input current of 60 mA within -40°C to 100°C operating range.
Isolation voltage of 2500 Vrms provides high electrical isolation.
Typical rise and fall times of 1.6 μs and 2.2 μs respectively for fast switching.
Complies with EN, IEC, and UL standards for quality assurance.
Packaged as Tape & Reel for easy automated assembly.

Product Description

onsemi MOCD208R2M is an AC input optocoupler designed for industrial and electronic component applications. This device features two channels with phototransistor output and comes in an 8-pin SOIC surface mount package, suitable for compact PCB designs that demand reliable electrical isolation and signal transmission.

This optocoupler is designed to handle a maximum forward voltage of 1.55 V and a maximum input current of 60 mA, operating reliably within temperature extremes from -40°C to 100°C. The device isolates circuits with an isolation voltage rated at 2500 Vrms, making it ideal for protecting sensitive components from high voltages.

The fast switching times, with typical rise and fall times of 1.6 μs and 2.2 μs respectively, ensure efficient data transfer and reliable performance in industrial and electronic control systems. Additionally, the MOCD208R2M meets stringent EN, IEC, and UL safety and performance standards, providing assurance for quality and safety compliance.

Packaged in Tape & Reel format, the MOCD208R2M is optimized for high-volume automated assembly processes, improving manufacturing efficiency. It is manufactured in Malaysia, reflecting onsemi's high-quality production standards.

AC input compatibility with two optically isolated channels. Phototransistor output for signal processing. Compact 8-pin SOIC surface mount package. Max forward voltage of 1.55 V and input current up to 60 mA. Wide operating temperature range from -40°C to 100°C.

High isolation voltage of 2500 Vrms for circuit protection. Fast switching times for industrial applications. Compliance with EN, IEC, and UL certifications. Packaged in Tape & Reel for automated assembly. Manufactured in Malaysia ensuring quality assurance.

This optocoupler is ideal for use in industrial controls, power supply systems, automation, and other applications requiring robust electrical isolation. Explore similar products in the Optocoupler category on EnvMart to find compatible components for your projects.
