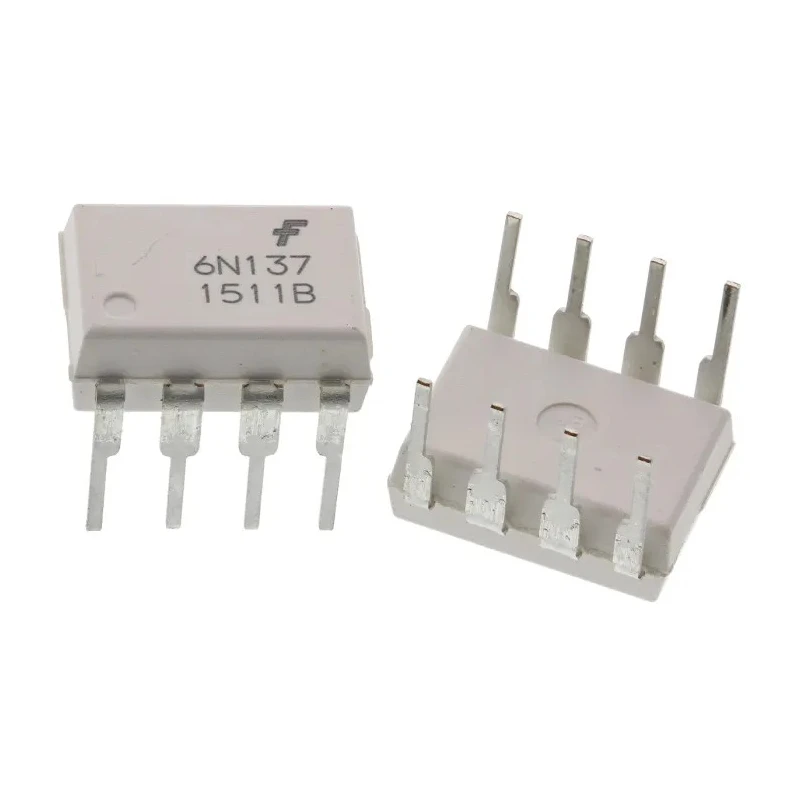

onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 1.8V Max Forward Voltage 6N137M

Free Delivery in India | Lowest Global Shipping Charges

onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 1.8V Max Forward Voltage 6N137M

Name: onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 1.8V Max Forward Voltage 6N137M
Brand: onsemi
SKU: 374124
Price: 1.8 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	Thailand
Brand	onsemi
Model	6N137M
Packaging	Tape & Reel
Mount Type	Through Hole
Series	6N137
Maximum Operating Temperature	100°C
Package Type	MDIP
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	DIN-EN/IEC60747-5-2 (VDE), UL Recognized (File E90700,Vol. 2)
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	30ns
Typical Fall Time	10ns

Key Features

Maximum forward voltage rating of 1.8 volts to ensure efficient input operation.
Designed for DC input current type with a maximum input current of 50 mA.
Typical rise and fall times of 30 ns and 10 ns respectively for fast switching applications.
Reliable isolation voltage rating of 5 kVrms for signal isolation and protection.
Operating temperature range from -40°C to 100°C suitable for harsh industrial environments.
Complies with DIN-EN/IEC60747-5-2 (VDE) standard and UL recognition for quality assurance.
Available in tape and reel packaging for automated assembly processes.
Manufactured in Thailand ensuring high quality and traceability.

Product Description

onsemi 6N137M DC Input Optocoupler is engineered for reliable signal transmission with excellent isolation characteristics in industrial and electronic applications. This device is packaged in an 8-pin Medium Dual Inline Package (MDIP) intended for through-hole mounting on printed circuit boards.

The optocoupler features a single channel with a maximum forward voltage of 1.8 volts. It supports DC input current up to 50 mA, making it suitable for low power input signals. The logic output allows direct interfacing with digital circuits with high speed switching performance, characterized by typical rise and fall times of 30 ns and 10 ns respectively.

This component is compliant with industry standards DIN-EN/IEC60747-5-2 (VDE) and carries UL recognition, ensuring dependable operation and safety in industrial automation, control systems, and power electronics.

The isolation voltage of 5 kVrms provides robust electrical isolation between input and output circuits, protecting sensitive electronics from voltage spikes and surges. The device is designed to operate within a temperature range from -40°C to 100°C, making it resilient for use in harsh environments including industrial HVAC systems, manufacturing equipment, and laboratory instrumentation.

Packaging in tape and reel format is ideal for high volume manufacturing and automated assembly, enhancing production efficiency. This model 6N137M by onsemi is manufactured in Thailand to meet stringent quality standards.

Maximum forward voltage: 1.8V ensures efficient input performance. Single channel with DC input current type optimizes digital interfacing. Fast switching with typical rise time of 30 ns and fall time of 10 ns. Isolation voltage rating of 5 kVrms protects electronic systems.

Wide operating temperature range from -40°C to 100°C supports diverse environments. DIN-EN/IEC60747-5-2 and UL certified for industrial compliance. Tape & Reel packaging supports automated manufacturing. Manufactured in Thailand ensuring high production standards.

Suitable for industrial automation, electronic controls, power management, and laboratory applications requiring galvanic isolation and noise immunity. Browse the Optocoupler category at EnvMart for more components with advanced isolation solutions.
