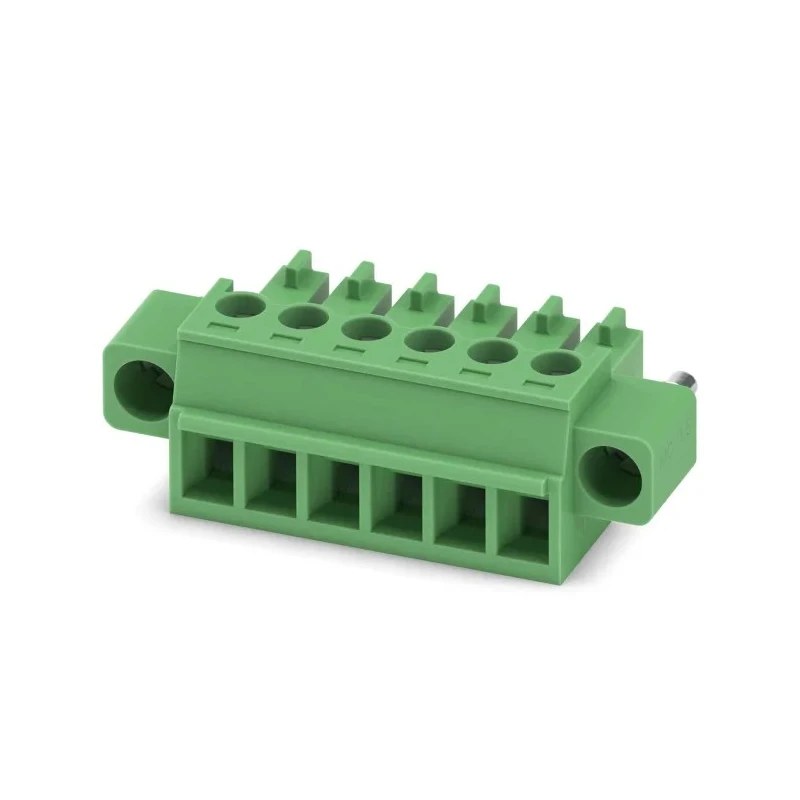

Phoenix Contact Pluggable Terminal Block MC 1.5/6-STF-3.81 Series, 6-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1827745

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block MC 1.5/6-STF-3.81 Series, 6-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1827745

Name: Phoenix Contact Pluggable Terminal Block MC 1.5/6-STF-3.81 Series, 6-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1827745
Brand: PHOENIX CONTACT
SKU: 374011
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	33.25mm
Model	1827745
Depth	11.1mm
Width	16.1mm
Housing Material	Polyamide
Series	MC 1.5/6-STF-3.81
Number of Rows	1
Pitch	3.81mm
Standards/Approvals	RoHS
Number of Contacts	6
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw

Key Features

The terminal block supports a rated voltage of 320 V and current up to 8 A.
Constructed with a durable polyamide housing and green color for easy identification.
Facilitates screw wire connection method with a tension sleeve for secure and reliable fastening.
Compatible with wire sizes from 28 AWG (0.14 mm²) to 16 AWG (1.5 mm²).
The connector features a female gender and straight orientation for seamless PCB integration.
Compact dimensions with a length of 33.25 mm, width of 16.1 mm, and depth of 11.1 mm.
Operates reliably between -40°C to +70°C, complying with RoHS standards.
Ideal for safe transfer of data, signals, and power in various industrial and laboratory electronic assemblies.

Product Description

Phoenix Contact 1827745 is a high-quality Pluggable Terminal Block from the MC 1.5/6-STF-3.81 series designed for secure and efficient PCB connections in industrial electronics.

This product features 6 contacts arranged in a single row with a 3.81 mm pitch, suitable for current ratings of up to 8 A and voltage up to 320 V. The housing is made of polyamide, providing durability and electrical insulation with a green finish for visibility.

The terminal block employs a screw connection method with a tension sleeve to prevent loosening in environments with vibration, enhancing the reliability of electrical circuits. It supports wire sizes ranging from 28 AWG to 16 AWG, accommodating a broad range of cabling needs.

Its compact dimensions - 33.25 mm length, 16.1 mm width, and 11.1 mm depth - allow it to fit in tight PCB layouts, standing only 8 mm above the board surface. The connector is female and oriented straight to facilitate straightforward wire entry and connection.

Operating temperature range from -40°C to +70°C ensures excellent performance in diverse industrial, laboratory, manufacturing, and automation scenarios. The terminal block adheres to RoHS compliance for environmental and safety standards.

The design uses copper alloy contacts with tin plating for optimal conductivity and corrosion resistance. Suitable for transfer of signals, power, and data in control panels, instrumentation, and electronic equipment. Accessories such as marker cards and cable housings are available to enhance identification and cable management.

This terminal block, manufactured in Germany, provides a reliable and compact solution for electrical connection demands in commercial and industrial sectors. Explore more connectors and terminal blocks in the Electronics & Electricals category on EnvMart for your precision assembly needs.
