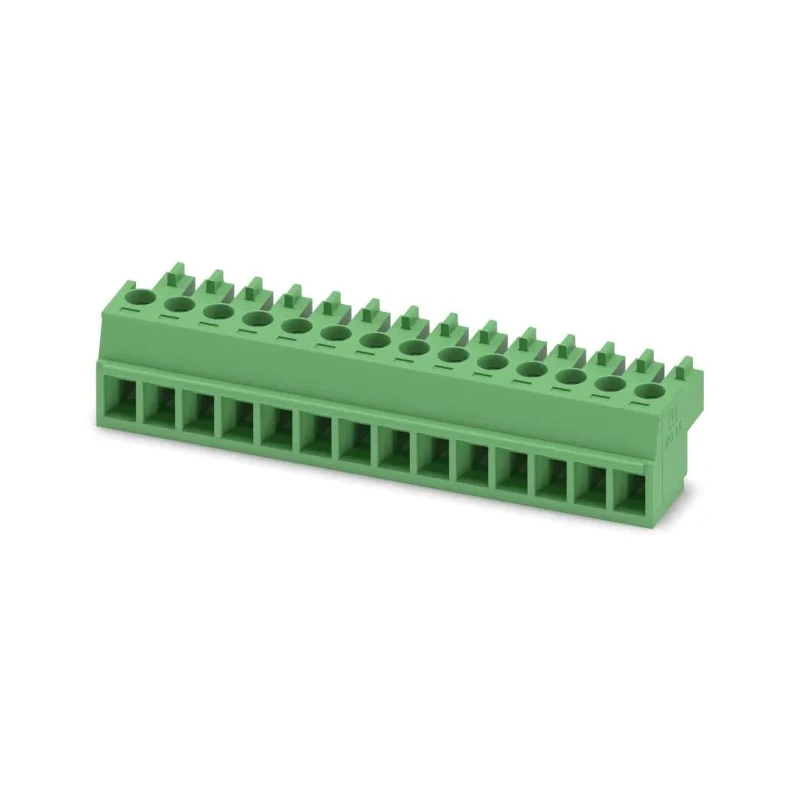

Phoenix Contact MC 1.5/14-ST-3.81 Series Pluggable Terminal Block, 14-Contact, 3.81 mm Pitch, 1 Row 1803691

Phoenix Contact 1803691 Pluggable Terminal Block belongs to the MC 1.5/14-ST-3.81 series and offers a reliable and compact connector solution for electronic applications requiring 14-contact connections with a 3.81 mm pitch in a single row. Operating at up to 160 V and 8A current rating, it supports efficient transmission of data, signals, and power directly to printed circuit boards (PCBs).

The terminal block features a polyamide housing that delivers exceptional durability and mechanical strength. It employs a screw connection with a tension sleeve that helps prevent wire loosening under conditions of vibration, ensuring a secure and safe electrical connection. The wire connection supports sizes ranging from 0.14 mm² to 1.5 mm² and accommodates both AWG 28 to AWG 16 wires.

This connector uses a female straight orientation design, optimizing PCB space with its height of only 8 mm above the board and total length of 54.13 mm. Its compact size and green-colored housing assist in clear identification and efficient routing on PCBs. Manufactured in Germany, this terminal block meets rigorous quality and durability criteria, making it suitable for use in industrial automation, power distribution, electronic circuit assembly, and control systems.

The MC 1.5/14-ST-3.81 series is well-established for providing high reliability due to its copper alloy contact material with tin-plated terminal points, supporting operating temperatures from -40°C to +70°C. It is ideal for applications involving vibration and thermal stress, including manufacturing equipment, laboratory instrumentation, HVAC controls, and electrical cabinets.

Additional accessories such as marker cards and cable housings are available to complement this terminal block series for enhanced cable management and identification. This product is a key component for engineers and technicians seeking dependable, compact pluggable connectors for PCB installations.

Supports current rating up to 8A ensuring effective power transfer. Accommodates wire sizes from 0.14 mm² to 1.5 mm² for flexible wiring options. Constructed with durable polyamide housing providing long-term mechanical stability.

Screw connection with tension sleeve prevents wire loosening under vibration. Compact dimensions allow horizontal wire entry with 11.1 mm depth and 54.13 mm length. Green color housing facilitates easy component identification on boards.

Female connector gender with straight orientation for versatile PCB integration. Operating temperature range from -40°C to +70°C suits industrial environments. Manufactured in Germany maintaining high quality standards.
