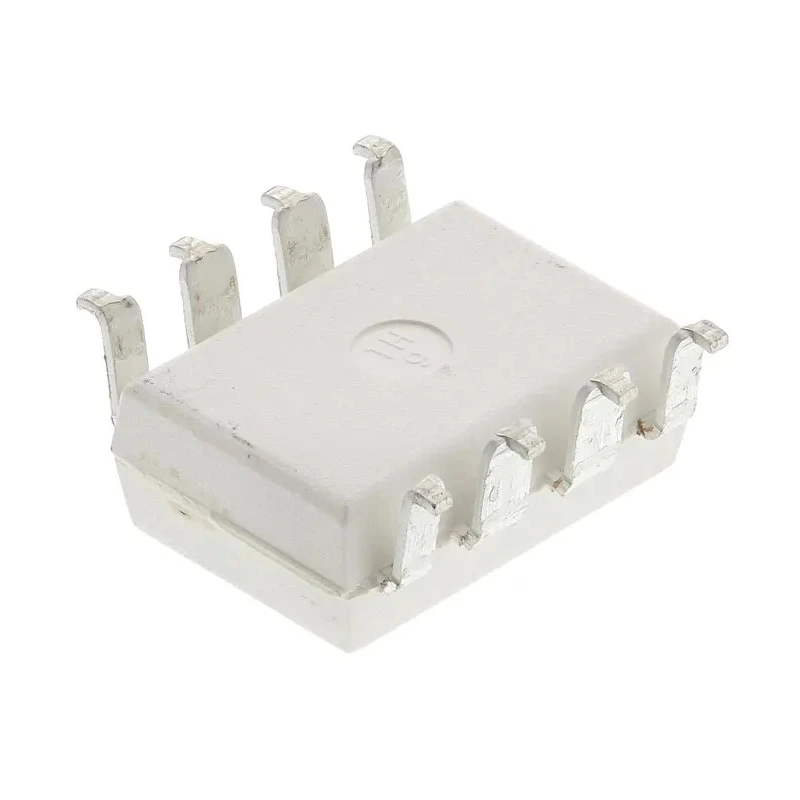

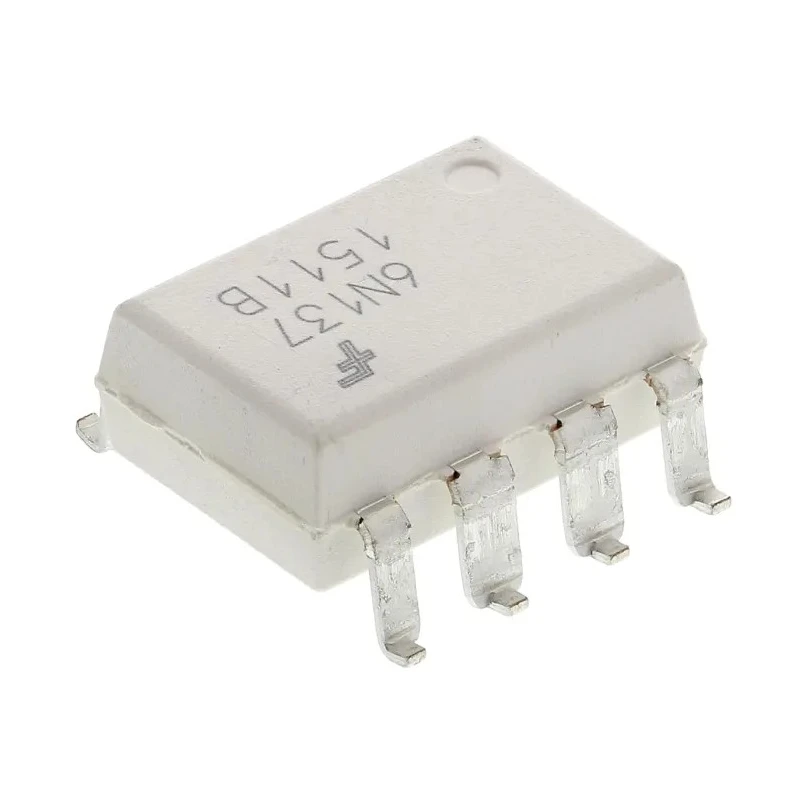

onsemi DC Input Optocoupler Surface Mount 8-Pin DIP Package 1 Channel, 6N137SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | 6N137SM |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | 6N137 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 1 |
| Standards/Approvals | DIN-EN/IEC60747-5-2 (VDE), UL Recognised |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 30ns |
| Typical Fall Time | 10ns |
Key Features
- This optocoupler features a maximum forward voltage of 1.8 volts and operates with DC input current.
- The device includes a single channel for opto-isolation applications.
- The standard DIP package with 8 pins supports surface mounting.
- Typical rise time is 30 nanoseconds and fall time is 10 nanoseconds, enabling fast data transmission.
- It supports a maximum input current of 30 milliamps and logic output is provided.
- The isolation voltage is rated at 5000 Vrms, ensuring strong electrical isolation.
- Designed to operate in temperature range from -40 degrees Celsius to 100 degrees Celsius suitable for harsh environments.
- Complies with DIN-EN/IEC60747-5-2 (VDE) and is UL recognized for safety standards.
Product Description
onsemi 6N137SM DC Input Optocoupler is a reliable surface mount device in an 8-pin DIP package designed for electronic isolation applications. Featuring a single channel and DC input current type, this optocoupler provides effective signal transmission with high isolation capabilities.
The maximum forward voltage of the LED input is 1.8 volts, with a maximum input current of 30 milliamps, supporting a range of low power circuit applications. The device's typical rise and fall times of 30ns and 10ns respectively enable fast switching performance, crucial in digital communication and control systems.
Isolation voltage rating of 5000 Vrms ensures protection between input and output, making it suitable for industrial, HVAC, manufacturing, and laboratory environments requiring electrical safety.
Operating temperature range from -40°C to 100°C allows stable function in various environmental conditions. Certified under DIN-EN/IEC60747-5-2 (VDE) and UL recognized, the 6N137SM upholds international quality and safety standards.
This Optocoupler provides a high speed logic output interface suitable for microcontroller isolation. Surface mount assembly in 8-pin DIP facilitates easy integration in circuit boards. It is packaged in tape and reel for efficient automated production processes.
This product is ideal for industrial automation, instrumentation, power supplies, and telecommunication applications where signal isolation is critical. Explore EnvMart’s Electronics Components category to find a wide range of semiconductor and optoelectronic components like onsemi 6N137SM.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the 6N137SM optocoupler is 1.8 volts.
The isolation voltage rating for the 6N137SM is 5000 Vrms, ensuring strong electrical isolation between input and output.
The typical rise time is 30 nanoseconds and the fall time is 10 nanoseconds, enabling fast switching performance.
This model operates within a temperature range of -40 degrees Celsius to 100 degrees Celsius.
The 6N137SM features a single channel for opto-isolation applications.
The maximum input current for the 6N137SM is 30 milliamps.
It is packaged in tape and reel for efficient automated production processes.
The 6N137SM complies with DIN-EN/IEC60747-5-2 (VDE) and is UL recognized for safety standards.
This optocoupler supports DC input current.
The mount type for this model is surface mount, with an 8-pin DIP package.
This optocoupler is suitable for applications in industrial automation, instrumentation, power supplies, and telecommunications where signal isolation is critical.
The country of origin for the 6N137SM is India.
