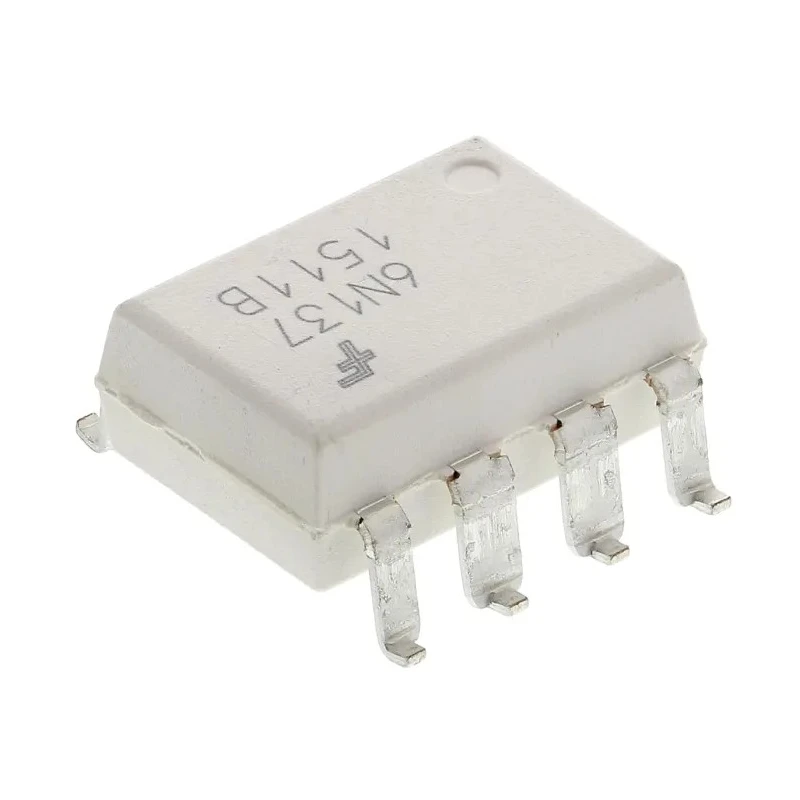

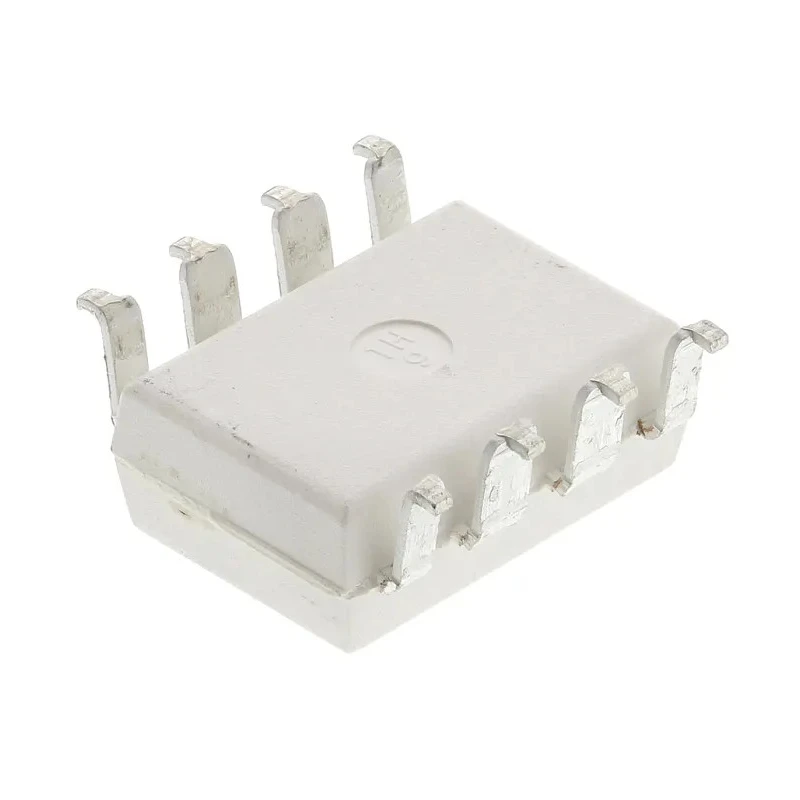

onsemi DC Input Surface Mount 8-Pin DIP Optocoupler 1 Channel 6N137SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | 6N137SM |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | 6N137 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 1 |
| Standards/Approvals | DIN-EN/IEC60747-5-2 (VDE), UL Recognised |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 30ns |
| Typical Fall Time | 10ns |
Key Features
- Features a single channel optocoupler suitable for DC input applications.
- Maximum forward voltage of 1.8V ensures low power consumption.
- Typical rise time is 30ns, and fall time is 10ns for fast switching.
- Supports a maximum input current of 30mA with DC current type input.
- High isolation voltage of 5000Vrms provides excellent signal isolation.
- Operating temperature ranges from -40°C to 100°C for reliable performance.
- Comes in a DIP package type with 8 pins and surface mount mount type.
- Packaged in tape and reel for efficient automated assembly.
Product Description
onsemi 6N137SM is a high-performance optocoupler featuring a DC input, surface mount type, and an 8-pin DIP package. Designed for electronic circuit isolation, it provides a logic output signal with excellent noise immunity in industrial and consumer applications.
This optocoupler supports a single channel operation with a low maximum forward voltage of 1.8V, reducing signal power consumption. Its typical rise and fall times are 30ns and 10ns respectively, ensuring fast and reliable signal transmission.
The device handles a maximum input current of 30mA DC and has an isolation voltage rating of 5000Vrms, making it suitable for electrical isolation between high voltage and low voltage circuits. The operating temperature range spans from -40°C to 100°C, allowing usage in harsh environmental conditions without compromising performance.
Its 8-pin DIP package and surface mount mount type facilitate integration into densely packed circuit boards. The product is supplied in a tape and reel packaging ideal for automated pick-and-place machinery during manufacturing.
Single channel optocoupler for DC input applications. Low maximum forward voltage of 1.8V for efficient operation. Fast switching with 30ns rise time and 10ns fall time. Maximum input current rating of 30mA DC. Robust isolation voltage of 5000Vrms ensuring signal integrity.
Wide operating temperature range from -40°C to 100°C. Standard 8-pin DIP package, surface mount compatible. Packaging suitable for automated assembly processes. Complies with DIN-EN/IEC60747-5-2 (VDE) and UL Recognised standards.
This optocoupler is ideal for use in industrial automation, instrumentation, power supply circuits, and signal isolation tasks in electronic designs requiring fast and reliable switching.
Explore additional onsemi products and Optocoupler solutions at EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 30mA DC.
It has a robust isolation voltage rating of 5000Vrms, ensuring effective signal integrity.
The typical rise time is 30ns and the fall time is 10ns, allowing for fast and reliable signal transmission.
The operating temperature range spans from -40°C to 100°C, suitable for harsh environmental conditions.
It is packaged in tape and reel, which is ideal for automated assembly processes.
This model supports a single channel operation.
The maximum forward voltage is 1.8V, which helps in reducing power consumption.
This optocoupler supports a DC current type input.
It features a surface mount type, making it suitable for integration into densely packed circuit boards.
It complies with DIN-EN/IEC60747-5-2 (VDE) and is UL Recognised.
This model has 8 pins, conforming to the DIP package type.
It is suitable for industrial automation, instrumentation, power supply circuits, and signal isolation tasks in electronic designs.
