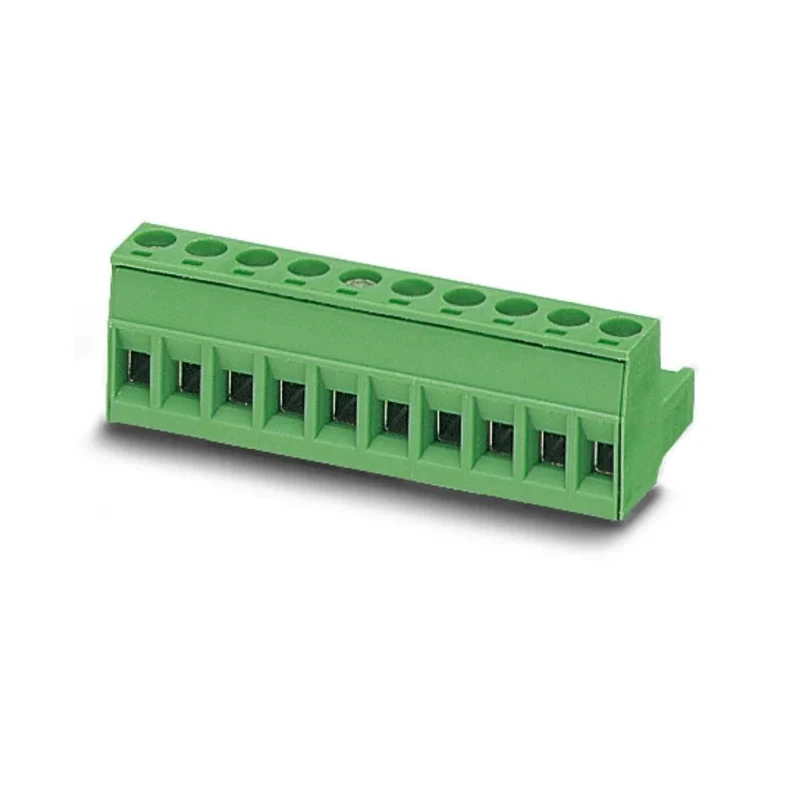

Phoenix Contact MSTB 2.5/10-ST-5.08 BD:1-10 Series Pluggable Terminal Block, 10-Contact, 5.08 mm Pitch, 1 Row 1758403

Phoenix Contact 1758403 MSTB 2.5/10-ST-5.08 BD:1-10 Series Pluggable Terminal Block is engineered for secure and reliable PCB connections in electronic assemblies. Rated at 12A current and 320V voltage, this terminal block features a 10-contact layout with a 5.08 mm pitch and a single row, providing efficient wiring density for power connectors.

Its polyamide housing is robust, flame-retardant, and resistant to corrosion and abrasion, ensuring long service life in demanding industrial environments. The screw connection with a tension sleeve guarantees maximum contact force to minimize temperature rises and prevent fire risks.

The integrated test points facilitate quick and safe measurement access without removing conductors or accessories, streamlining maintenance and inspection processes. Wire accommodation ranges from 0.2 mm² (24 AWG) up to 2.5 mm² (12 AWG), supporting a variety of wire gauges.

With compact dimensions of 18.3 mm length, 45.72 mm width, and 15 mm depth, this block fits well in tight PCB layouts. The design includes female connector gender with straight orientation for easy, plug-in installation as part of the CLASSIC COMBICON system.

Certified to meet VDE, CSA, and EAC standards, this terminal block is suitable for applications in electronics, industrial automation, and power connection contexts requiring reliable and semi-permanent wiring solutions.

Features a 10-contact configuration with 5.08 mm pitch for compact installation. Supports a current rating of 12A suitable for moderate power applications. Accommodates wire sizes from 0.2 mm² to 2.5 mm² with screw connection and tension sleeve.

Constructed with durable polyamide housing for corrosion and abrasion resistance. Compact dimensions of 18.3 mm length, 45.72 mm width, and 15 mm depth for space-saving layouts. Incorporates integrated test points for easy measurement without disturbing wiring.

Designed with a female connector gender and straight orientation for streamlined pcb mounting. Voltage rating of 320V with compliance to VDE, CSA, and EAC standards ensuring operational safety. Ideal for electronic, industrial automation, and PCB power connector applications.

This terminal block is part of Phoenix Contact's CLASSIC COMBICON product line, recognized for reliable screw connection and user-friendly design in industrial and electronic component applications. Browse other Pluggable Terminal Blocks and connectors in EnvMart's Electronics & Electricals category for complementary products and solutions.
