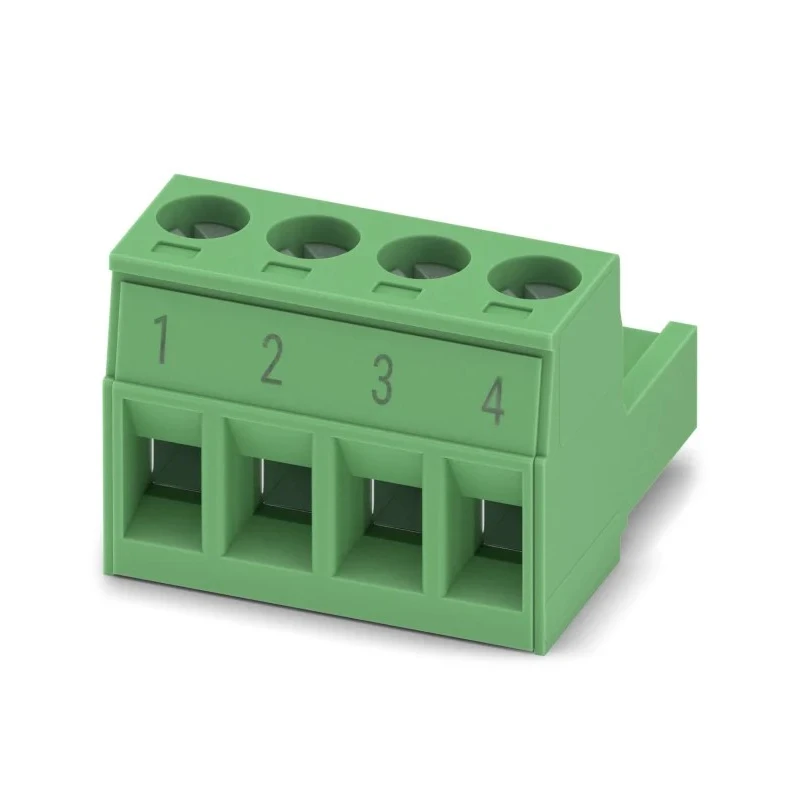

Phoenix Contact Pluggable Terminal Block MSTB 2.5/4-ST BD:1-4, 4-Contact, 5 mm Pitch, 320V, Polyamide Housing, Screw 1751086

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block MSTB 2.5/4-ST BD:1-4, 4-Contact, 5 mm Pitch, 320V, Polyamide Housing, Screw 1751086

Name: Phoenix Contact Pluggable Terminal Block MSTB 2.5/4-ST BD:1-4, 4-Contact, 5 mm Pitch, 320V, Polyamide Housing, Screw 1751086
Brand: PHOENIX CONTACT
SKU: 373598
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	18.2mm
Model	1751086
Depth	20mm
Width	15mm
Housing Material	Polyamide
Series	MSTB 2.5/4-ST BD:1-4
Number of Rows	1
Pitch	5mm
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve
SeriesMSTB 2.5/4-ST BD	1-4
Phoenix Contact MSTB 2.5/4-ST BD	1-4 Series Pluggable Terminal Block, 4-Contact, 5 mm Pitch, 1 Row

Key Features

The terminal block features a polyamide housing ensuring durability and electrical insulation.
It supports a current rating of 12A and voltage up to 320V.
The connector employs screw connection with tension sleeve for secure wire retention.
Wire size range supports 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
The design includes a single row and green coloration for easy identification.
Orientation is straight for ease of PCB mounting and wiring.
The compact dimensions of length 18.2 mm, width 15 mm, and depth 20 mm suit space-constrained applications.
Manufactured in Germany to high-quality standards.

Product Description

The Phoenix Contact 1751086 model is a pluggable terminal block from the MSTB 2.5/4-ST BD:1-4 series, specifically designed for industrial and electronic applications requiring secure and versatile electrical connections. This unit features 4 contacts arranged in a single row with a 5 mm pitch that fits neatly on printed circuit boards (PCBs) and other assembly scenarios.

The terminal block housing is constructed from durable polyamide material that ensures excellent electrical insulation and mechanical stability. Its design incorporates a screw connection method with a tension sleeve, providing reliable wire clamping and minimizing temperature rise under load. Rated for 12A current and capable of handling voltages up to 320V, this terminal block suits a broad range of power and signal wiring tasks.

It accommodates wires sized between 0.2 mm² (24 AWG) and 2.5 mm² (12 AWG), making it compatible with various wiring standards. The straight orientation allows for easy PCB mounting, and the green color coding simplifies identification during installation and maintenance.

Compact with dimensions 18.2 mm in length, 15 mm in width, and 20 mm in depth, it is suitable for applications in industrial automation, electronic assembly, control panels, and communication equipment. The integrated double steel spring ensures stable contact force and prevents power fluctuations, enhancing temperature stability and connection reliability.

Made in Germany, this terminal block adheres to rigorous quality and manufacturing standards, making it an ideal choice for professionals seeking reliable pluggable terminal block solutions.

The terminal block offers 4-contact points for versatile wiring integration. 5 mm pitch and single row configuration fit multiple PCB design layouts. Polyamide housing ensures durability and electrical safety. Screw connection method provides secure and maintenance-friendly wiring.

Supports wire sizes from 0.2 mm² to 2.5 mm² for flexible application. Rated for 12A current and 320V voltage for various electrical circuits. Compact size: length 18.2 mm, width 15 mm, depth 20 mm. Green coloration facilitates easy identification in assemblies.

Manufactured with quality assurance in Germany.

This Phoenix Contact MSTB 2.5/4-ST BD:1-4 pluggable terminal block is ideal for use in industrial automation systems, electronic manufacturing, control panels, and other applications requiring robust and reliable terminal connections. Explore more options in Pluggable Terminal Blocks and connectors at EnvMart for comprehensive industrial solutions.
