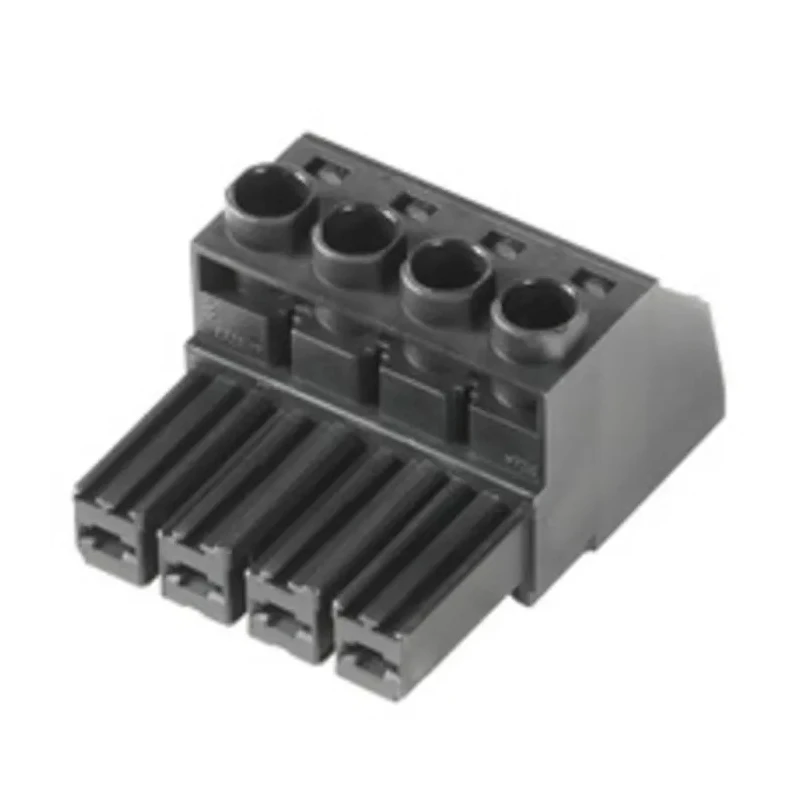

Weidmüller BVZ Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 40A Current, 1kV Voltage, Copper 1929950000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller BVZ Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 40A Current, 1kV Voltage, Copper 1929950000

Name: Weidmüller BVZ Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 40A Current, 1kV Voltage, Copper 1929950000
Brand: Weidmuller
SKU: 420605
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand Weidmuller Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Weidmüller
Colour	Black
Orientation	Right Angle
Current	40A
Length	26.86mm
Depth	23.1mm
Width	41.2mm
Housing Material	Copper Alloy, Polyamide Fibreglass
Series	BVZ
Number of Rows	1
Pitch	7.62mm
Standards/Approvals	RoHS
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	10mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	8AWG
Wire Connection Method	Screw

Key Features

Rated for a maximum current of 40A providing reliable conductivity.
Operates at a voltage rating of up to 1kV ensuring safe electrical isolation.
Constructed with a copper alloy and polyamide fibreglass housing for durability.
Features right angle orientation for space-saving installation.
Utilizes screw connection method for secure wire fastening.
Compatible with wire sizes from 0.2 mm² to 10 mm² and AWG 24 to 8.
Designed as a female connector with 180° outlet direction ensuring safety.
Compact dimensions of width 41.2mm, depth 23.1mm and length 26.86mm optimize panel space.

Product Description

Weidmüller 1929950000 BVZ Series Pluggable Terminal Block is a high-performance electrical connection component designed to facilitate reliable and safe wire termination in industrial, automation, and electronic applications. This 4-contact terminal block features a 7.62 mm pitch and a single row layout, optimized for efficient space utilization and wiring configuration.

Constructed with a robust housing combining copper alloy and polyamide fibreglass, it ensures excellent electrical conductivity alongside mechanical resilience and heat resistance. The terminal block supports a current carrying capacity of 40A and a voltage rating of 1kV, meeting stringent industry demands for safety and performance.

The female connector provides a right angle orientation with a 180° outlet direction, utilizing a screw connection method enabling secure and stable wire clamping ranging from minimum 0.2 mm² to maximum 10 mm² wire gauges, supporting AWG sizes from 24 to 8. This design maximizes operational reliability and simplifies installation in tight spaces.

Its dimensions of 41.2mm width, 23.1mm depth, and 26.86mm length make it ideal for compact mounting configurations. The mating profile ensures touch-safety exceeding 3 mm clearance while preventing incorrect plug-in connections through unique coding, enhancing user safety during setup and maintenance.

Complying with RoHS standards, this terminal block fits well in environmentally conscious industrial and manufacturing environments. Available accessories include flange mounting options for versatile assembly.

Rated maximum current: 40A. Voltage rating: 1kV. Pitch: 7.62 mm. Number of contacts: 4. Housing: copper alloy and polyamide fibreglass. Wire connection method: screw clamp. Orientation: right angle. Wire size compatibility: 0.2 mm² to 10 mm² (AWG 24 - 8).

RoHS compliant. Dimensions (W×D×L): 41.2mm × 23.1mm × 26.86mm.

This Pluggable Terminal Block is suitable for use in industrial automation, electronic circuits, control panels, and power distribution systems requiring reliable, high-quality electrical cabling solutions with a focus on safety and ease of maintenance.
