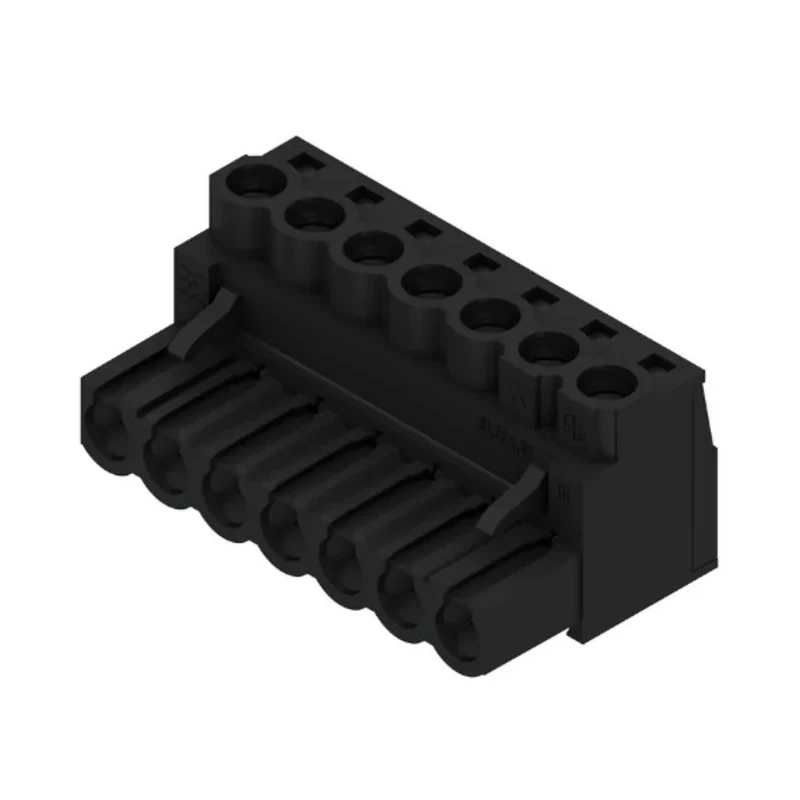

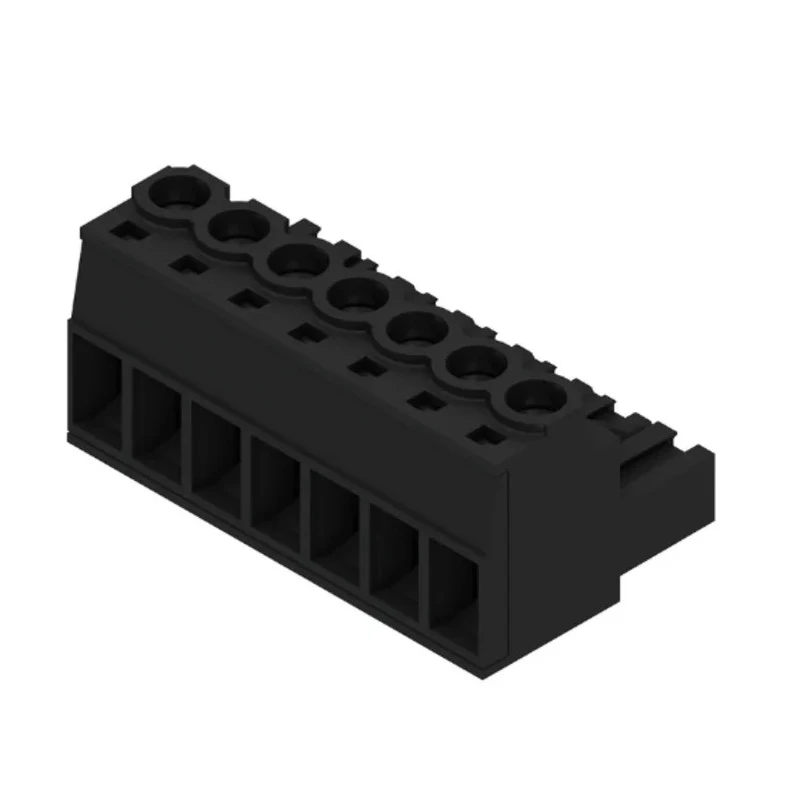

Weidmüller BL Series Pluggable Terminal Block 7-Contact 5.08 mm Pitch 1 Row 20A 400V Copper Alloy Housing 1943860000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller BL Series Pluggable Terminal Block 7-Contact 5.08 mm Pitch 1 Row 20A 400V Copper Alloy Housing 1943860000

Name: Weidmüller BL Series Pluggable Terminal Block 7-Contact 5.08 mm Pitch 1 Row 20A 400V Copper Alloy Housing 1943860000
Brand: Weidmuller
SKU: 420632
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Weidmüller
Colour	Black
Orientation	Right Angle
Current	20A
Length	37.48mm
Depth	16mm
Width	20.1mm
Housing Material	Copper Alloy
Series	BL
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	RoHS
Number of Contacts	7
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	4mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

Constructed with copper alloy housing ensuring high conductivity.
Features right angle orientation for optimized space usage.
Screw wire connection method provides secure and reliable terminations.
Supports wire sizes from 0.2 mm² (26 AWG) up to 4 mm² (12 AWG).
Durable black PBT material offers thermal and chemical resistance.
Meets RoHS standards for environmental compliance.
Designed for through hole mounting in electrical panels and automation systems.

Product Description

Weidmüller 1943860000 BL Series Pluggable Terminal Block features 7 contacts arranged in a single row with a 5.08 mm pitch. Rated for 20A current and a maximum voltage of 400V, this robust connector is engineered for diverse electrical applications requiring secure, efficient connections.

The terminal block's housing is made from copper alloy, enhancing electrical conductivity, while the black PBT polymer provides excellent thermal, mechanical, and chemical resistance. Its right angle orientation supports installation in compact spaces, optimizing panel layout efficiency.

The device uses a screw termination method for reliable wire fastening, compatible with wire sizes ranging from 0.2 mm² (26 AWG) to 4 mm² (12 AWG). Designed for standard through hole mounting, it integrates seamlessly into electrical panels, automation systems, and industrial machinery.

Weidmüller's BL Series terminals comply with RoHS standards, ensuring environmentally safe manufacturing and reduced hazardous substances. The connector's dimensions are 37.48 mm in length, 20.1 mm in width, and 16 mm in depth, making it suitable for precise panel design requirements.

Typical applications include industrial automation, electrical cabinets, machinery connections, and control systems where high current capability and space saving installation are critical.

Constructed with copper alloy housing ensuring high conductivity. Features right angle orientation for optimized space usage. Screw wire connection method provides secure and reliable terminations. Supports wire sizes from 0.2 mm² (26 AWG) up to 4 mm² (12 AWG).

Durable black PBT material offers thermal and chemical resistance. Meets RoHS standards for environmental compliance. Designed for through hole mounting in electrical panels and automation systems. Dimensions: Length 37.48 mm, Width 20.1 mm, Depth 16 mm.

This Weidmüller product is ideal for professional users seeking dependable terminal block solutions within industrial, laboratory, electrical, and manufacturing environments. Explore more from the Weidmüller BL Series and related connector products on EnvMart.
