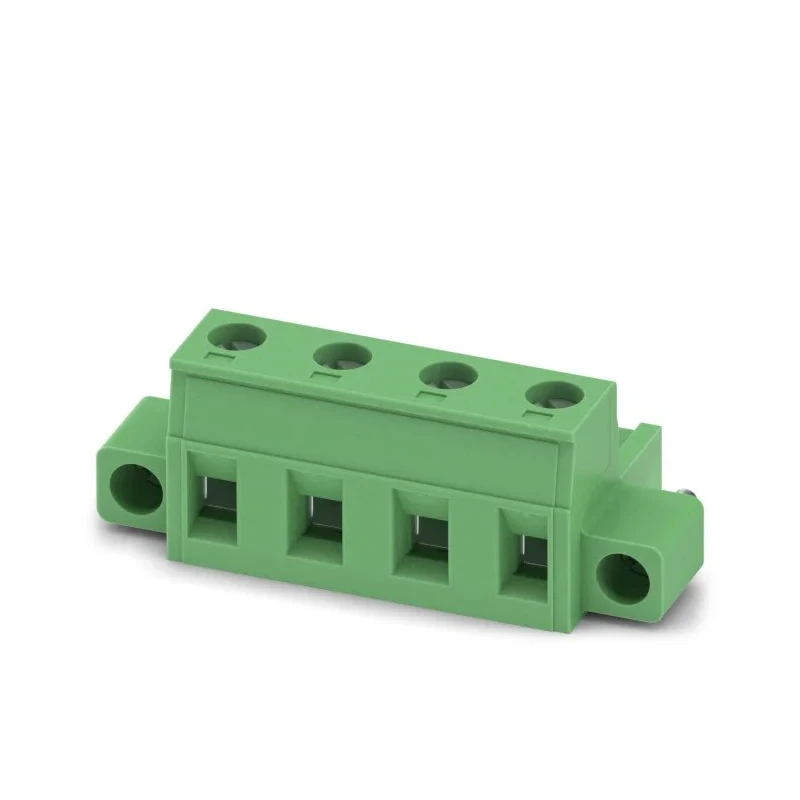

Phoenix Contact GMSTB 2.5/4-STF-7.62 Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 12 A, 1 kV 1858785

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact GMSTB 2.5/4-STF-7.62 Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 12 A, 1 kV 1858785

Name: Phoenix Contact GMSTB 2.5/4-STF-7.62 Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row, 12 A, 1 kV 1858785
Brand: PHOENIX CONTACT
SKU: 420539
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	18.2mm
Model	1858785
Depth	15mm
Width	40.87mm
Housing Material	Polyamide
Series	GMSTB 2.5/4-STF-7.62
Number of Rows	1
Pitch	7.62mm
Standards/Approvals	RoHS
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw
PCB connector, nominal current	12 A, rated voltage (III/2): 630 V, number of positions: 4, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin

Key Features

The terminal block features a polyamide housing with a green finish for durability.
Screw connection method with tension sleeve ensures secure wire termination.
Compatible with minimum wire size 0.2 mm² (24 AWG) up to maximum 2.5 mm² (12 AWG).
Straight orientation simplifies installation on printed circuit boards (PCBs).
Certified RoHS compliant for safe electronic applications.
Compact dimensions measuring 40.87 mm width, 18.2 mm length, and 15 mm depth.
Contact surfaces are tin-plated for reliable conductivity and corrosion resistance.

Product Description

Phoenix Contact 1858785 is a high-quality pluggable terminal block designed for efficient PCB connections in industrial and electronic applications. This 4-contact block features a 7.62 mm pitch and a single row layout, rated for 12 A nominal current and withstands voltages up to 1 kV, making it suitable for a variety of low and medium power circuits.

The terminal block housing is made from robust polyamide material, colored green for easy identification and enhanced durability. It uses a screw connection method with a tension sleeve to provide secure and reliable wiring, accommodating wire sizes from 0.2 mm² to 2.5 mm² (24 to 12 AWG).

Its compact design with dimensions of 40.87 mm in width, 18.2 mm in length, and 15 mm in depth offers space-saving installation on printed circuit boards. The straight orientation facilitates straightforward assembly and wiring management.

This product meets RoHS standards, ensuring compliance with environmental and safety regulations. The tin-plated contact surfaces enhance electrical conductivity and resist corrosion, extending the operational life of the component.

Ideal for use in industrial automation, electrical panels, control cabinets, and electronic manufacturing, this terminal block supports seamless and secure electrical connections, contributing to reliable system performance.

The terminal block features a polyamide housing with a green finish for durability. Screw connection method with tension sleeve ensures secure wire termination. Compatible with minimum wire size 0.2 mm² (24 AWG) up to maximum 2.5 mm² (12 AWG).

Straight orientation simplifies installation on printed circuit boards (PCBs). Certified RoHS compliant for safe electronic applications. Compact dimensions measuring 40.87 mm width, 18.2 mm length, and 15 mm depth. Contact surfaces are tin-plated for reliable conductivity and corrosion resistance.
