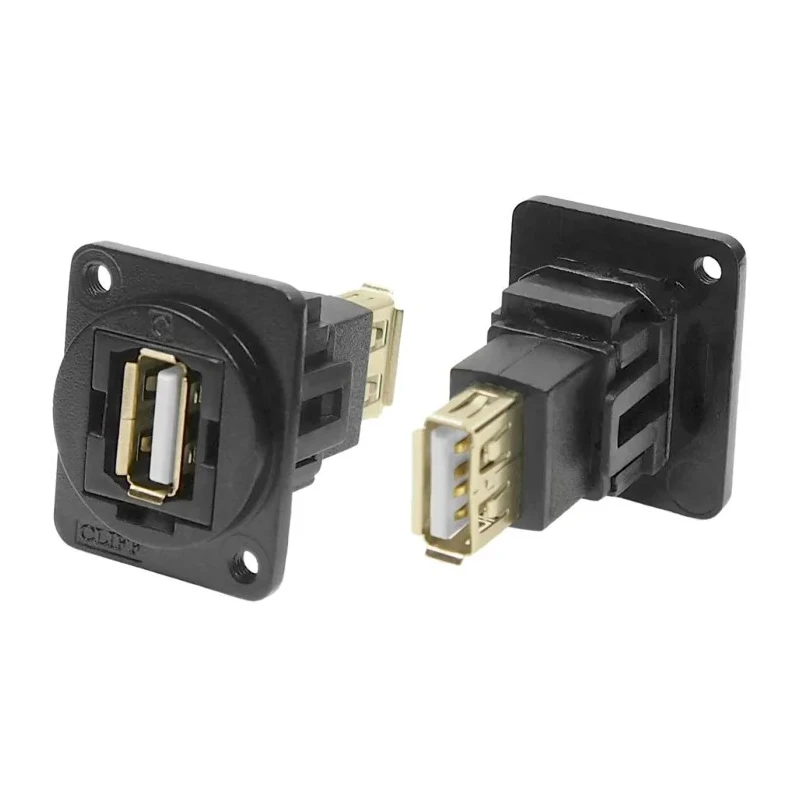

RS PRO USB 2.0 Straight Panel Female/Female 2 Port Type USB Type A to A Connector 30V 1.5A 175-0147

Free Delivery in India | Lowest Global Shipping Charges

RS PRO USB 2.0 Straight Panel Female/Female 2 Port Type USB Type A to A Connector 30V 1.5A 175-0147

Name: RS PRO USB 2.0 Straight Panel Female/Female 2 Port Type USB Type A to A Connector 30V 1.5A 175-0147
Brand: RS PRO
SKU: 420217
Price: 10.07 USD
Availability: InStock



Category USB Connector Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	30V
Brand	RS PRO
Orientation	Straight
Operating Temperature	-20 °C to 50 °C
Current	1.5A
Model	175-0147
Mount Type	Panel
Contact Material	Gold Plated
Series	RS PRO
Number Of Ports	2
Termination Type	Screw
Maximum Operating Temperature	50°C
Insulation resistance	20MΩ min
Frame	Black plated zinc diecast
Minimum Operating Temperature	-20°C
Interfaces	USB2
USB Type	USB Type A to A
Shell	Nickel plated steel
Contact Resistance	50mΩ max
Connector Gender	Female/Female
USB Specification	USB 2.0
Dielectric Withstanding Voltage	500V AC
Insert	ABS UL94 HB
Inner Over-mouldings	PE + PVC

Key Features

Provides panel mount feedthrough connection with a black metal frame for durability.
Designed to fit standard XLR Ø24 mm cut-outs with M3 holes for easy installation.
Supports USB 2.0 specification with a current rating of 1.5 A and voltage rating of 30 V.
Utilizes screw termination with gold-plated contacts ensuring low resistance and reliability.
Operates reliably across a temperature range from -20 °C to 50 °C.
Suitable for use in recording studios, network racking, and custom digital configurations.
Constructed from robust materials including nickel-plated steel shell and black plated zinc diecast frame.
Includes ABS UL94 HB insert and PE + PVC inner over-mouldings for electrical safety.

Product Description

RS PRO 175-0147 is a USB 2.0 feedthrough panel connector featuring female-to-female USB Type A ports within a straight, black metal frame. This connector is engineered for panel mounting with a low rear profile, supporting digital data and audio transmission applications.

Designed to fit standard XLR Ø24 mm cut-outs, installation is facilitated through M3 screw holes without the need for soldering or punch termination. Its robust nickel-plated steel shell and black plated zinc diecast frame ensure mechanical strength and durability even in demanding industrial environments.

The gold-plated contacts deliver excellent conductivity and resistance to corrosion, maintaining reliable signal integrity. The connector supports a voltage rating of 30 V and current rating of 1.5 A while operating effectively between -20 °C to 50 °C, making it suitable for a variety of environments.

Materials including an ABS UL94 HB insert and PE + PVC inner over-mouldings provide electrical insulation and safety compliance. The connector’s compact straight orientation and dual ports allow flexible connectivity options within panels and enclosures.

Panel mount USB 2.0 feedthrough connector with female/female USB Type A ports. Fits standard XLR Ø24 mm panel cut-outs with M3 thread for secure fitting. Gold plated contacts reduce contact resistance for optimal performance.

Supports 1.5 A current and 30 V voltage ratings compliant with USB 2.0 standards. Robust construction with nickel-plated steel and diecast zinc frame. Wide operating temperature range from -20 °C to 50 °C for versatile usage.

ABS insert and PE+PVC over-mouldings enhance electrical safety. Ideal for use in recording studios, network racks, and digital equipment.

This RS PRO connector is manufactured in the United Kingdom, delivering trusted quality and performance. It is a reliable choice for industrial, commercial, and professional audio-visual and networking installations.
