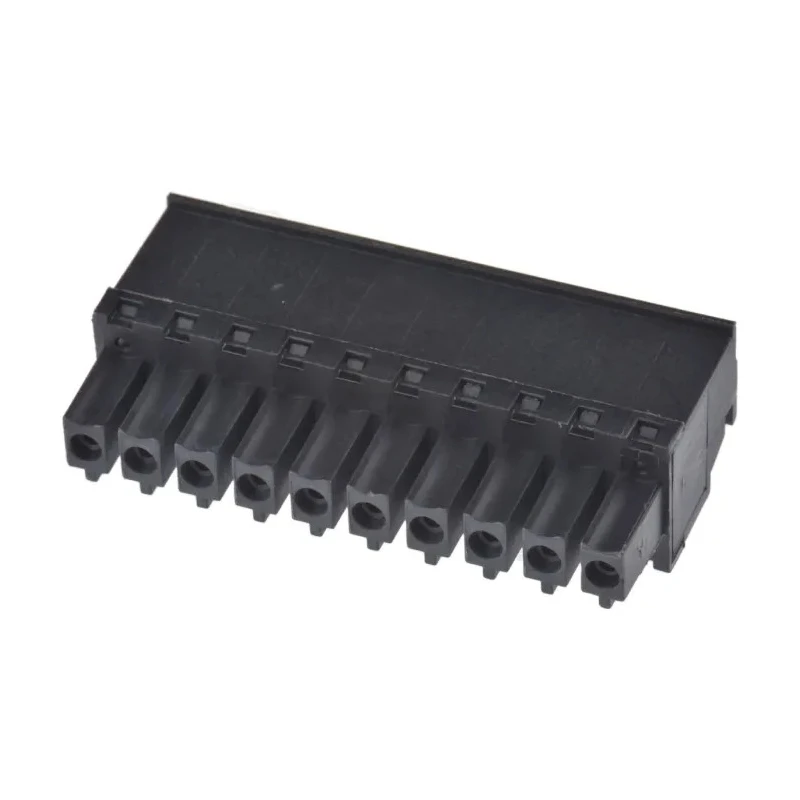

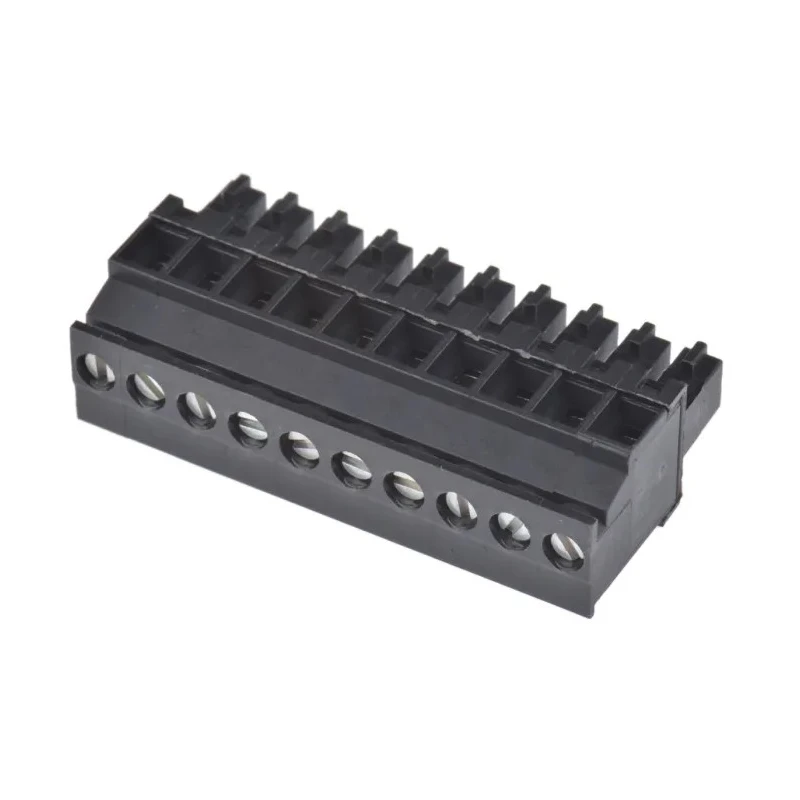

Weidmüller BC 3.81 Series 10-Contact 3.81 mm Pitch 1 Row Pluggable Terminal Block 1798610000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Right Angle |
| Current | 17.5A |
| Length | 38.1mm |
| Depth | 19.1mm |
| Width | 10.5mm |
| Housing Material | Nylon |
| Series | BC 3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-3942 Brand: [Weidmüller](https://in.rsdelivers.com/brands/weidmuller)Manufacturers Part No.: 1798610000 |
| Number of Contacts | 10 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Features 10 contacts for versatile circuit applications.
- 3.81 mm pitch ensures compact spacing.
- Constructed with durable nylon housing for electrical insulation.
- Supports wire sizes from 28 AWG to 16 AWG.
- Rated for a current capacity of 17.5 A and voltage up to 320 V.
- Right-angle orientation with screw connection method for secure wiring.
- Black color for easy identification and matching.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Weidmüller 1798610000 Pluggable Terminal Block from the BC 3.81 series is engineered for reliable electrical connections in industrial and electronic applications. This 10-contact terminal block features a 3.81 mm pitch and a single-row design suitable for dense wiring layouts.
The terminal block uses a screw clamp connection method ensuring strong and dependable wire retention. Its nylon housing offers robust electrical insulation and durability against environmental factors. Rated for 17.5 A current and 320 V voltage, it supports wire sizes ranging from 28 AWG to 16 AWG (0.2 mm² to 1.5 mm²), accommodating various wiring needs.
The connector is male with a right-angle orientation, designed to optimize space and facilitate compact installation on PCBs or electrical panels. Its black color aids in easy circuit identification and aesthetic uniformity. Compliance with RoHS standards reflects adherence to environmental and safety regulations.
Featuring compact dimensions of 38.1 mm length, 10.5 mm width, and 19.1 mm depth, this terminal block is ideal for industrial manufacturing, automation, control panels, and electronic assembly work requiring high-density wiring solutions.
Features 10 contacts for versatile circuit applications. 3.81 mm pitch ensures compact spacing. Constructed with durable nylon housing for electrical insulation. Supports wire sizes from 28 AWG to 16 AWG. Rated for a current capacity of 17.5 A and voltage up to 320 V.
Right-angle orientation with screw connection method for secure wiring. Black color for easy identification and matching. Complies with RoHS standards ensuring environmental safety. Compact dimensions with length 38.1 mm, width 10.5 mm, and depth 19.1 mm.
This Weidmüller BC 3.81 series pluggable terminal block is suitable for use in electrical distribution, industrial control systems, automation, and laboratory equipment. It offers reliable connectivity, easy installation, and long-lasting durability necessary for demanding industrial environments.
Explore more Weidmüller Pluggable Terminal Blocks and connectors in EnvMart to find compatible components for your electrical engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 17.5 A and a voltage of up to 320 V.
It supports wire sizes ranging from 28 AWG to 16 AWG, which corresponds to 0.2 mm² to 1.5 mm².
The pitch of this terminal block is 3.81 mm, allowing for compact spacing in wiring applications.
This unit has a right-angle orientation and uses a screw connection method for secure wiring.
The compact dimensions are 38.1 mm in length, 10.5 mm in width, and 19.1 mm in depth.
Yes, it complies with RoHS standards, ensuring environmental safety.
This model is a male connector, designed for reliable electrical connections.
It is suitable for use in electrical distribution, industrial control systems, automation, and laboratory equipment.
The wire connection method for this terminal block is screw, ensuring strong wire retention.
The country of origin for this terminal block is China.
