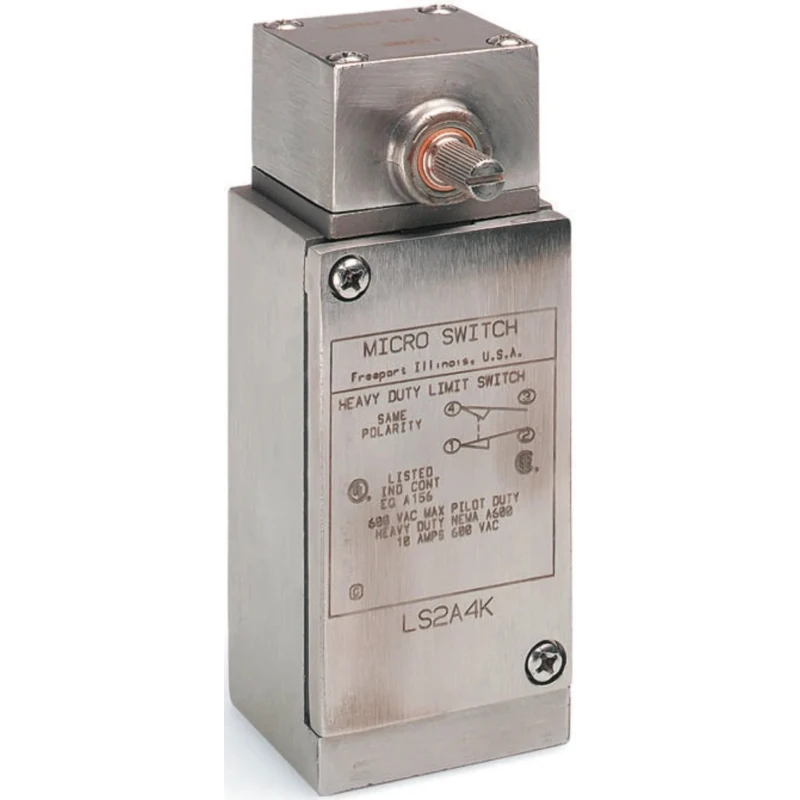

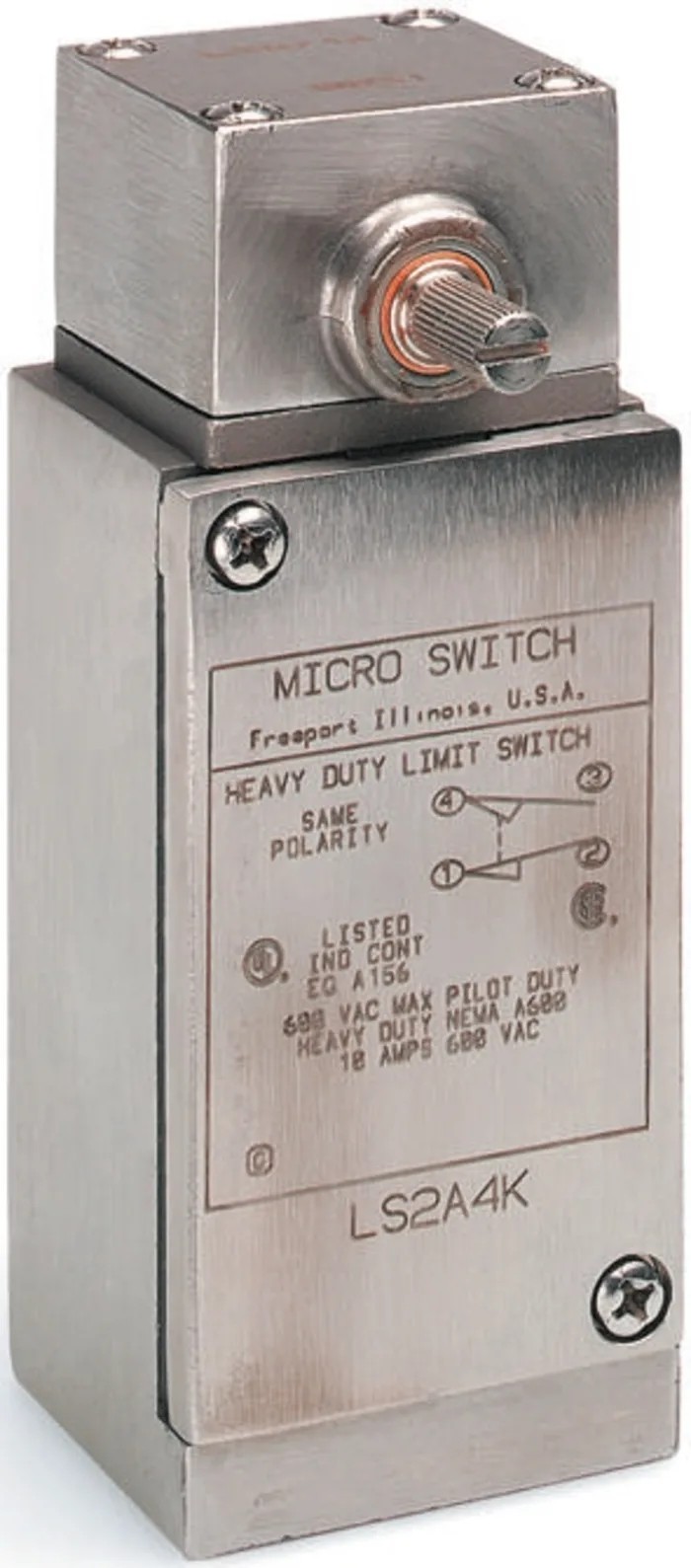

Honeywell Technologies HDLS Series Rotary Head Limit Switch, DPDT, Snap Action, Stainless Steel Housing, 240V AC, 10A LS2A4L

Honeywell Technologies LS2A4L HDLS Series Rotary Head Limit Switch is engineered for precise industrial position and end-of-travel monitoring. Featuring a robust stainless steel housing and snap-action DPDT contacts, it handles switching currents up to 10A at 240V AC. The rotary head actuator enables fast, reliable contact changes essential for automated control panels and machinery.

The device meets stringent ingress protection standards with IP65, IP66, and IP67 ratings, ensuring dust-tight performance and resistance to water jets and temporary immersion, ideal for harsh operating environments and washdown areas. Its temperature tolerance spans from -12°C to 121°C, making it suitable for applications ranging from cold stores to elevated process temperatures.

Electrical connections use screw terminals to guarantee durable contact and ease of maintenance or replacement. The switch boasts a mechanical endurance of up to 50 million operations, promising long service life in demanding production line roles.

Typical applications include conveyor end-stop detection in manufacturing lines, actuator position feedback within automated cells, safety interlock signaling with machine guards, and control of motor starters and contactors.

Standards compliance includes UL Listing (file E37138), CSA Certification (file LR57326), and CE approval, ensuring compatibility with global industrial safety requirements. Rotary head actuator for reliable mechanical position detection.

DPDT snap-action contacts for rapid and precise switching. Durable stainless steel housing with IP65, IP66, IP67 ingress protection. Wide operating temperature range from -12°C to 121°C. Screw terminal wiring for secure and maintainable electrical connections.

Mechanical life rated to 50 million operational cycles. Useful for automation, electrical control panels, and safety interlocks. Explore more from Honeywell Technologies and similar precision Limit Switches on EnvMart for industrial and automation applications.
