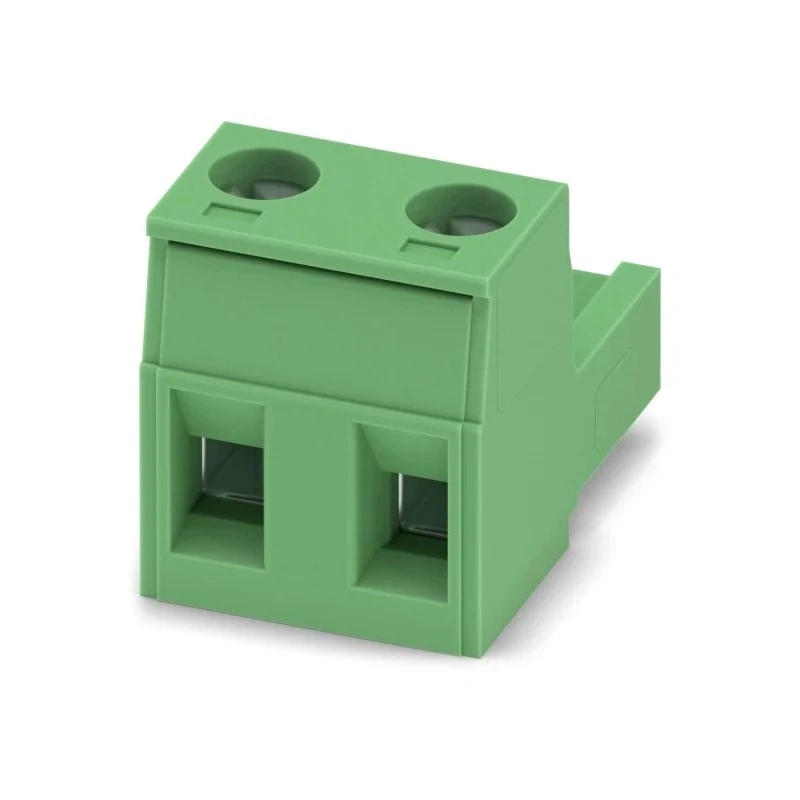

Phoenix Contact GMSTB 2.5/2-ST Pluggable Terminal Block, 2-Contact, 7.5 mm Pitch, 12A, Polyamide Housing, Female 1766880

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact GMSTB 2.5/2-ST Pluggable Terminal Block, 2-Contact, 7.5 mm Pitch, 12A, Polyamide Housing, Female 1766880

Name: Phoenix Contact GMSTB 2.5/2-ST Pluggable Terminal Block, 2-Contact, 7.5 mm Pitch, 12A, Polyamide Housing, Female 1766880
Brand: PHOENIX CONTACT
SKU: 373657
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	630V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	13mm
Model	1766880
Depth	15mm
Width	18.2mm
Housing Material	Polyamide
Series	GMSTB 2.5/2-ST
Number of Rows	1
Pitch	7.5mm
Number of Contacts	2
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

The terminal block supports a current rating of 12A for efficient power transmission.
Constructed with durable polyamide housing ensuring electrical insulation and mechanical strength.
Compatible with wire sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
Features a female connector type and straight orientation designed for secure connections.
Operates at a voltage rating of up to 630V, providing safe and stable electrical performance.
Wire connection is secured via screw connection with tension sleeve for reliable contact.
Compact size with dimensions approximately 13 mm length, 18.2 mm width, and 15 mm depth for versatile applications.
Available in green color for easy identification and standardization.

Product Description

Phoenix Contact 1766880 is a premium Pluggable Terminal Block designed for efficient and secure electrical connections on PCBs. This 2-contact terminal block features a 7.5 mm pitch and is engineered for a current rating of 12A and voltage rating of 630V, suitable for various industrial and commercial electronic applications.

The terminal block's housing is made from robust polyamide material, providing excellent electrical insulation and mechanical durability. Its female connector type with a straight orientation ensures reliable mating with compatible components.

Wire connection is achieved through a screw connection mechanism that includes a tension sleeve, enhancing contact stability and reducing the risk of loosening over time. It supports a wide range of wire sizes, from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG), making it adaptable to diverse wiring requirements.

With compact dimensions of approximately 13 mm in length, 18.2 mm in width, and 15 mm in depth, this terminal block is suited for dense PCB layouts and offers ease of installation in electrical assemblies. The green coloration supports easy identification in assemblies.

Phoenix Contact's GMSTB 2.5/2-ST series, including this model 1766880, upholds high manufacturing standards and is made in Germany, assuring quality, reliability, and compliance with industry expectations.

The terminal block supports a current of 12A and voltage of 630V for versatile electrical applications. Polyamide housing provides mechanical strength and electrical insulation. Screw connection with tension sleeve ensures robust wire retention.

Suitable for wire sizes 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). Compact dimensions allow for space-efficient PCB designs. Green color coding aids in component identification. Single row with 2 contacts facilitates simple connectivity.

Manufactured in Germany, ensuring quality and durability.

This terminal block is ideal for industrial control systems, electronic manufacturing, HVAC, automation, and other applications requiring reliable wire-to-board connections. Browse EnvMart for more Phoenix Contact terminal blocks and related electronic components to build effective and safe electrical systems.
