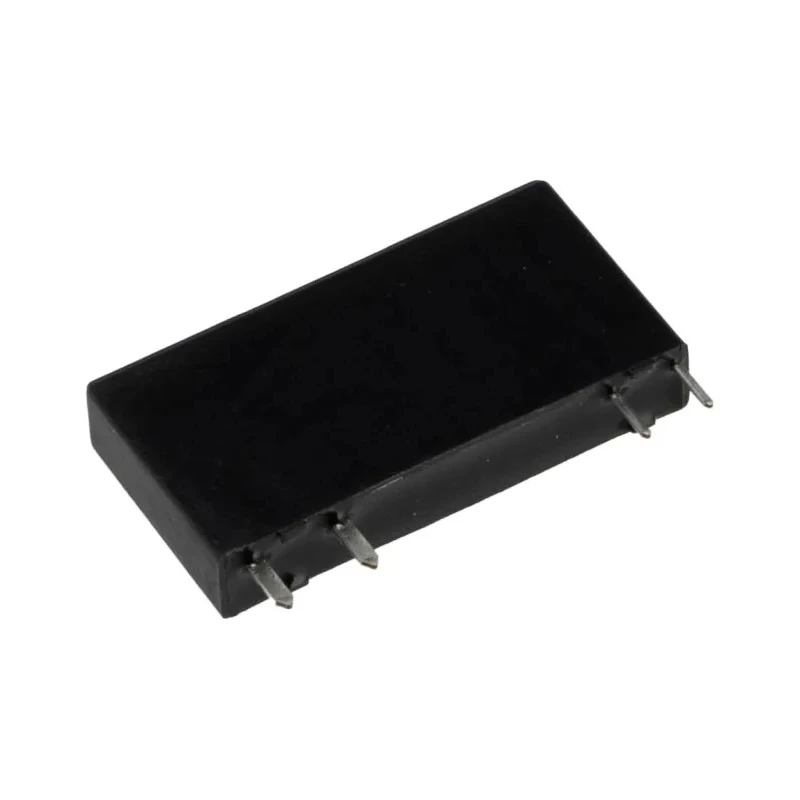

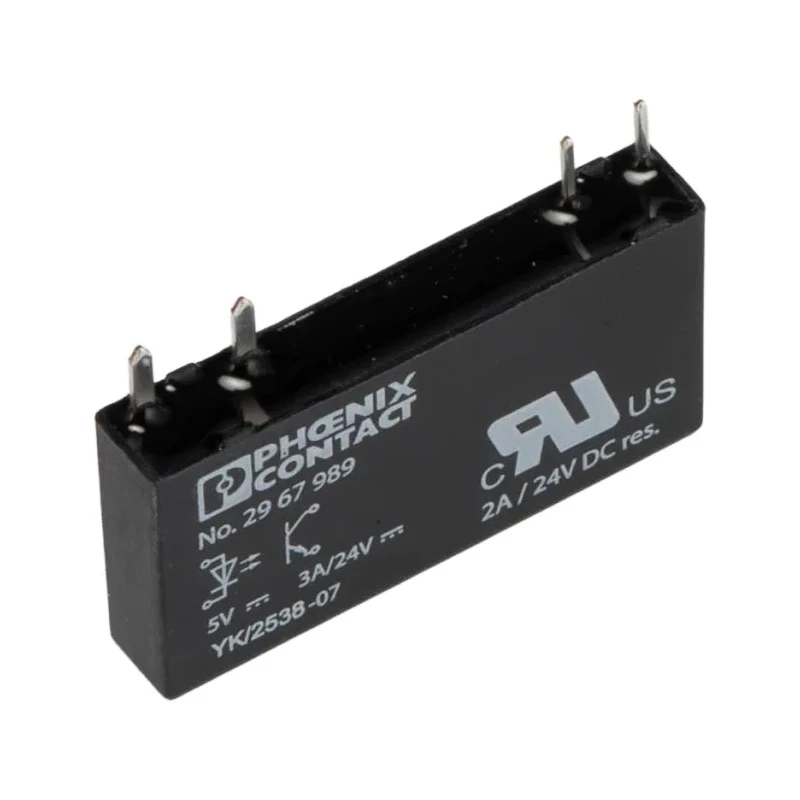

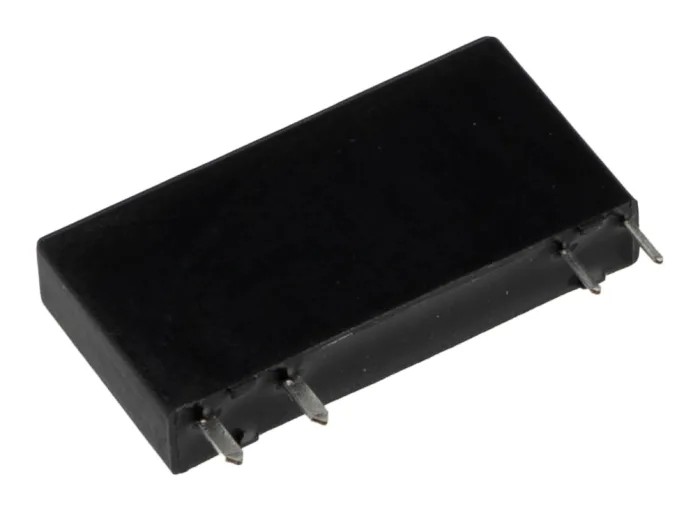

Phoenix Contact Solid State Relay 6V dc Control 2967989

Phoenix Contact 2967989 Solid State Relay 6V dc Control is a miniature relay unit specifically engineered for efficient control of electrical circuits on printed circuit boards (PCBs). It ensures safe and reliable switching in industrial and manufacturing applications, with compact dimensions of 28mm height, 5mm width, and 15mm depth enabling dense installation on DIN rails.

The relay operates at a control voltage range between 4V dc minimum and 6V dc maximum, and is constructed with PCB terminal type connections for easy and secure wiring. Its SPST contact configuration supports standard single-pole switching functions, making it ideal for integration in automation and control systems.

Designed to withstand harsh industrial environments, it features operation over a temperature range from -25°C up to 80°C and offers resistance to shock and vibration. The unit also meets RoHS compliance standards, ensuring it meets environmental and safety regulations.

Featuring four bridging slots, it allows bridging up to 80 modules reducing wiring complexity. The spring-cage push-in terminals require low insertion force and accept small conductors without tools. Additionally, the washproof components enable thorough cleaning without compromising reliability.

This relay meets EN 50178 standards making it suitable for power installation applications where isolation voltages up to 2.5 kV are required. With a maximum forward voltage of 5 V and input current of 9 mA, it supports efficient low-voltage control circuits.

The Phoenix Contact PLC-RSC series compatibility allows easy configuration of single and double pole relays and optocouplers with common accessories, enabling flexible industrial automation solutions.

Overall, this solid state relay is a robust and compact choice for industrial, manufacturing, electrical engineering, and automation applications requiring reliable PCB mounted control components.

Supports minimum control voltage of 4V dc and maximum control voltage of 6V dc. Features PCB terminal type for secure and easy installation. Single pole single throw (SPST) contact configuration. Operates reliably between -25°C and 80°C ambient temperatures.

Compact dimensions of 28mm height facilitating dense mounting on DIN rails. Complies with RoHS standards ensuring environmentally safe construction. Durable design suitable for industrial machinery requiring vibration and shock resistance.

Washproof components allow safe cleaning without damage to relay. Isolation voltage capability of 2.5 kV enhances operational safety in power installations. Compatible with Phoenix Contact PLC-RSC series and common bridging accessories.
