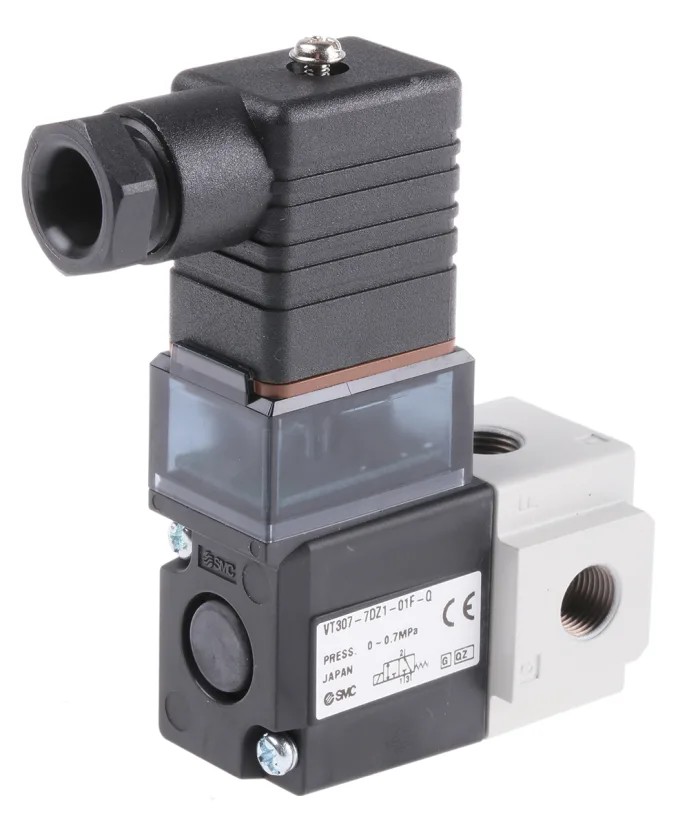

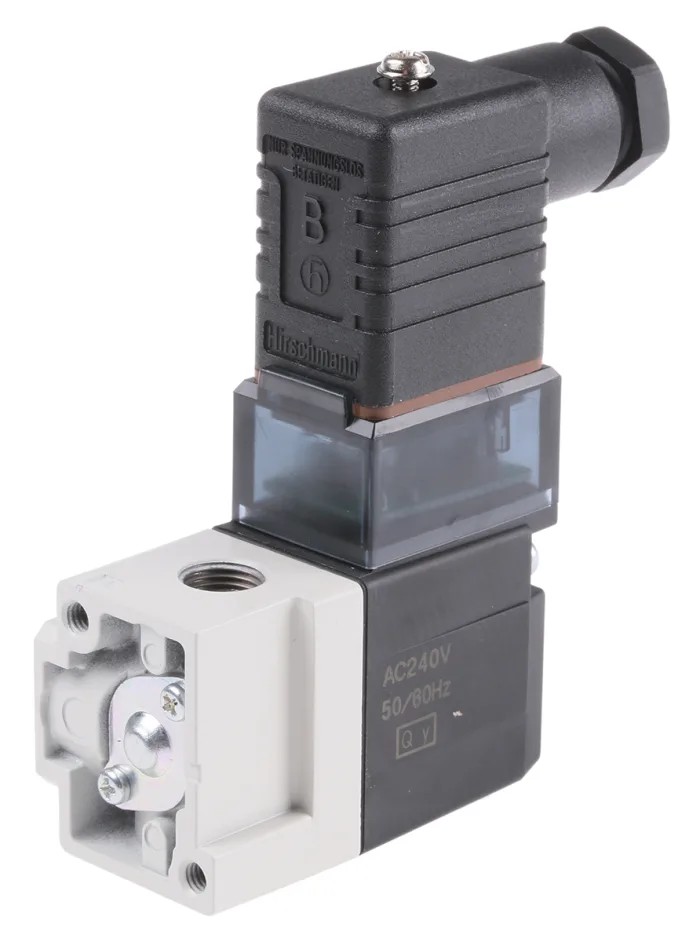

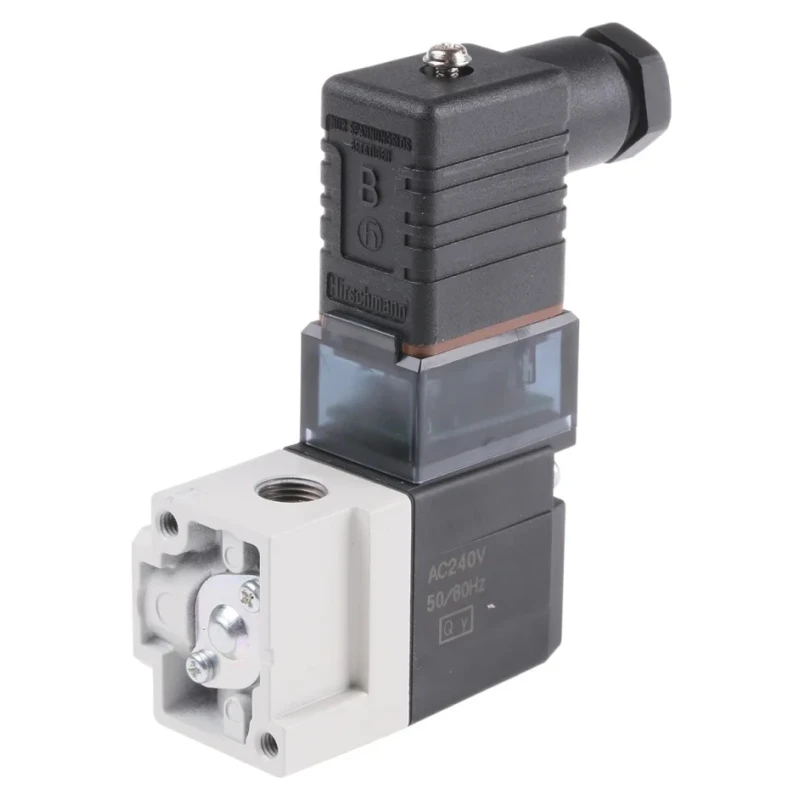

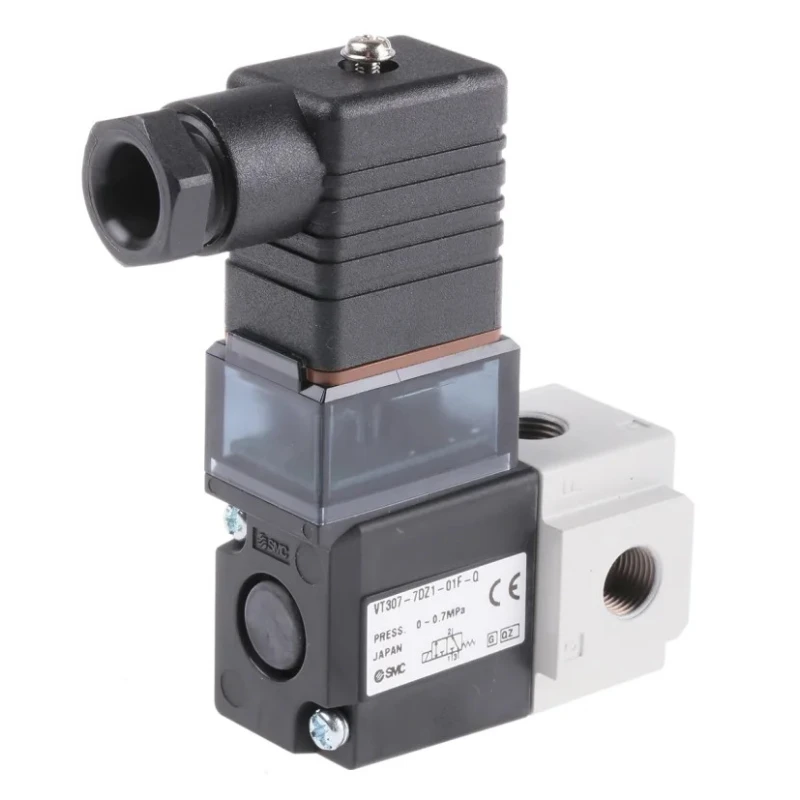

SMC Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 Port Threaded, Manifold Mount, 240V AC, 4.2W Power VT307-7DZ1-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 Port Threaded, Manifold Mount, 240V AC, 4.2W Power VT307-7DZ1-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	240V ac
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307-7DZ1-01F-Q
Width	25.6mm
Mount Type	Manifold
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/8 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	CE, RoHS
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W
Various functions	N/O, N/C, Divider valve, Selector valve

Key Features

Valve body constructed from durable die cast aluminium.
Hydrogenated nitrile rubber seals for reliable performance.

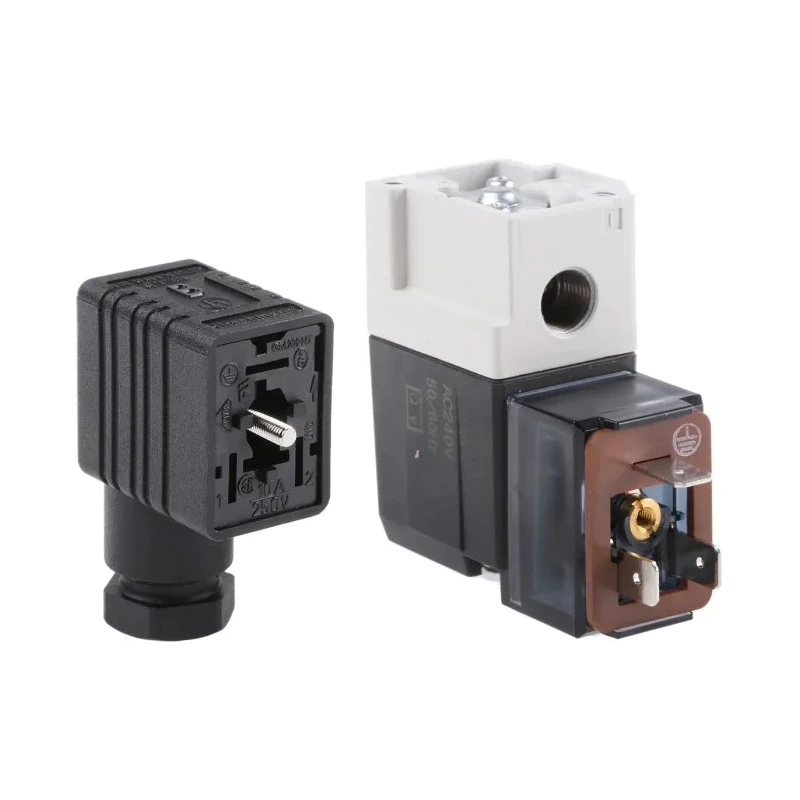

Manifold mount with DIN 43650 connector and dust-proof enclosure.
3-port, 3-position valve function with easy N/O and N/C conversion.
Operates at 240V AC with low power consumption of 4.2W.
Maximum operating pressure of 0.7 MPa and temperature up to 50°C.
Compact form factor ideal for manifold installation.
Maximum flow rate of 187 L/min suitable for diverse pneumatic tasks.

Product Description

SMC VT307-7DZ1-01F-Q Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 series is a high-quality manifold mount valve designed for efficient pneumatic control, operating at 240V AC with low power consumption of 4.2W. The valve features a robust die cast aluminium body and hydrogenated nitrile rubber seals to ensure reliable sealing and longevity.

This solenoid valve supports a maximum operating pressure of 0.7 MPa and can operate safely within temperatures ranging from -10°C to 50°C, making it suitable for a wide range of industrial environments. Its 3-port, 3-position valve function allows for versatile control including normally open, normally closed, divider valve, and selector valve functions, with the ability to easily convert between normally closed and normally open by inverting the function plate.

The valve's compact size, featuring 84 mm height, 77.6 mm length, and 25.6 mm width, along with a DIN connector for electrical connection and dust-proof enclosure, enables easy installation and reliable operation even in harsh conditions. The maximum flow rate of 187 L/min ensures sufficient air delivery for pneumatic applications like blow-off valves, pressure release, and cylinder drives.

Suitable for industrial automation, manufacturing, laboratory instrumentation, and fluid power systems, this valve meets CE and RoHS standards, ensuring its compliance with industry safety and environmental regulations.

The valve body is made from durable die cast aluminium. Seal material is hydrogenated nitrile rubber for high performance. Manifold mount with DIN 43650 pattern and dust-proof enclosure. Multiple valve functions including N/O, N/C, divider, and selector valves.

Compact dimensions and low power 4.2W solenoid operation at 240V AC. Max operating pressure 0.7 MPa and flow rate 187 L/min. Suitable for various industrial pneumatic control applications. Explore comprehensive ranges of pneumatic components and valves at EnvMart, your trusted source for industrial pneumatic solutions.
