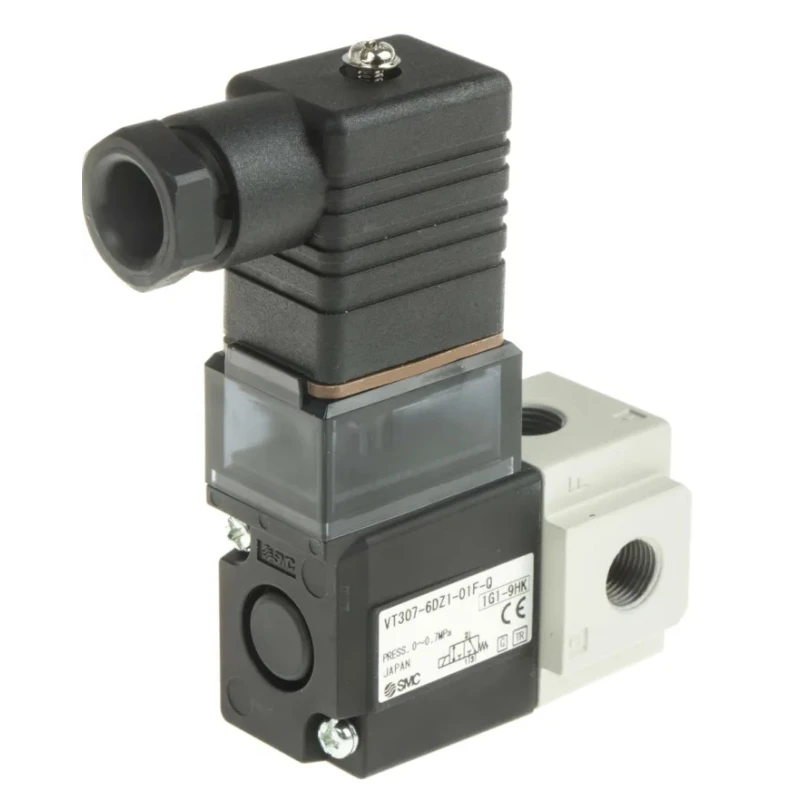

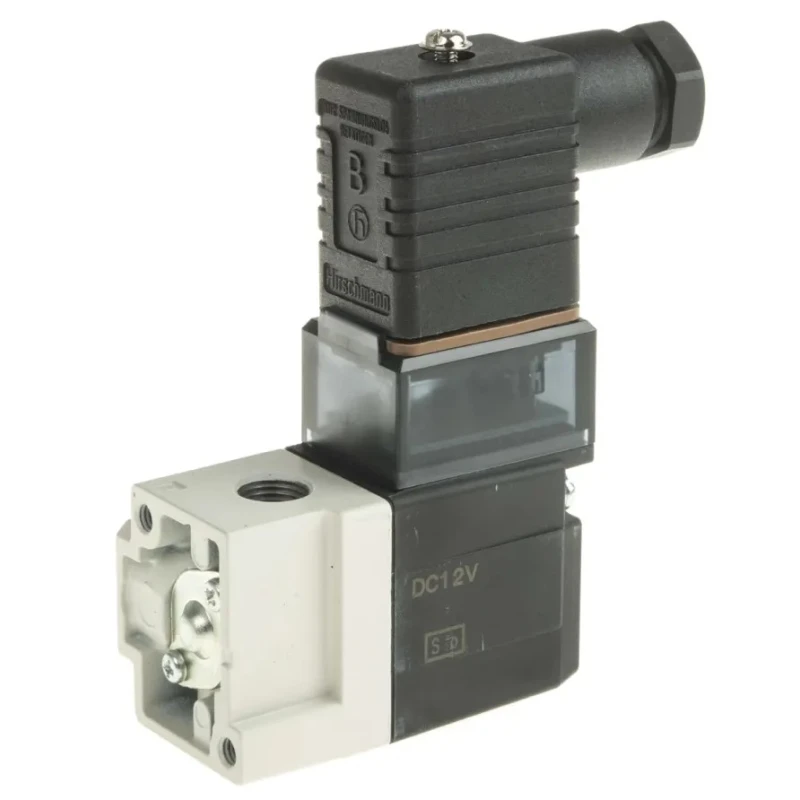

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Threaded Port 12V DC Die Cast Aluminium VT307-6DZ1-01F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Threaded Port 12V DC Die Cast Aluminium VT307-6DZ1-01F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	12V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307-6DZ1-01F-Q
Width	25.6mm
Mount Type	Manifold
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/8 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	CE, RoHS
Connection Thread Standard	G 1/8
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W
Various functions	N/O, N/C, Divider valve, Selector valve

Key Features

The valve is constructed with die cast aluminium body for durability.
It operates at a maximum pressure of 0.7 MPa with a flow rate capacity of 187 L/min.
The solenoid is single type consuming 4.2 W power and uses a hydrogenated nitrile rubber seal for reliability.
It features a DIN connector electrical connection with IP65 protection and dust-proof enclosure.
The valve supports various functions including Normally Open, Normally Closed, Divider valve, and Selector valve.
Suitable for industrial pneumatic applications such as blow-off valves and cylinder drives.
It has a compact size with dimensions 77.6mm length, 25.6mm width, and 84mm height.

Product Description

SMC VT307-6DZ1-01F-Q pneumatic solenoid valve is a robust 3/2 Normally Closed (NC) valve designed for manifold mounting and industrial pneumatic control applications.

Powered by 12V DC and constructed from die cast aluminium, this valve ensures long service life and reliable operation. It features a G 1/8 threaded port size and operates efficiently at a maximum operating pressure of 0.7 MPa with a flow rate up to 187 L/min, making it suitable for diverse industrial uses including blow-off valves, pressure release valves, single acting cylinder drives, divider valves, and double acting cylinder drives.

The valve employs a single solenoid type powered by 4.2 W and uses hydrogenated nitrile rubber seals to enhance durability against wear and leakage. Electrical connection is via a dust-proof DIN connector with IP65 protection, enabling use in harsh environments. Its compact design (77.6mm length, 25.6mm width, and 84mm height) allows for flexible installation with unrestricted mounting orientation.

The VT307 series supports multiple valve functions such as normally open, normally closed, divider, and selector valves, and includes voltage surge suppression for electrical protection. Manual override is provided via a non-locking push type for operational convenience.

Manufactured in Japan, the valve complies with CE and RoHS standards, ensuring adherence to industrial quality and environmental safety requirements. Durable die cast aluminium body with threaded G 1/8 port for manifold mounting.

Operates up to 0.7 MPa maximum pressure with flow rates up to 187 L/min. Single solenoid actuation consuming 4.2 W power with hydrogenated nitrile rubber seals. Equipped with IP65 rated DIN electrical connector and dust-proof enclosure.

Supports various valve functions including N/O, N/C, divider, and selector valve configurations. Compact dimensions suitable for industrial pneumatic cylinder drives and blow-off valves. Complies with CE and RoHS standards for safety and environmental compliance.

This SMC VT307-6DZ1-01F-Q valve is ideal for industrial, manufacturing, automation, and water treatment pneumatic systems requiring reliable and efficient fluid control. Explore more Pneumatic Solenoid Valves and pneumatic components from SMC in the Industrial Valves section on EnvMart.
