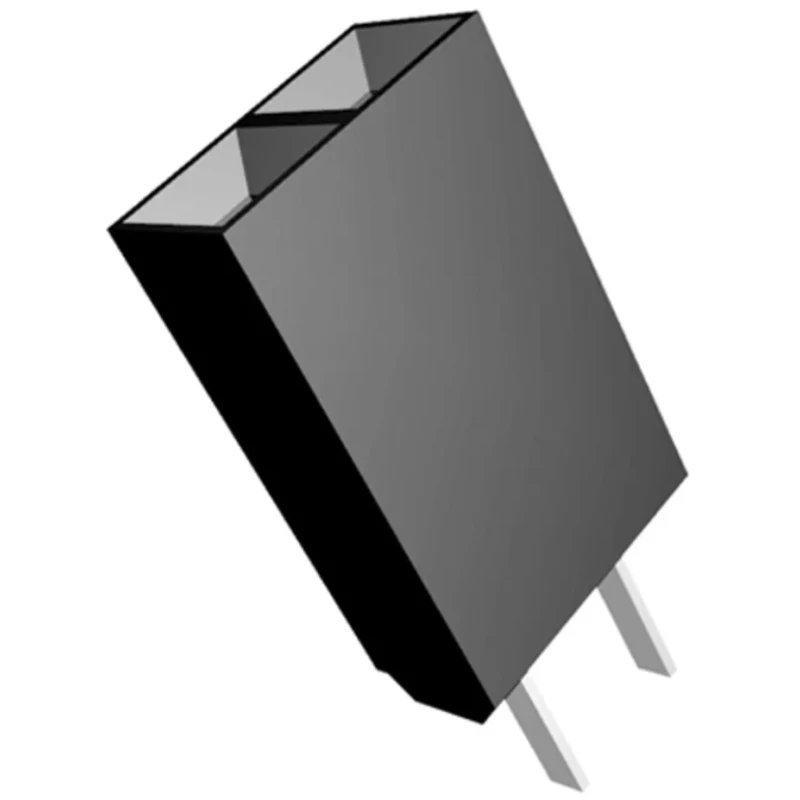

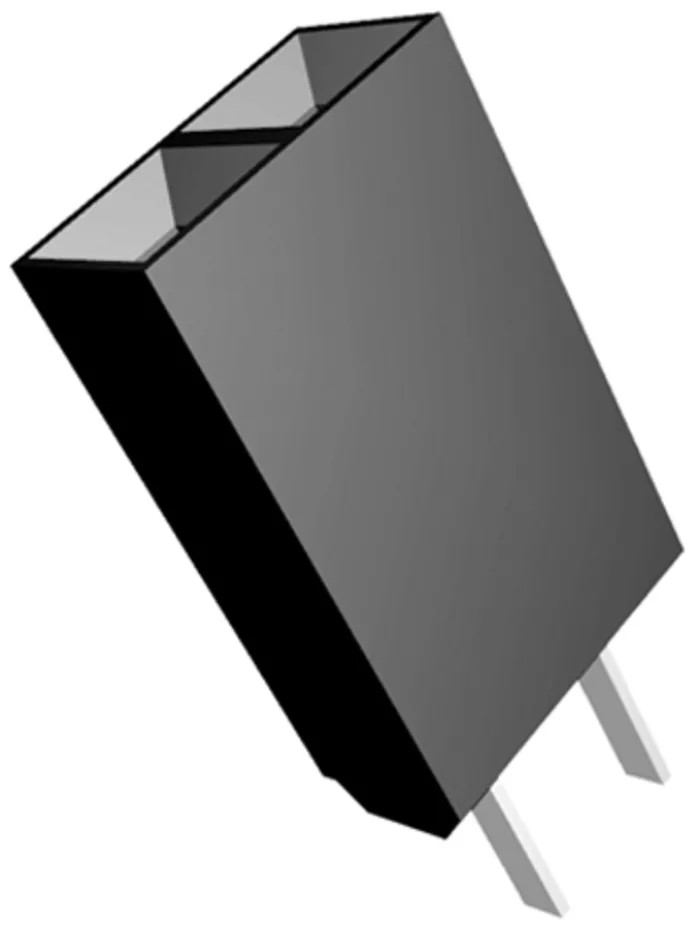

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Socket, 2-Contact, 2 Row, 2.54 mm Pitch Solder 5-534206-1

TE Connectivity 5-534206-1 is a PCB Socket from the AMPMODU MOD II Series featuring a straight through hole mount with solder termination. This 2-contact, 2-row socket with 2.54 mm pitch is engineered to provide dependable board-to-board connection solutions in automation, control, and industrial electronics applications.

The socket housing is crafted from high-temperature Liquid Crystal Polymer material rated at 94V-0, which offers excellent durability and flame retardance. The gold-plated female contacts ensure maximum conductivity and resistance to corrosion, maintaining connection integrity over extended operating periods.

Designed as part of the AMPMODU MOD II interconnect system, this PCB socket supports a current rating of 12A and a voltage rating of 333V, making it suitable for a broad range of signal transmission and power distribution tasks. Its straight orientation and through-hole mounting facilitate reliable solder joint formation and mechanical stability on printed circuit boards.

Key operational parameters include a broad temperature range from -65°C to 105°C, making it ideal for demanding industrial environments that experience temperature variations. The connector’s design includes end stackability and closed entry housings to prevent damage and ensure ease of installation.

This product is manufactured in China and complies with the relevant industry standards though no specific certifications are indicated. The AMPMODU system is recognized globally for economical and compact connectors, suitable for automation, manufacturing, and control system applications.

The housing is made of high-temperature 94V-0 thermoplastic Liquid Crystal Polymer ensuring durability. The connector system is AMPMODU MOD II series designed for signal automation and control solutions. Rated for 12A current and 333V voltage for robust electrical performance.

The socket features gold-plated female contacts for corrosion resistance and reliable conductivity. It is end stackable with closed entry housing to prevent post stubbing and compatible with high-temperature surface mount processes.

Operating temperature range is from -65°C to 105°C, suitable for harsh industrial environments. The pitch between contacts is 2.54 mm with two rows and two contacts for compact footprint. The mount type is through hole and the orientation is straight for ease of PCB integration.

Manufactured in China and conforming to industrial standards with no specific approvals listed. Searching for reliable PCB Sockets for your electronic assemblies? Explore the AMPMODU MOD II series by TE Connectivity and browse more precision connectors at EnvMart.
