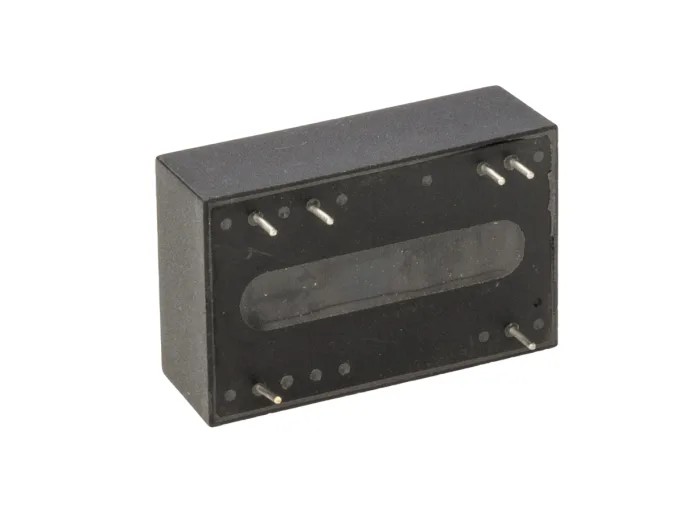

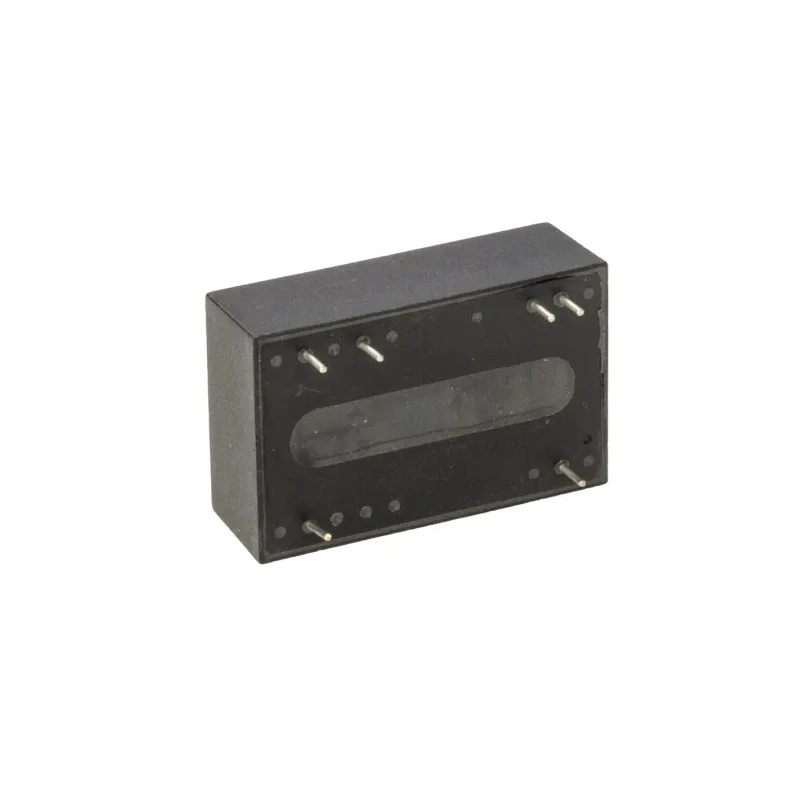

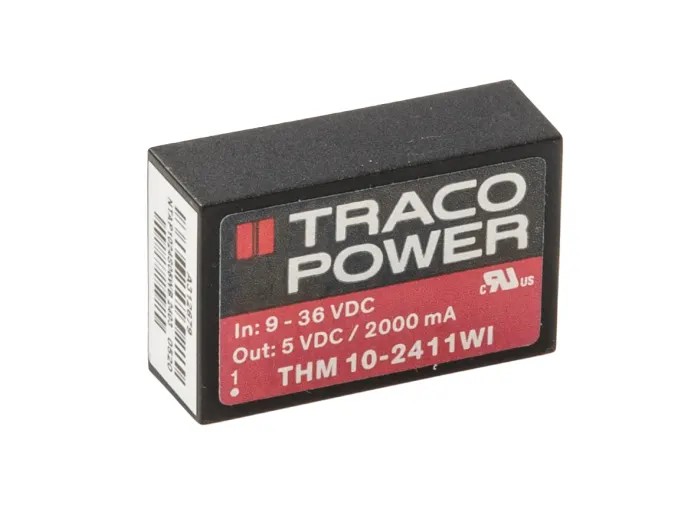

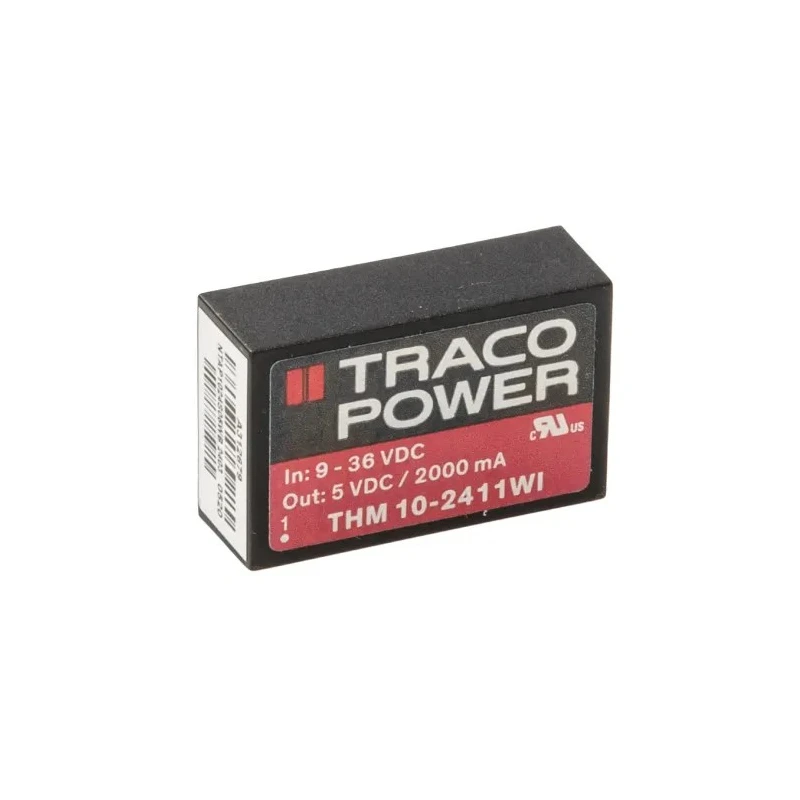

TRACOPOWER High Efficiency 10W DC/DC Converter 5V Output 2A 9-36V Input Through Hole THM 10-2411WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 10WI DC/DC Converter, 5V dc/ 2 A, 3 |
| Brand | TRACOPOWER |
| Efficiency | 86.5% |
| Length | 31.8mm |
| Model | THM 10-2411WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THM 10WI |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3850000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
Key Features
- Operates efficiently with up to 86.5% efficiency.
- Reinforced isolation voltage of 5kV AC ensures safety in sensitive applications.
- Wide operating temperature range from -40°C to +90°C allows versatile use.
- Designed with low leakage current under 2μA for medical compliance.
- Compact DIP package measuring 31.8mm length by 20.3mm width and 10.2mm depth.
- High MTBF of 3,850,000 hours enhances reliability for long-term operation.
- Single output converter suitable for critical industrial and medical power needs.
- Through hole mounting facilitates easy PCB integration.
Product Description
TRACOPOWER THM 10-2411WI DC/DC Converter offers a stable 5V output at 2A with an input voltage range from 9 to 36V DC, supporting a maximum output power of 10W. This high-efficiency converter achieves up to 86.5% efficiency and features reinforced 5kV AC isolation voltage, making it suitable for demanding medical and industrial applications where safety and performance are critical.
It operates reliably within a temperature range of -40°C to 90°C, adapting well to various environmental conditions. The low leakage current of less than 2μA provides compliance with strict medical standards, ensuring patient safety and device effectiveness.
The converter is housed in a compact DIP package with dimensions 31.8mm (length) x 20.3mm (width) x 10.2mm (depth) and utilizes through hole mounting type for straightforward integration into printed circuit boards. Its durable design supports a mean time between failures (MTBF) of 3,850,000 hours, guaranteeing long operational life in demanding settings.
Typical applications include medical device power supplies requiring consistent voltage, industrial automation systems for signal conditioning, measurement and control equipment, as well as IGBT driver circuits in power electronics.
Operates with 86.5% efficiency ensuring minimal power loss. Provides 5kV AC reinforced isolation voltage for enhanced safety. Wide input voltage range from 9V to 36V DC for flexible power sourcing. Low leakage current below 2μA meets medical application requirements.
Durable DIP package with through hole mounting for ease of PCB integration. Compact dimensions suitable for space-constrained designs. Robust performance across -40°C to +90°C operational temperature range. High reliability with MTBF of 3,850,000 hours.
This DC/DC converter is ideal for use in industrial, medical, laboratory, and commercial power supply applications where regulated output and isolation are essential. It is designed to meet stringent quality and safety standards typical in healthcare and industrial automation contexts.
Explore more in the EnvMart Electronics & Electricals DC/DC Converter category for comprehensive solutions from trusted brands like TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range from 9V to 36V DC.
The maximum output power of the THM 10-2411WI is 10W.
It achieves up to 86.5% efficiency during operation.
The converter features a reinforced isolation voltage of 5kV AC.
This unit has dimensions of 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It operates reliably within a temperature range of -40°C to 90°C.
This model has a single output.
The output current rating is 2A at 5V.
It is designed for through hole mounting, facilitating easy PCB integration.
The MTBF is rated at 3,850,000 hours, indicating high reliability.
The leakage current is low, specified to be under 2μA, suitable for medical compliance.
It is suitable for medical device power supplies, industrial automation systems, and IGBT driver circuits.
