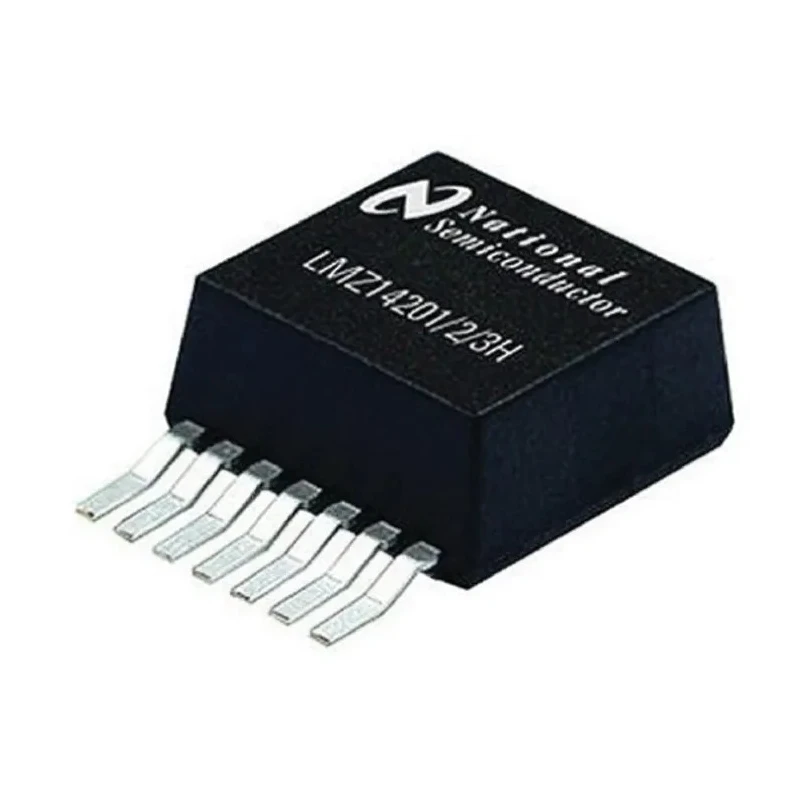

Texas Instruments DC/DC Converter Surface Mount 24V Output Voltage 1A Output Current LMZ14201HTZE/NOPB

Texas Instruments LMZ14201HTZE/NOPB is a high-performance DC/DC converter power module designed for efficient power regulation with a 24V output voltage and 1A output current.

This surface mount module belongs to the LMZ-1 Series of SIMPLE SWITCHER® power modules, offering easy integration for applications requiring high input voltages up to 42V and standard feature sets.

The converter includes an integrated shielded inductor that helps minimize electromagnetic interference (EMI), ensuring electromagnetic compatibility in industrial and commercial electronics.

It features precision enable, soft-start, and tracking pins to allow well-controlled startup sequences and sequencing needs in complex system designs. The unit provides outstanding thermal performance with the capability to operate effectively in temperatures up to 125°C, making it suitable for harsh industrial environments.

The non-isolated power module supports high output current and voltage requirements while maintaining a compact form factor of 10.16 mm (L) x 9.85 mm (W) x 1.3 mm (D), enabling use in space-constrained PCB layouts.

Efficiency of 88% reduces energy losses and heat dissipation, supporting reliable and cost-effective power design solutions. The LMZ14201HTZE/NOPB complies with key industry standards including REACH, ESDA, JEDEC, ANSI, and RoHS, assuring quality and safety in electrical and electronic equipment.

This DC/DC converter module is ideal for industrial, communications, and computing applications requiring robust, high efficiency, and compact power conversion. The device features a surface mount design ideal for compact installations.

Integrated shielded inductor ensures low electromagnetic interference. Offers 88% efficiency to optimize power consumption. Supports a wide input voltage range from 6V to 42V. High precision enable and soft-start pins provide controlled power-up sequences.

Superior thermal performance supports operation up to 125°C. Non-isolated module suitable for standard and high output voltage/current applications. Package dimensions are compact at 10.16mm length, 9.85mm width, and 1.3mm depth.

Compliant with REACH, ESDA, JEDEC, ANSI, and RoHS standards. Explore all Texas Instruments DC/DC Converters at EnvMart to find tailored power solutions for your industrial and electronic design needs.
