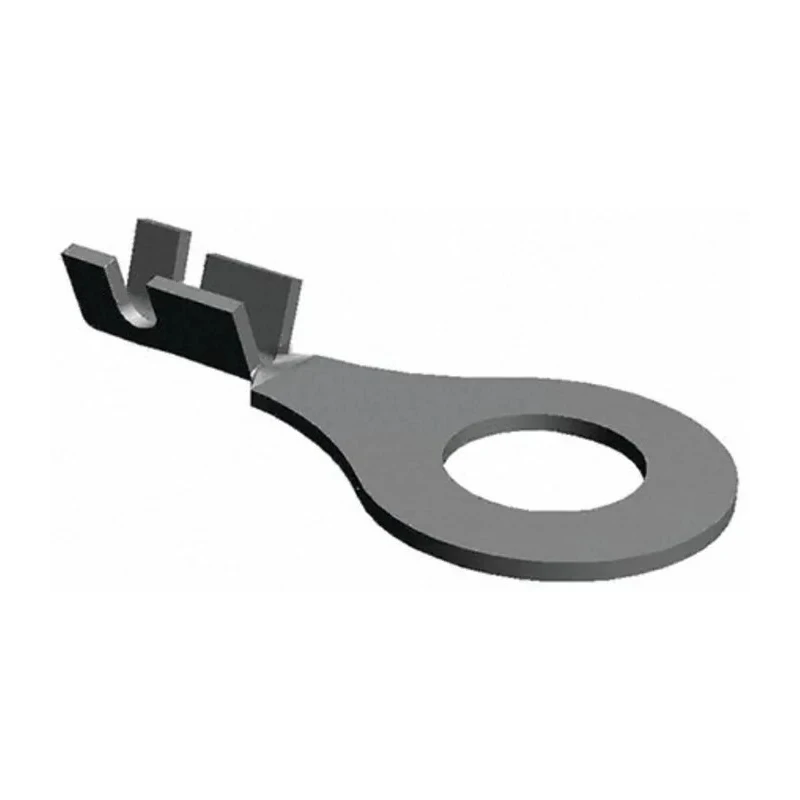

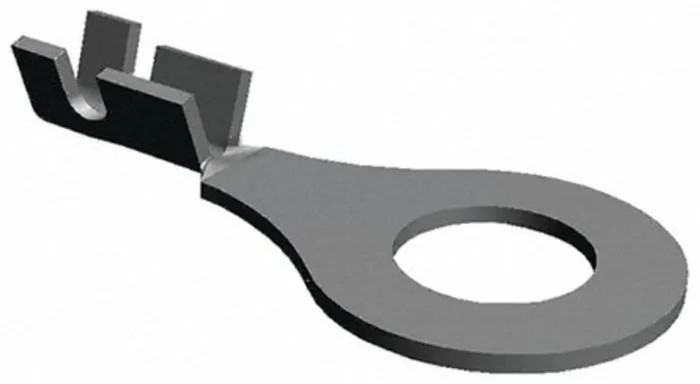

TE Connectivity Uninsulated Ring Terminal Grey, M6 Stud Size, 20 AWG - 16 AWG Wire Size 60700-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Grey |
| THICKNESS | 0.51mm |
| Model | 60700-2 |
| Insulation | Uninsulated |
| Overall Length | 24.94mm |
| Contact Material | Brass |
| Series | 60700 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.89mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
Key Features
- Constructed with brass contact material for durability and electrical conductivity.
- Uninsulated grey ring terminal compatible with M6 stud size connections.
- Supports wire sizes from 20 AWG (0.5mm²) to 16 AWG (1.4mm²) for versatile applications.
- Overall length of 24.94mm with an outer ring diameter of 11.89mm.
- Contact plating in tin enhances corrosion resistance and electrical performance.
- Suitable for operating temperatures ranging from -40°C to 110°C.
- Thickness of 0.51mm ensures sturdy mechanical strength.
- Designed for use in electronic components and power connector applications.
Product Description
TE Connectivity 60700-2 uninsulated ring terminal is engineered to provide secure and reliable wire-to-stud connections in electrical and electronic applications. This uninsulated terminal features a high-quality brass contact material with a tin plating finish that ensures excellent corrosion resistance and conductivity. Designed specifically for M6 stud size, it supports cable wires ranging from 20 AWG (0.5mm²) up to 16 AWG (1.4mm²), suitable for moderate power electrical connections.
The ring terminal exhibits an overall length of 24.94mm and an outer ring diameter of 11.89mm, providing compatibility and ease of installation in demanding environments. Its robust construction with a thickness of 0.51mm offers mechanical strength while maintaining electrical integrity across temperature ranges from -40°C up to 110°C, making it suitable for harsh industrial, automotive, and electronic system environments.
This product series 60700 by TE Connectivity is globally recognized for quality and reliability. It is ideal for applications in power connectors and wiring harness assemblies where secure termination is critical. The grey color coding helps in wire size identification and application-specific grouping. Manufactured in the United States, this ring terminal adheres to strict quality standards to ensure product safety and performance.
Constructed with brass for superior electrical conduction. Tinned contact plating prevents corrosion and enhances lifespan. Uninsulated design enables direct wire contact and cost effectiveness. Designed for M6 studs with precision dimensions for reliable fit.
Accommodates wire sizes from 20 AWG to 16 AWG for diverse requirements. Suitable for temperature extremes from -40°C to 110°C. Robust 0.51mm thickness for mechanical durability. Used extensively in industrial electronics, power distribution, and automotive wiring.
Manufactured to high standards in the United States.
This TE Connectivity Ring Terminal range offers engineers and technicians a dependable solution for crimped wire terminations ensuring electrical safety and long-term reliability. For a detailed selection of related connectors and terminals, explore the Power Connectors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal supports wire sizes ranging from 20 AWG (0.5mm²) to 16 AWG (1.4mm²).
It is designed for M6 stud size connections, ensuring a secure fit for various applications.
The overall length of this terminal is 24.94mm, with an outer ring diameter of 11.89mm and an inner ring diameter of 6.73mm.
This ring terminal can operate at temperatures up to 110°C.
It is constructed with brass contact material and features a tin plating for enhanced corrosion resistance and electrical performance.
The thickness of this terminal is 0.51mm, providing mechanical strength.
This ring terminal is manufactured in the United States.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
It is suitable for use in electronic components and power connector applications, particularly in industrial and automotive wiring.
No, this model is uninsulated, allowing for direct wire contact.
The tin plating enhances corrosion resistance and improves electrical performance of the terminal.
This terminal is part of the 60700 series by TE Connectivity, known for its quality and reliability.
