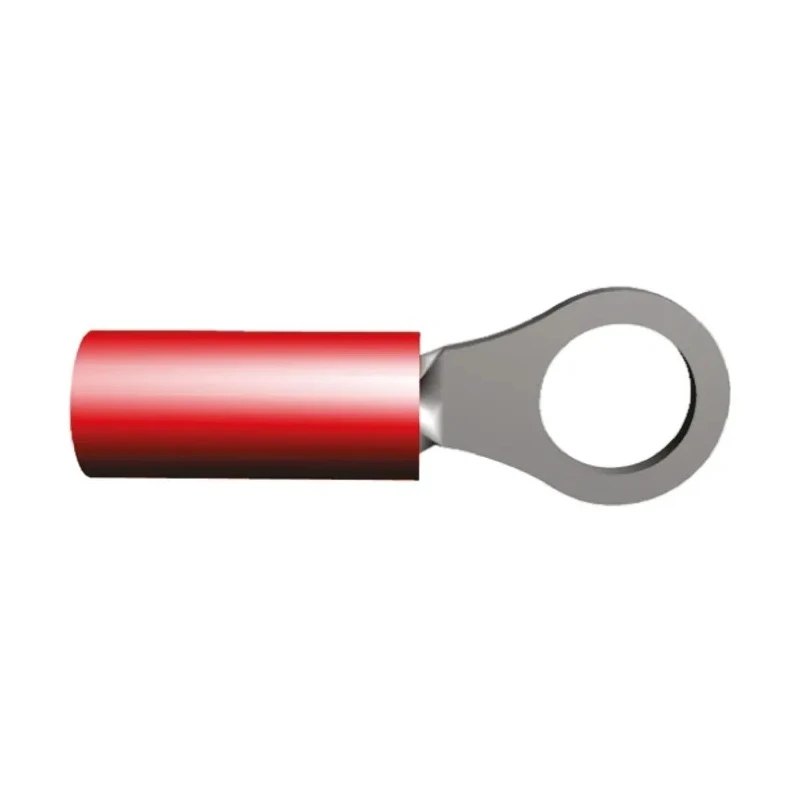

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 2-320552-1

TE Connectivity 2-320552-1 PIDG Insulated Ring Terminal is engineered for reliable electrical connections with M5 stud size and accommodates wire sizes ranging from 22 AWG to 16 AWG. The insulated ring terminal features a precision-formed, high conductivity copper body and barrel ensuring optimal electrical contact and mechanical strength.

The barrel includes serrations that secure maximum contact and tensile strength upon crimping, while the copper sleeve improves wire insulation support and prevents wire fraying. A red color-coded nylon insulation sleeve enhances wire size identification and provides additional protection in harsh environments.

The funnelled wire entry optimizes wire insertion speed during high-volume production. Designed to maintain consistent performance, these terminals exceed requirements in various demanding applications including instruments and control systems, lighting installations, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliance wiring.

Constructed to withstand a maximum operating temperature of 105°C, the ring terminals ensure safety and durability in industrial and commercial electrical assemblies. High conductivity copper body for excellent electrical performance.

Copper sleeve inside barrel to improve insulation support and prevent fraying. Serrated wire barrel ensures strong tensile strength upon crimping. Color-coded red nylon insulation for easy wire size identification. Funnelled wire entry for fast and reliable wire insertion.

Suitable for broad industrial, automotive, and aerospace wiring applications. Designed for wire sizes 22 AWG to 16 AWG and stud size M5. Maximum operating temperature of 105°C ensures durability.

All TE Connectivity PIDG Ring Terminals are manufactured in the United States and carry reliable quality standards, making them ideal for industrial, laboratory, manufacturing, and commercial electrical wiring needs. Explore the full range of high-quality electrical connectors and components at EnvMart for your next project.
