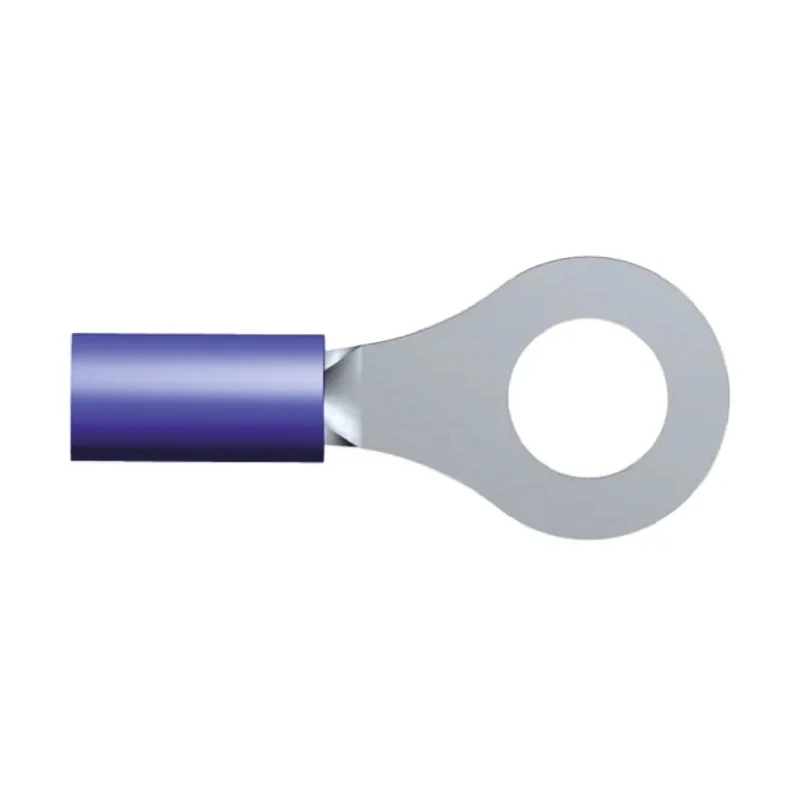

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 8-321045-1

TE Connectivity 8-321045-1 PIDG Insulated Ring Terminal is engineered for dependable electrical connections in industrial, aerospace, manufacturing, and power distribution applications. This insulated ring terminal is designed for M6 stud size compatibility and supports wire sizes ranging from 16 AWG to 14 AWG, indicated by its blue nylon insulation sleeve for effortless wire size identification and tooling.

The terminal features a high conductivity copper body and barrel, plated with tin, enhancing corrosion resistance and ensuring optimal electrical conductivity. The serrated wire barrel inside securely grips the wire strands providing maximum contact and tensile strength post-crimping, while a copper sleeve supports insulation and prevents wire fraying. The funnelled entry design allows rapid wire insertion, ideal for high-volume manufacturing environments.

Rated for a maximum operating temperature of 105°C, this terminal is robust enough to perform reliably in challenging conditions encountered in control systems, lighting, motors, appliances, and transportation sectors. Its construction ensures compliance with demanding electrical and mechanical performance standards.

Constructed with high conductivity copper for excellent electrical performance. Nylon insulation provides durability and resistance to abrasion. Color-coded blue sleeve for easy wire size identification. Features a precision-formed ring tongue to ensure reliable connectivity.

Designed with serrated wire barrel for maximum contact and tensile strength after crimping. Suitable for applications including instruments, control panels, power supplies, and aerospace equipment. Meets stringent requirements for reliability in harsh circuit environments.

Maximum operating temperature rating of 105°C. Simple funnelled wire entry allows fast and efficient wire insertion during production. Manufactured in the United States ensuring high quality standards.

This PIDG Ring Terminal offers a versatile and robust connection solution for industrial and commercial electrical wiring tasks. For more products related to wire terminals and connectors, explore the Electronics & Electricals category at EnvMart.
