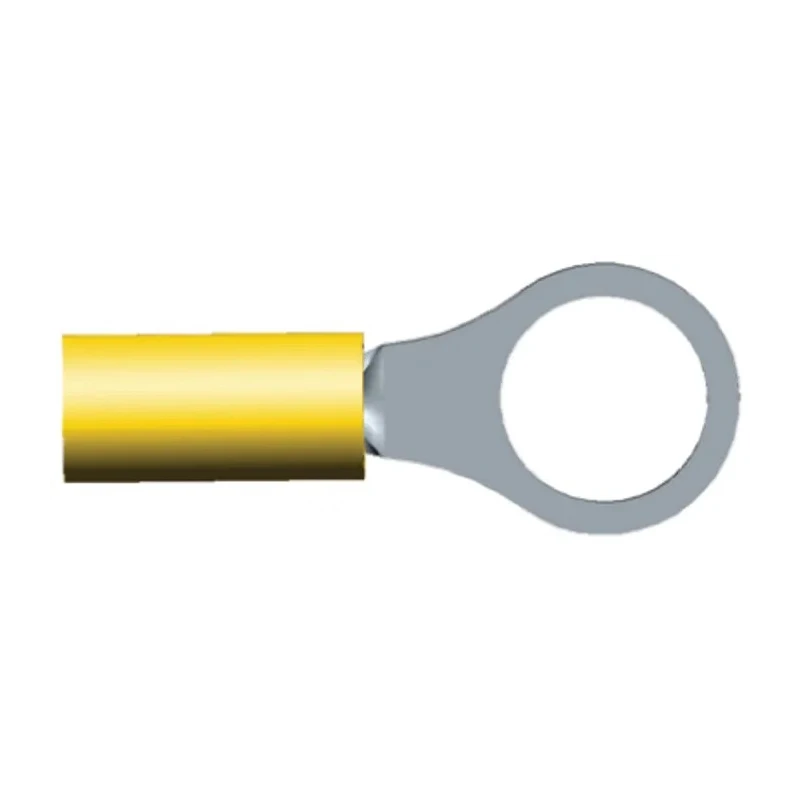

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG 22 AWG Wire Size Yellow 324075

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG 22 AWG Wire Size Yellow 324075

Name: TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG 22 AWG Wire Size Yellow 324075
Brand: TE Connectivity
SKU: 372057
Price: 0.99 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.46mm
Model	324075
Insulation	Insulated
Overall Length	18.8mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Outer Ring Diameter	6.35mm
Inner Ring Diameter	5mm
Stud Size	M5

Key Features

Manufactured with high conductivity copper and tin plating for optimal electrical contact.
Features an insulated nylon sleeve for wire size identification and insulation support.
Overall length of 18.8 mm ensures compact installation in electrical systems.
Serrated barrel design provides maximum tensile strength and secure wire crimping.
Suitable for operating temperatures up to 105°C making it reliable under thermal stress.
Fits M5 stud size applications providing universal compatibility with electrical panels.
Yellow sleeve colour aids quick wire size and tooling identification during assembly.
Complies with industrial wiring standards though no explicit certifications are listed.

Product Description

TE Connectivity 324075 PIDG Insulated Ring Terminal with M5 stud size and wire capacity ranging from 26 AWG to 22 AWG is constructed with a precision-formed high conductivity copper contact body and tin plating for excellent electrical performance. The barrel includes serrations that enhance contact integrity and tensile strength upon crimping. A copper sleeve inside the barrel enhances insulation support to prevent wire fraying.

The terminal is insulated with a yellow nylon sleeve, which not only protects the connection but also provides quick identification for wire size and tooling. Its funnelled wire entry offers ease of insertion, suitable for high-speed production lines.

This ring terminal has an overall length of 18.8 mm and is designed to securely fit M5 stud sizes, making it versatile for various electrical installations. It can operate reliably at temperatures up to 105°C, supporting demanding thermal environments.

These PIDG terminals meet or surpass industry standards including MIL-T-7928 Type II, Class 1 and 2, making them suitable for applications in instrumentation, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliance wiring.

High conductivity copper construction with tin plating for excellent contact. Nylon insulated sleeve enhances safety and wire identification. Serrated barrels ensure robust crimp tensile strength. Compatible with M5 stud size and suitable wire gauges from 26 AWG to 22 AWG.

Operating temperature up to 105°C supports a wide range of industrial applications. Designed for uniform and reliable crimping for secure electrical connections. Colour coding facilitates efficient assembly and maintenance procedures.

Robust design suitable for aerospace, automotive, and industrial electrical systems. Manufactured with precision for consistent performance and reliability.

This TE Connectivity PIDG ring terminal is an essential component for professional electrical wiring solutions, ensuring both mechanical and electrical integrity. Browse the Power Connectors and Ring Terminal categories on EnvMart for compatible components and accessories.
