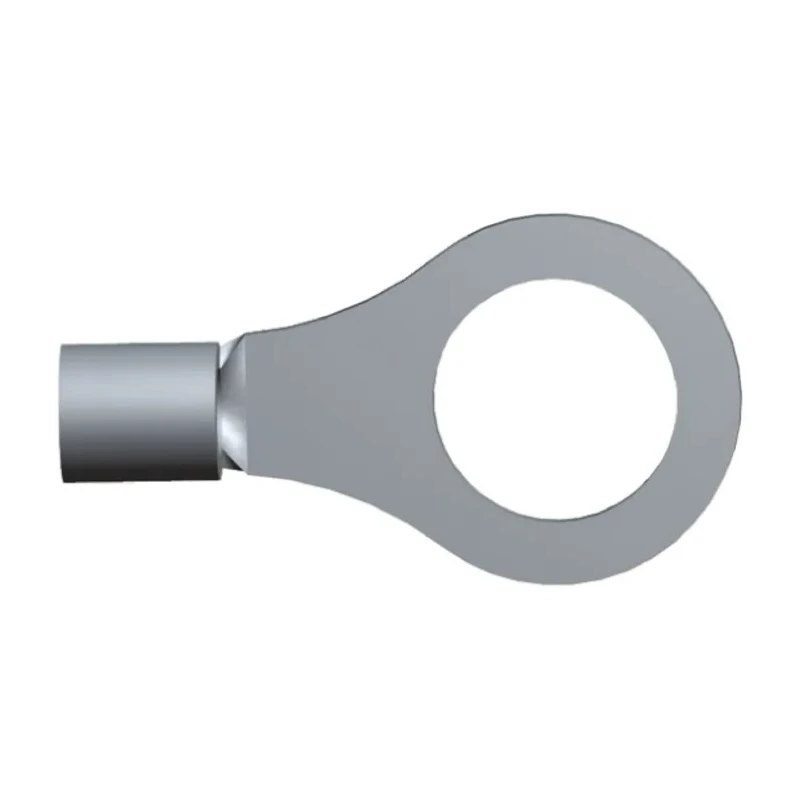

TE Connectivity Budget Uninsulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG 15.77mm Length 30693

TE Connectivity 30693 Budget Uninsulated Ring Terminal is engineered for secure, efficient wire termination with M5 stud size compatibility. This ring terminal caters to wire sizes between 22 AWG and 16 AWG, making it suitable for diverse electrical and electronic power connector applications.

Manufactured using high-quality copper contact material, the terminal features a tin plating that enhances conductivity and prevents corrosion to ensure long-lasting electrical connections. The uninsulated design allows for straightforward installation and effective performance in situations where insulation is not required or where additional protection is handled externally.

The terminal measures an overall length of 15.77mm, with an outer ring diameter of 7.92mm and an inner ring diameter of 5mm, matching the M5 stud size standard. The thickness of 0.79mm contributes to a robust yet compact build that integrates easily into tight assemblies and devices.

Designed to operate safely in environments up to 170°C, this ring terminal meets the demands of industrial, manufacturing, HVAC, and commercial electrical assemblies. Its compliance with RoHS directives assures conformance to environmental safety regulations by limiting hazardous substances.

The ring terminal features an uninsulated design for efficient electrical connectivity. Constructed with copper contact material and tin plating to ensure reliable conduction and corrosion resistance. Outer ring diameter is 7.92mm and inner ring diameter is 5mm, suitable for M5 studs.

The overall terminal length measures 15.77mm with a thickness of 0.79mm for a compact form factor. Suitable for use in electronic and electrical power connector applications. Supports a maximum operating temperature of 170°C for heavy-duty performance.

Complies with RoHS standards for environmental safety and restrictions on hazardous substances.

TE Connectivity's 30693 Ring Terminal provides reliable, cost-effective wire termination solutions that improve production efficiency and ensure durable electrical connections in a variety of industrial and commercial applications. This product is part of EnvMart's extensive catalog of electronic components and connectors, supporting professional installers and manufacturers worldwide.
