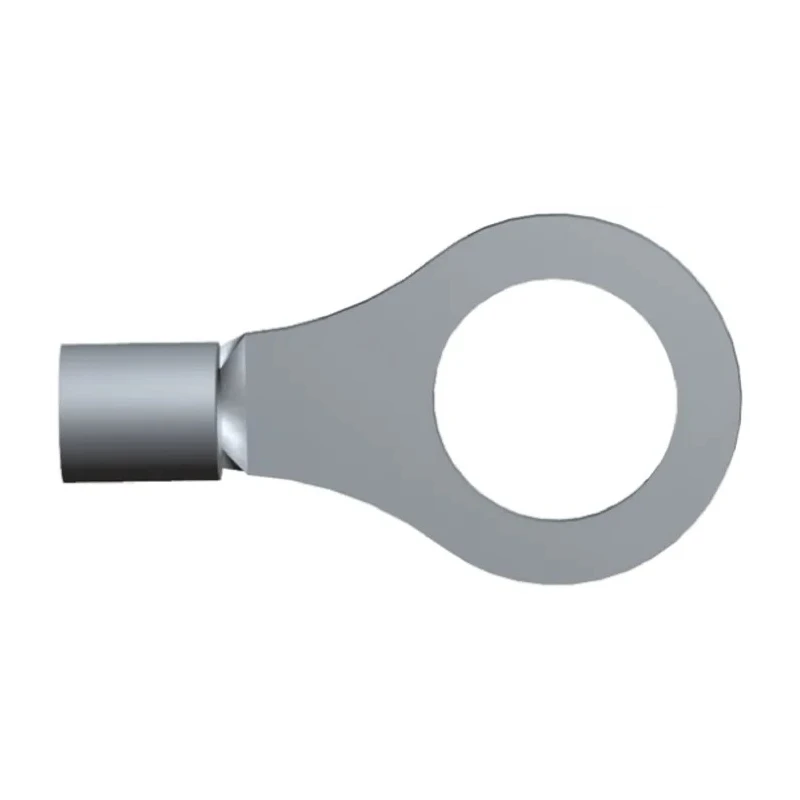

TE Connectivity Budget Uninsulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size 30693
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 30693 |
| Insulation | Uninsulated |
| Overall Length | 15.77mm |
| Contact Material | Copper |
| Series | Budget |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with copper contact material for excellent electrical conductivity.
- Tin-plated finish ensures corrosion resistance and durability.
- Uninsulated design suitable for compact electrical connections.
- Compact size with an overall length of 15.77 mm for tight installations.
- Supports wire sizes ranging from 22 AWG (0.26 mm²) to 16 AWG (1.65 mm²).
- Outer ring diameter measures 7.92 mm and inner ring diameter 5 mm for secure clamping.
- Meets RoHS standards ensuring environmental compliance.
- Can operate safely at temperatures up to 170°C for demanding environments.
Product Description
TE Connectivity 30693 Budget Uninsulated Ring Terminal is designed for secure and reliable electrical connections in industrial, electronic, and power applications. Featuring a copper contact material with tin plating, this uninsulated ring terminal ensures superior conductivity and corrosion resistance, making it ideal for environments requiring robust performance.
This ring terminal supports M5 stud size and wire sizes from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²), accommodating a range of cable gauges for versatile use. Its compact overall length of 15.77 mm and precise inner and outer ring diameters (5 mm and 7.92 mm respectively) deliver a tight and dependable fit, minimizing loose connections that could affect system reliability.
The budget series ring terminals are RoHS compliant, addressing environmental safety and disposal regulations. The uninsulated design allows for use in applications where insulation is not required or space is limited. Additionally, the terminal is rated for a maximum operating temperature of 170°C, suitable for demanding electrical conditions.
The thin 0.79 mm thickness contributes to mechanical durability without compromising flexibility, offering long-lasting service in electrical assemblies. These ring terminals are widely used in industrial equipment manufacturing, electrical panels, automotive wiring, HVAC systems, and other commercial electrical installations.
Constructed with copper for excellent electrical performance. Tin-plated surface for enhanced corrosion protection. Uninsulated design for space-saving applications. Supports wide wire size range with M5 stud compatibility.
Compact dimensions enable use in tight spaces. Designed to meet RoHS compliance standards. High temperature rating up to 170°C ensures reliability. Robust build with 0.79 mm thickness for durability. Explore more TE Connectivity power connectors and Ring Terminals for specialized electrical connection needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can operate safely at temperatures up to 170°C, making it suitable for demanding electrical conditions.
It supports wire sizes ranging from 22 AWG (0.26 mm²) to 16 AWG (1.65 mm²), accommodating a variety of cable gauges.
The outer ring diameter measures 7.92 mm and the inner ring diameter is 5 mm, providing a secure clamping fit.
The contact material is copper, which ensures excellent electrical conductivity.
This model is uninsulated, making it suitable for applications where insulation is not required or space is limited.
The overall length of this terminal is 15.77 mm, allowing for compact installations.
Yes, it meets RoHS standards, ensuring compliance with environmental safety and disposal regulations.
The thickness of this model is 0.79 mm, contributing to its mechanical durability without compromising flexibility.
It is compatible with an M5 stud size, allowing for secure connections.
This terminal is widely used in industrial equipment manufacturing, electrical panels, automotive wiring, and HVAC systems.
The contact surface is tin-plated, which enhances corrosion resistance and durability.
This model belongs to the Budget series, which is designed for cost-effective electrical connections.
