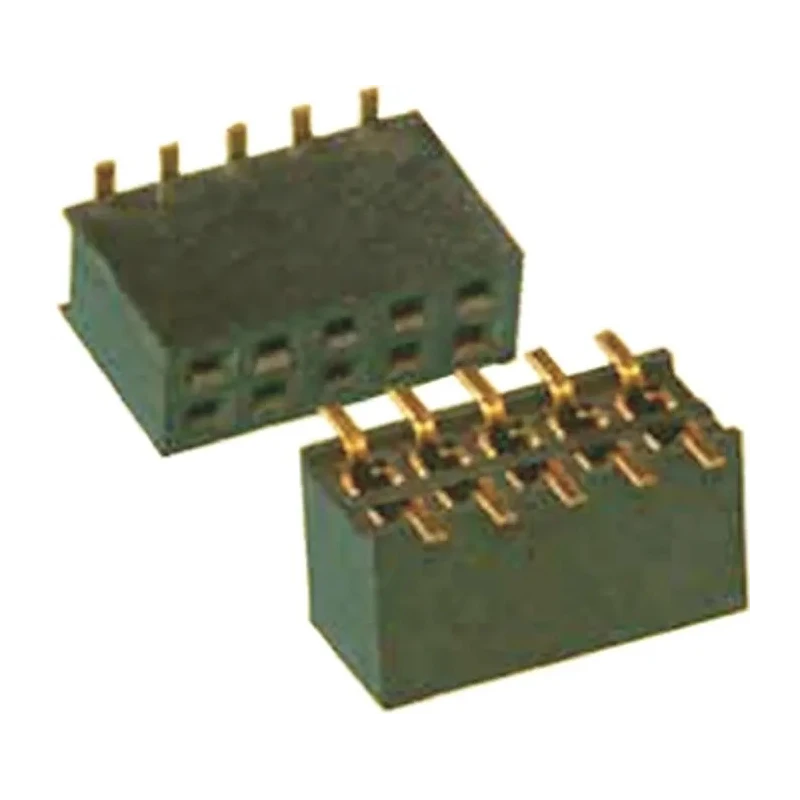

Amphenol Communications Solutions Minitek Series Straight Surface PCB Socket, 12-Contact, 2 Row, 1.27 mm 20021321-00012C4LF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 12A |
| Model | 20021321-00012C4LF |
| Mount Type | Surface |
| Contact Material | Copper |
| Series | Minitek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 6.9mm |
Key Features
- The socket features a surface mount termination type with solder connection.
- Connector supports a current rating of 12 A and a voltage rating of 125 V.
- Constructed with copper contacts plated in gold for reliable conductivity and corrosion resistance.
- Operates within a temperature range from -55°C to 125°C, suitable for diverse environments.
- Stacking height of 6.9 mm enables compact board assembly integration.
- Designed in black high-temperature thermoplastic with UL 94 V-0 flammability rating.
- Supports up to 100 mating cycles ensuring durability and longevity.
- Compatible with various Minitek series components for modular system design.
Product Description
Amphenol Communications Solutions 20021321-00012C4LF is a Minitek Series straight surface PCB Socket featuring 12 contacts arranged in 2 rows with a 1.27 mm pitch.
Designed for board-to-board connector systems, this surface mount socket utilizes solder termination for secure electrical connections. It delivers a current capacity of 12 A and operates up to 125 V, making it appropriate for industrial electronics, telecommunications, and power applications.
The contacts are fabricated from copper with gold plating, providing low resistance and high reliability under varied temperature conditions ranging from -55°C to 125°C. The device's stacking height is 6.9 mm, enabling space-efficient board layouts.
Compliant with Minitek series specifications, this socket uses high temperature black thermoplastic housing with UL 94 V-0 flammability rating, ensuring safety and durability. The connector supports up to 100 mating cycles, offering excellent performance over repeated use.
This component is manufactured in China and is ideal for use in electronic assembly, manufacturing, and repair environments where dependable board-to-board connectors are required.
The socket is a surface mount solder termination type for efficient PCB installation. It supports electrical ratings of 12 A current and 125 V voltage for reliable power handling. Constructed with gold-plated copper contacts for enhanced conductivity and corrosion resistance.
Operates continuously in temperature ranges from -55°C to 125°C. Black thermoplastic housing has UL 94 V-0 rating for fire safety compliance. Stacking height of 6.9 mm suits compact electronic designs. Durable against 100 mating cycles providing long life in applications.
Compatible with matching Minitek SMT headers and connectors for flexible design options. Explore the full range of Amphenol Communications Solutions connectors and components on EnvMart for your industrial, manufacturing, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this socket is 12 A.
It can handle a voltage of up to 125 V.
This model operates within a temperature range from -55°C to 125°C.
The socket features 12 contacts arranged in 2 rows.
It utilizes a solder termination type for secure electrical connections.
The stacking height of this model is 6.9 mm.
The contacts are made of copper and are plated in gold for enhanced conductivity and corrosion resistance.
Yes, it is compatible with various Minitek series components for modular system design.
The housing is constructed from black high-temperature thermoplastic with a UL 94 V-0 flammability rating.
This model supports up to 100 mating cycles, ensuring durability over repeated use.
This socket is manufactured in China.
It belongs to a board-to-board connector system.
