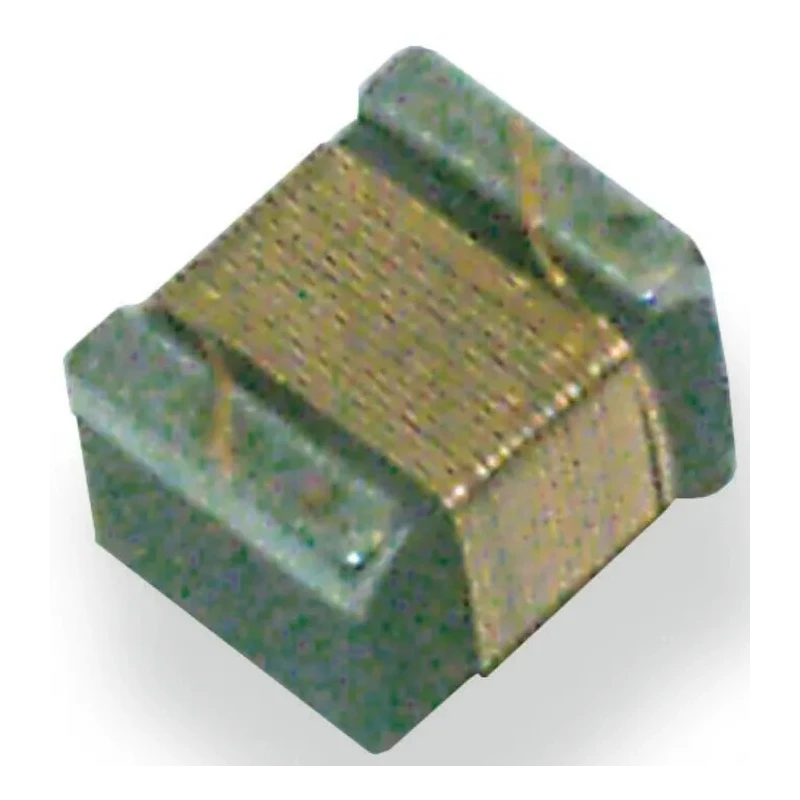

Murata Wirewound Surface Mount Inductor 8.2 nH ±5% 540 mA Idc Ferrite Core 0402 LQW15AN8N2J00D

Murata LQW15AN8N2J00D wirewound Surface Mount Inductor in a compact 0402 package features an 8.2 nH inductance with ±5% tolerance, designed with a ferrite core for high frequency stability. It supports a maximum DC current of 540 mA and exhibits low DC resistance of 140 mΩ ensuring efficient performance in demanding electronic circuits.

This inductor is suited for high-frequency applications such as wireless telecommunications including Bluetooth, GSM, and WLAN systems, operating reliably across a temperature range from -55°C to 125°C. The wirewound construction and molded design contribute to durability and consistent inductance values.

With a minimum quality factor of 25 and a maximum self-resonant frequency of 5.5 GHz, it enhances signal integrity in VHF and UHF applications. The component is RoHS compliant and features solder termination style enabling easy surface mount PCB assembly. The 1 mm length, 0.5 mm height, and 0.6 mm depth dimensions facilitate use in compact electronic designs.

Packaged on paper tape, it supports automated insertion for manufacturing efficiency. Originating from Japan, this inductor offers reliable, precision performance for industrial, telecommunications, and consumer electronics manufacturing.

Compact 0402 surface mount package for space saving designs. High frequency performance with 5.5 GHz self-resonant frequency. Stable wirewound ferrite core for minimal inductance variation. Wide operating temperature range from -55°C to 125°C.

RoHS compliant ensuring environmental safety.
