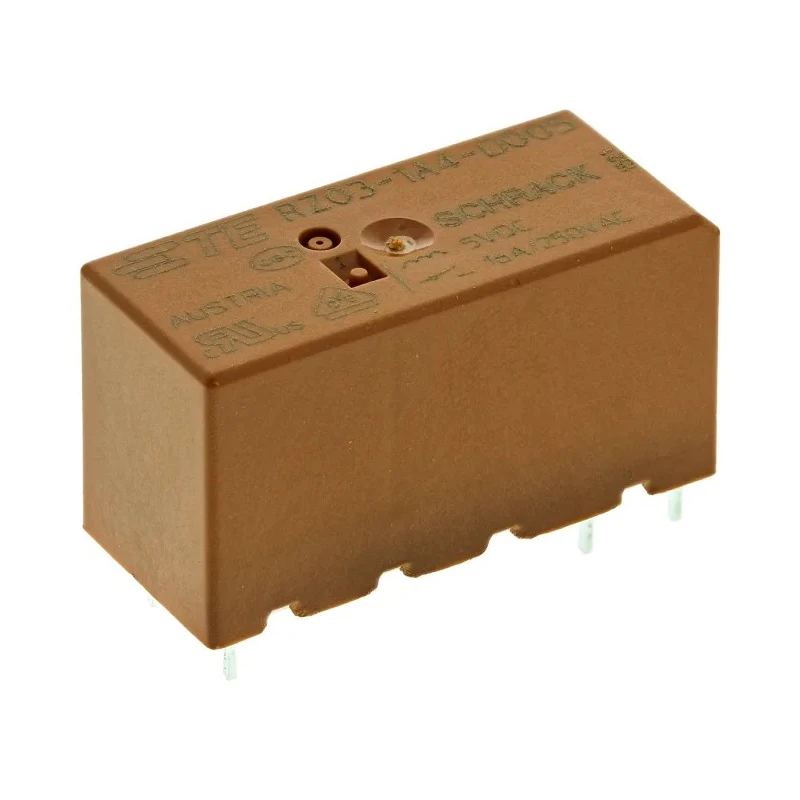

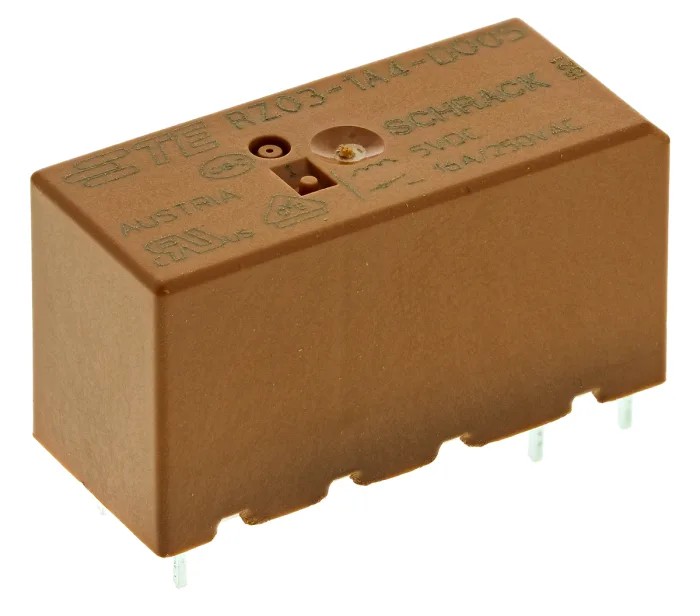

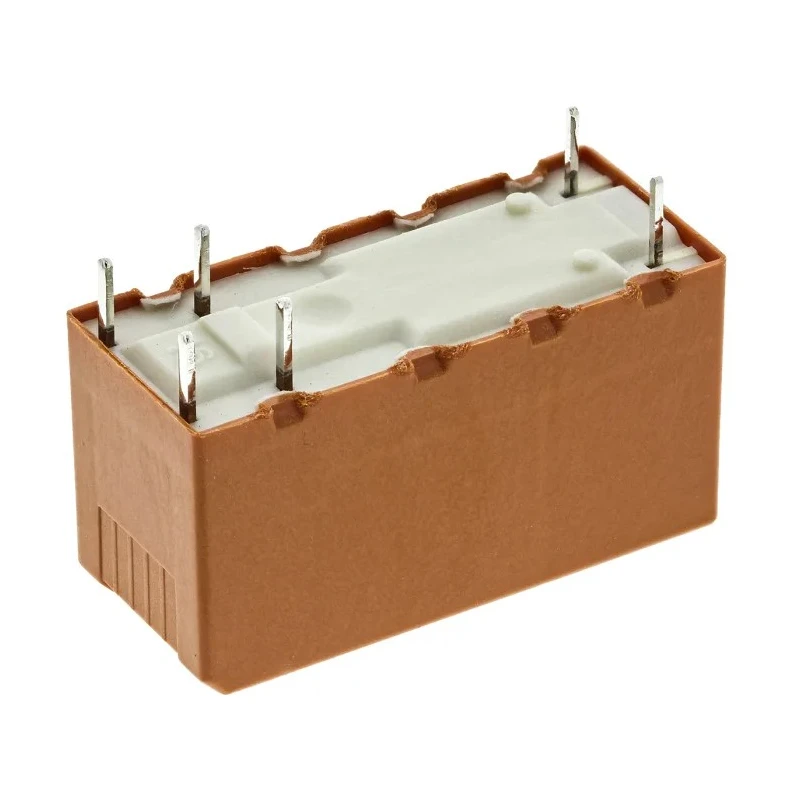

TE Connectivity RZ Series PCB Power Relay, 5V DC Coil, 16A Switching Current, SPST, Silver Alloy Contacts 1-1415899-3
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 60Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 420mW |
Key Features
- Equipped with a Silver Alloy SPST contact configuration for reliable electrical connection.
- Operates at a coil resistance of 60 ohms and coil power of 420mW for efficient energy use.
- Rated to switch AC voltages up to 400V AC, supporting diverse electrical systems.
- Compact dimensions measuring 29.00 x 12.70 x 15.70 mm facilitate PCB integration.
- Operating temperature range from -40°C to 85°C ensures stable performance in harsh environments.
- PCB pin terminal type ensures secure and easy installation.
- Meets RoHS standards for environmental compliance.
- Manufactured in Austria, reflecting high build quality standards.
Product Description
TE Connectivity 1-1415899-3 PCB Power Relay from the RZ Series is engineered for reliable PCB mounting applications requiring power switching capabilities with a 5V DC coil voltage and a high switching current of 16A. Its Silver Alloy SPST contacts provide robust electrical connectivity with a nominal coil resistance of 60 ohms and low coil power consumption at 420mW.
The relay supports switching AC voltages up to 400V AC and is suitable for industrial and automation applications where compact design and durability are critical. Its operational temperature range from -40°C to 85°C ensures functionality under extreme conditions. The relay's dimensions of 29.00 mm in length, 12.70 mm in width, and 15.70 mm in height make it ideal for integration in dense PCB layouts.
Featuring PCB pin terminals, this relay is designed for secure and straightforward mounting onto circuit boards. It adheres to RoHS standards, assuring compliance with environmental and safety regulations. Manufactured in Austria, the product reflects TE Connectivity’s commitment to high manufacturing standards and quality.
This relay is widely applicable in industrial automation, electrical control systems, HVAC, manufacturing equipment, and other sectors requiring reliable power relay components. Its compact size and specifications allow for use in both commercial and laboratory settings.
Silver Alloy contact material guarantees durability and reliable conductivity. Complies with RoHS environmental standards. PCB mount type with pin terminals for secure installation. Robust switching capacity of 16A suitable for high load circuits.
Wide operating temperature range ensures reliability in various climatic conditions. Compact dimensions facilitate integration in space-constrained designs. Manufactured to IEC60335-1 appliance industry standards. Explore the comprehensive range of Power Relay solutions available at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for high load circuits.
The relay operates with a coil voltage of 5V DC, which is essential for its activation.
It measures 29.00 mm in length, 12.70 mm in width, and 15.70 mm in height, facilitating compact PCB integration.
This unit can switch AC voltages up to 400V AC, making it versatile for various electrical systems.
It features a Single Pole Single Throw (SPST) contact configuration, ensuring reliable electrical connections.
The coil resistance is 60 ohms, which contributes to its efficient energy use.
The operating temperature range is from -40°C to 85°C, ensuring stable performance in harsh environments.
It is equipped with PCB pin terminals, allowing for secure and easy installation onto circuit boards.
Yes, it meets RoHS standards for environmental compliance, ensuring it adheres to safety regulations.
This relay is manufactured in Austria, reflecting high build quality standards.
The coil power consumption is 420mW, which supports efficient operation of the relay.
It is applicable in industrial automation, electrical control systems, HVAC, and manufacturing equipment, among other sectors.
