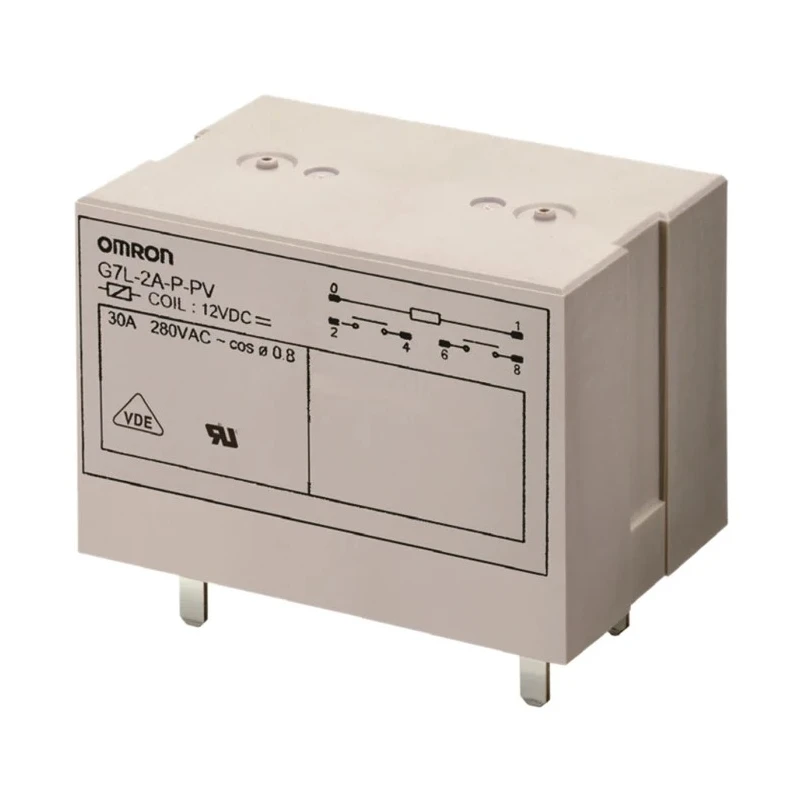

Omron Power Relay PCB Mounting 24V DC Coil 30A Switching Current DPST G7L-2A-P-PV DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 47mm |
| Length | 52.5mm |
| Model | G7L-2A-P-PV DC24 |
| Width | 35.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 250Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.9W |
| Switching Power | 1.9W |
Key Features
- The relay is built with silver alloy contacts ensuring high conductivity and durability.
- It supports a switching AC voltage of 125V AC with a switching power of 1.9W.
- Coil resistance is 250Ω providing stable coil operation with 1.9W coil power consumption.
- Operates reliably within temperature ranges from -25°C to 60°C for versatile industrial use.
- Compact dimensions of 52.5mm length, 35.5mm width, and 47mm height allow easy PCB integration.
- Contact resistance is low at 50mΩ, ensuring minimal energy loss during switching.
- The relay complies with CSA and UL standards and is built with flame-resistant UL94V-0 insulation material.
- Suitable for industrial, electrical automation, control panels, and power management applications.
Product Description
Omron G7L-2A-P-PV DC24 is a high-capacity power relay designed for printed circuit board (PCB) mounting applications. Featuring a 24V DC coil voltage and a 30A switching current with a DPST contact configuration, this relay is ideal for controlling electrical loads in industrial and automation environments.
Constructed with silver alloy contacts, the relay ensures excellent electrical conductivity and long service life with a low contact resistance of 50mΩ. It supports switching AC voltages up to 125V AC with a switching power of 1.9W, making it suitable for moderate power applications.
The coil resistance of 250 ohms stabilizes coil magnetism and current consumption with a coil power of 1.9W. It is rated to operate reliably across a broad temperature range from -25°C minimum to 60°C maximum, making it adaptable to various industrial conditions.
Dimensionally compact with length 52.5mm, width 35.5mm, and height 47mm, the relay fits conveniently on PCB layouts and offers solder-type terminal connections for secure mounting. The flame-resistance UL94V-0 insulation material enhances safety standards compliance.
This relay has received CSA and UL approvals, assuring quality and safety for use in electrical panels, HVAC systems, manufacturing machinery, and power management controls. The relay is built with silver alloy contacts ensuring high conductivity and durability.
It supports a switching AC voltage of 125V AC with a switching power of 1.9W. Coil resistance is 250Ω providing stable coil operation with 1.9W coil power consumption. Operates reliably within temperature ranges from -25°C to 60°C for versatile industrial use.
Compact dimensions of 52.5mm length, 35.5mm width, and 47mm height allow easy PCB integration. Contact resistance is low at 50mΩ, ensuring minimal energy loss during switching. The relay complies with CSA and UL standards and is built with flame-resistant UL94V-0 insulation material.
Suitable for industrial, electrical automation, control panels, and power management applications. Explore the extensive range of Omron relays and power components on EnvMart for reliable and efficient industrial electrical solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 30A, making it suitable for controlling electrical loads in various applications.
This model operates with a coil voltage of 24V DC, which is necessary for its activation.
The relay measures 52.5mm in length, 35.5mm in width, and 47mm in height, allowing for easy integration into PCB layouts.
It features a DPST (Double Pole Single Throw) contact configuration, suitable for various control applications.
The relay supports a maximum switching AC voltage of 125V AC, making it suitable for moderate power applications.
The coil resistance is 250Ω, which helps stabilize coil operation and current consumption.
The contacts are made of silver alloy, ensuring high conductivity and durability during operation.
The contact resistance is low at 50mΩ, which minimizes energy loss during switching.
It operates reliably within a temperature range of -25°C to 60°C, making it adaptable to various industrial conditions.
The relay complies with CSA and UL standards, ensuring quality and safety for industrial applications.
It features solder-type terminal connections, providing secure mounting on printed circuit boards.
The relay has a switching power of 1.9W, which is consistent with its coil power consumption.
