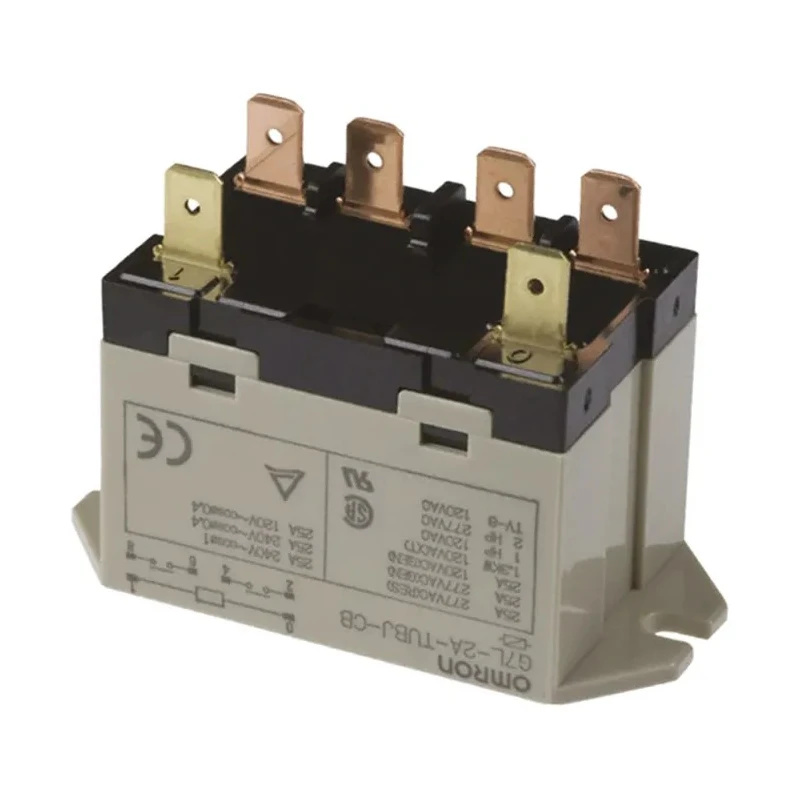

Omron Panel Power Relay DPST 100V dc Coil 25A Switching Current G7L-2A-TUB DC100

Omron G7L-2A-TUB DC100 is a panel power relay designed for industrial and automation applications requiring reliable switching performance with a 100V dc coil and a 25A switching current capacity. It features a DPST (Double Pole Single Throw) contact configuration, making it suitable for controlling multiple circuits simultaneously in electrical panels and machinery.

Constructed with high-quality silver alloy contacts, the relay ensures excellent conductivity and long service life, while the quick connect terminal type allows for easy installation and replacement in panel setups. The relay operates within a wide temperature range of -25°C to 60°C, suitable for varied industrial environments.

Its compact dimensions of 68.5mm in length, 47mm in height, and 33.5mm in width enable efficient space utilization in control panels. The coil has a resistance of 2.6kΩ and power consumption of 1.9W, supporting stable operation even with momentary voltage drops up to 50% of the rated voltage, enhancing resilience in demanding conditions.

Compliant with international standards including TUV, UL, CSA, IEC, and RoHS, this relay provides assured quality and safety for industrial, manufacturing, HVAC, and electrical automation systems. The use of flame-resistant UL94V-0 insulation materials further enhances operational safety.

Designed for panel mounting with quick connect terminals. Supports switching AC voltage up to 250V ac. Operates reliably in wide temperature range from -25°C to 60°C. Durable silver alloy contacts for enhanced conductivity and longevity.

Coil resistance 2.6kΩ and coil power 1.9W for stable operation. Compact dimensions: 68.5mm length, 47mm height, 33.5mm width. Compatible with momentary voltage drops up to 50% of rated coil voltage. Meets TUV, UL, CSA, IEC, RoHS standards for safety and quality.

Uses flame-resistant UL94V-0 insulation material for increased safety. Ideal for industrial, electrical, automation, and manufacturing applications.

Omron power relays are widely used across electrical control panels, automation systems, and manufacturing equipment for reliable switching and efficient control. Explore more quality Power Relays and related products at EnvMart for your industrial and commercial needs.
