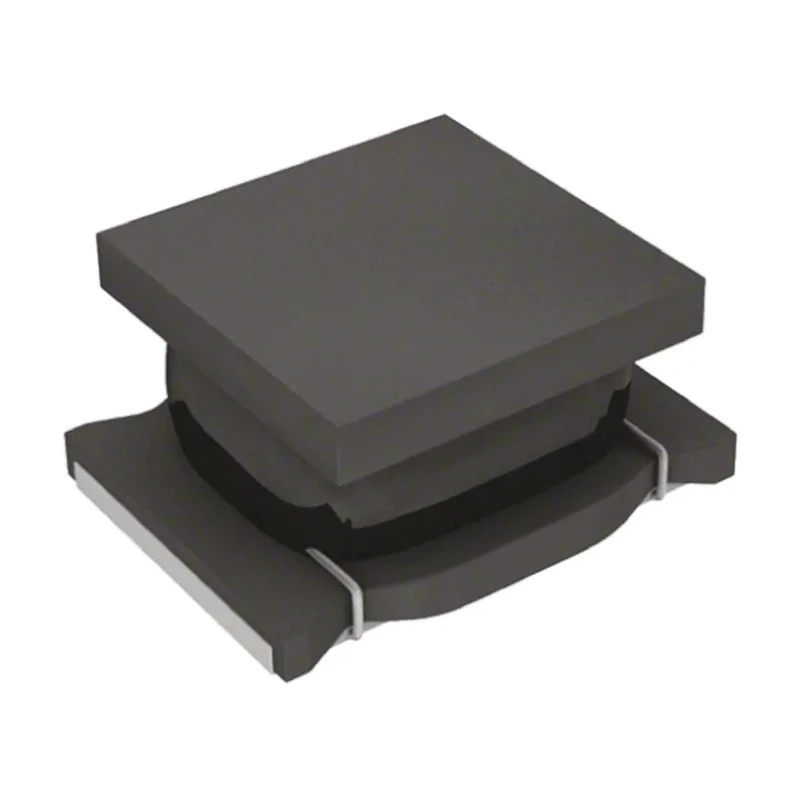

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30% 1A LQH32PN4R7NN0L

Murata LQH32PN4R7NN0L is a 1210 size shielded wirewound surface mount inductor featuring a ferrite core with inductance of 4.7 μH and tolerance of ±30%. Rated for a maximum DC current of 1 A, this inductor offers high current capacity and low DC resistance of 180 mΩ, making it ideal for use as chokes in DC power supply circuits and other electronic applications.

The compact dimensions of 3.2 mm length, 1.55 mm height, and 2.5 mm depth allow dense board layouts. It has a magnetically shielded construction minimizing electromagnetic interference with adjacent components. The solder termination style enables reliable surface mount assembly.

Operating temperature range is from -40°C to 85°C, suitable for automotive, industrial, and other commercial electronics. The inductor also supports high frequency operation up to its maximum self-resonant frequency of 40 MHz.

Applications include industrial, automotive, telecommunications, and consumer electronics circuit designs. Magnetically shielded wirewound construction for EMI reduction. High current rating with low DC resistance for efficiency.

Compact 1210 surface mount package ideal for space-constrained PCB assemblies. Ferrite core material providing stable inductance behavior. Wide operating temperature range supports harsh environments. Compatible with automated soldering and assembly processes.

RoHS compliant for environmental safety and regulatory compliance. Suitable for choke and filtering applications in power supply circuits. High self-resonant frequency supports HF electronic designs.
