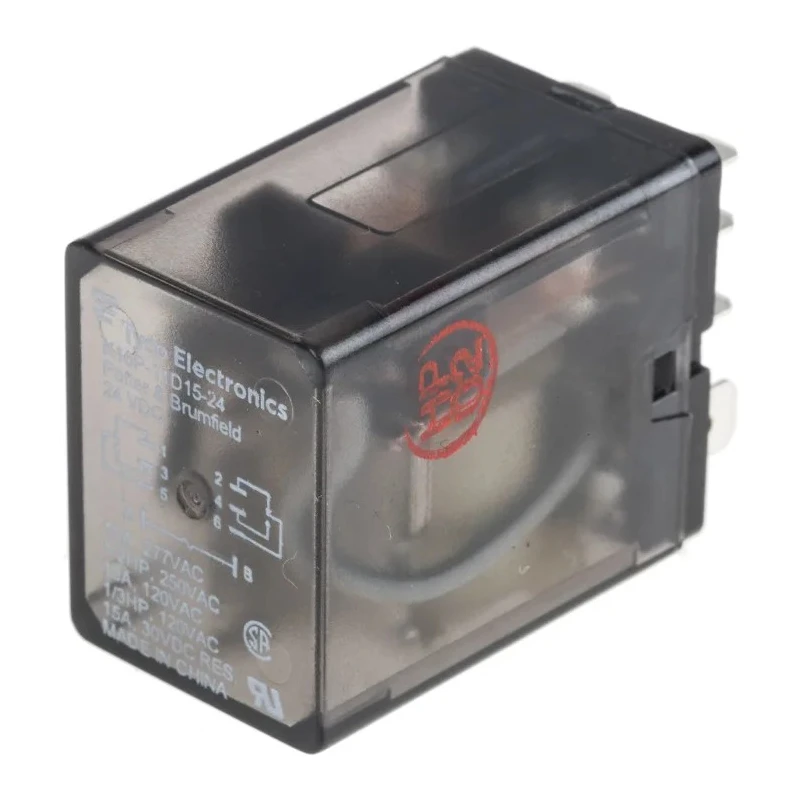

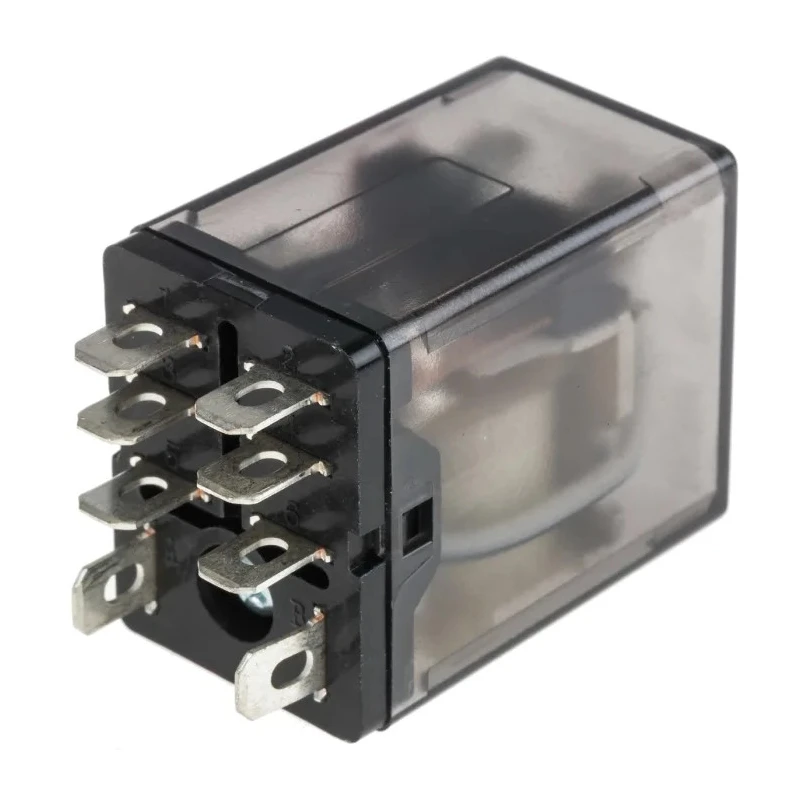

TE Connectivity Power Relay DPDT 24V DC Coil, 15A Switching Current, 600V AC Voltage, Silver Alloy Contacts K10P-11D15-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 34.9mm |
| Length | 28.2mm |
| Model | K10P-11D15-24 |
| Width | 21.8mm |
| Contact Material | Silver Alloy |
| Series | K10 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 900mW |
| Switching Power | 900mW |
Key Features
- This power relay features double pole double throw (DPDT) contact configuration for versatile switching.
- Designed with silver alloy contacts providing high conductivity and durability.
- Operates at coil voltage of 24V DC with coil resistance of 650 ohms and power rating of 900 mW.
- Suitable for switching AC voltages up to 600V AC and contact current rated at 15A.
- Operating temperature range from -45°C to +70°C ensuring performance in harsh environments.
- Compact dimensions with length 28.2mm, height 34.9mm, and width 21.8mm.
- Terminal type is quick connect for easy installation and maintenance.
- Meets standards and approvals including UR, UL, and CSA for safety and quality assurance.
Product Description
TE Connectivity K10P-11D15-24 Power Relay is a high-performance DPDT (Double Pole Double Throw) relay designed for industrial, electrical, automation, and control applications. It operates with a 24V DC coil, enabling reliable switching with a contact current rating of 15A and switching AC voltage capability up to 600V. This relay incorporates silver alloy contacts that provide excellent conductivity and resistance to wear, ensuring longevity in demanding environments.
The K10 series miniature general relay is engineered for optimal performance across a wide temperature range from -45°C to +70°C, making it suitable for extreme environmental conditions encountered in manufacturing, HVAC, and commercial automation systems. The coil resistance is rated at 650 ohms with coil power consumption of 900 mW, balancing efficient operation with power economy.
The relay's physical dimensions are compact, measuring 28.2 mm in length, 34.9 mm in height, and 21.8 mm in width, allowing for integration in space-constrained equipment. Quick connect terminal types simplify installation in control panels and systems requiring frequent maintenance or replacement.
TE Connectivity's K10P-11D15-24 relay complies with recognized global standards including UR, UL, and CSA, assuring users of quality and safe performance according to stringent industrial norms.
This power relay is optimized for electrical, automation, and manufacturing industries requiring durable and reliable switching components. Its DPDT configuration supports applications needing two separate circuits controlled simultaneously.
Compact size facilitates integration in a variety of control system designs. The relay provides stable performance over a broad temperature range, supporting harsh industrial conditions. Quick connect terminals reduce installation time and improve serviceability in complex assemblies.
Meeting international standards ensures compatibility and dependability for various industrial applications.
For enhanced reliability in Power Relay applications, TE Connectivity’s K10P-11D15-24 offers superior performance and compliance. For more industrial-grade relays and connectors, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching between two separate circuits.
The maximum switching current for this relay is rated at 15A, making it suitable for various electrical applications.
It operates with a coil voltage of 24V DC and has a coil resistance of 650 ohms, which balances efficient operation with power economy.
This unit can switch AC voltages up to 600V AC, providing flexibility in various electrical applications.
The relay has compact dimensions measuring 28.2 mm in length, 34.9 mm in height, and 21.8 mm in width, facilitating integration into space-constrained environments.
It operates within a temperature range from -45°C to +70°C, ensuring performance in harsh environments.
This relay is equipped with quick connect terminals, which simplify installation and maintenance in control panels.
The contacts are made from silver alloy, which provides high conductivity and durability for reliable performance.
It complies with recognized global standards including UR, UL, and CSA, ensuring safety and quality assurance.
The coil power consumption for this relay is rated at 900 mW, balancing efficient operation with power economy.
This power relay is optimized for industrial, electrical, automation, and control applications, making it suitable for various sectors.
This model is part of the K10 series of miniature general relays, designed for optimal performance in various applications.
