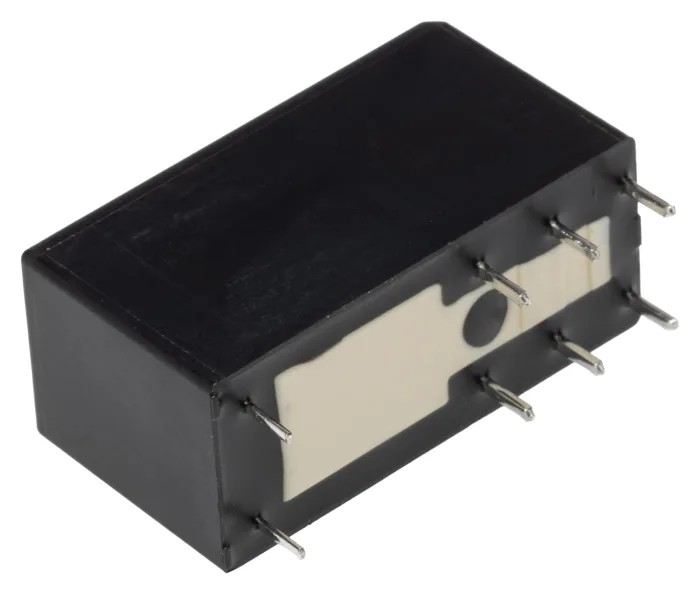

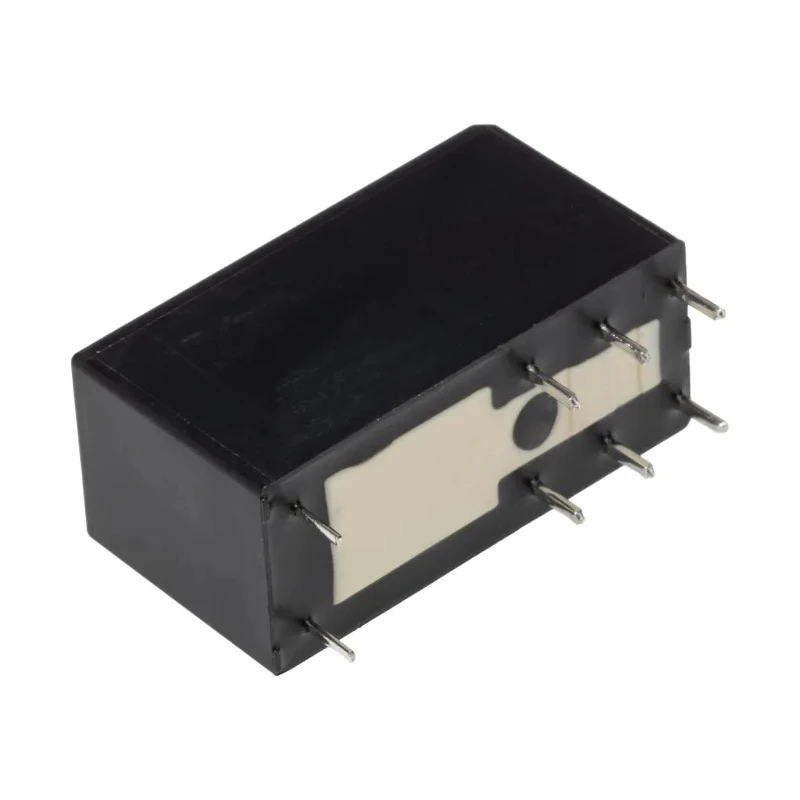

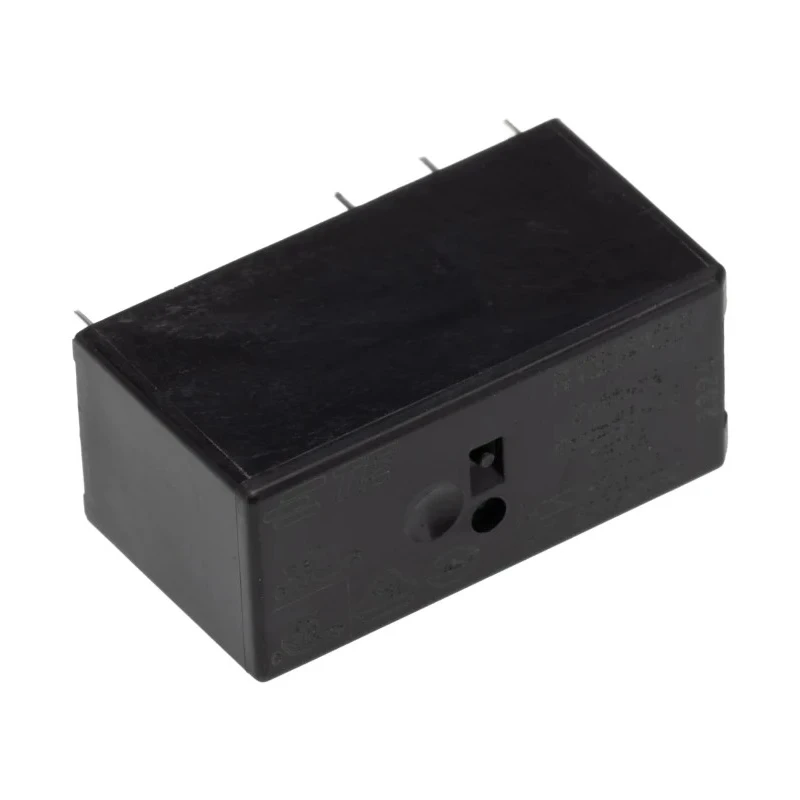

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RTE24012F
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24012F |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type to ensure secure connections.
- Operates within a temperature range of -45°C to 85°C for versatile environmental use.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm for efficient PCB space utilization.
- Constructed with silver nickel alloy contacts for reliable electrical performance.
- Coil resistance is 360Ω and coil power consumption is 400mW for efficient operation.
- Compliant with UR, UL, and CSA standards ensuring safety and quality.
- Suitable for applications in interface systems, automation, domestic appliances, security lighting, and heating systems.
Product Description
TE Connectivity RTE24012F PCB Power Relay is a high-quality component featuring a 12V DC coil and a switching current rating of 8A with DPDT (Double Pole Double Throw) contact configuration. This relay is specifically designed for printed circuit board (PCB) mounting and uses solder type terminals to provide robust electrical connections in various industrial and commercial applications.
The relay operates efficiently within a wide temperature range from -45°C minimum to 85°C maximum, ensuring reliable performance in diverse environmental conditions. Its compact form factor, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, makes it suitable for space-limited applications on PCBs.
Constructed with silver nickel alloy contacts, the relay offers excellent conductivity and durability, which supports high switching reliability and longevity. It consumes 400mW coil power and has a coil resistance of 360Ω, optimizing power usage during operation.
The product complies with recognized safety and quality standards including UR, UL, and CSA certifications, making it suitable for safety-critical applications.
This relay finds utility across a range of industrial and commercial sectors including automation systems, domestic device control, heating systems, security lighting setups, and various interface applications requiring dependable electrical switching.
Designed for PCB mounting with solder terminals. Silver nickel alloy contacts for high conductivity. Wide operating temperature range from -45°C to 85°C. Compact dimensions (29mm x 12.7mm x 15.7mm) for PCB integration. UL, UR, and CSA approved for safety compliance.
Efficient 12V DC coil with 400mW power consumption. Applications include automation, domestic, security, and lighting. Choose TE Connectivity for reliable power relay solutions in electronic designs, available in the Power Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity RTE24012F power relay has a switching current rating of 8A.
This model operates with a coil voltage of 12V DC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance of the RTE24012F is 360Ω.
It is designed for PCB mounting with solder terminals for secure connections.
The relay operates efficiently within a temperature range of -45°C to 85°C.
The contacts of this relay are constructed with silver nickel alloy, ensuring reliable electrical performance.
It complies with UR, UL, and CSA standards, ensuring safety and quality.
The coil power consumption is 400mW.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
This relay is suitable for applications in automation systems, domestic appliances, security lighting, and heating systems.
The maximum switching AC voltage for this relay is 400V AC.
