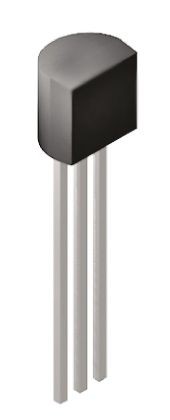

onsemi Fixed Shunt Micropower Voltage Reference Diode 2.5V ±1.5% Accuracy 3-Pin TO-92 LM385BZ-2.5G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Fixed Shunt Micropower Voltage Reference Diode 2.5V ±1.5% Accuracy 3-Pin TO-92 LM385BZ-2.5G

Name: onsemi Fixed Shunt Micropower Voltage Reference Diode 2.5V ±1.5% Accuracy 3-Pin TO-92 LM385BZ-2.5G
Brand: onsemi
SKU: 368512
Price: 0.7 USD
Availability: InStock



Category Voltage Reference Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	5.33mm
Length	5.2mm
Model	LM385BZ-2.5G
Mount Type	Through Hole
Output type	Fixed
Series	LM385BZ
Temperature Coefficient	80 ppm/°C
Output Current	20mA
Topology	Shunt
Maximum Operating Temperature	70°C
Package Type	TO-92
Minimum Operating Temperature	0°C
Reference Type	Fixed
Maximum Input Voltage	2.58V
Standards/Approvals	Pb-Free, RoHS
Minimum Input Voltage	2.43V
Pin Count	3
Reference Voltage	2.5V
Initial Accuracy	±1.5 %

Key Features

Operates with a reference voltage of 2.5V for precise voltage regulation.
Features a 3-pin TO-92 package suitable for through-hole mounting.
Provides a maximum output current of 20mA for low-power applications.
Designed with a temperature coefficient of 80 ppm/°C for thermal stability.
Supports an operating temperature range from 0°C to 70°C for reliable performance.
Enables stable operation with a minimum input voltage of 2.43V and maximum input voltage of 2.58V.
Complies with Pb-Free and RoHS environmental standards for safety.
Topology is a shunt type for fixed voltage reference applications.

Product Description

onsemi LM385BZ-2.5G Fixed Shunt Micropower Voltage Reference Diode is a precision semiconductor device designed to provide a stable 2.5V reference voltage with an initial accuracy of ±1.5%. Packaged in a compact 3-pin TO-92 form factor for easy through-hole PCB mounting, it is ideal for applications requiring reliable voltage reference performance.

The diode features a low temperature coefficient of 80 ppm/°C, ensuring minimal voltage drift across the operating temperature range of 0°C to 70°C. It supports a maximum output current of 20mA, making it suitable for micropower circuits and power management functions.

This device operates under input voltages ranging from a minimum of 2.43V to a maximum of 2.58V, with a fixed topology designed for precise voltage regulation. The onsemi LM385BZ-2.5G is compliant with Pb-Free and RoHS environmental standards, ensuring it meets global safety and environmental requirements.

Typical applications include voltage reference for analog-to-digital converters, digital voltmeters, and other precision measurement instruments used in industrial control, laboratory equipment, and consumer electronics.

Operates with a reference voltage of 2.5V for precise voltage regulation. Features a 3-pin TO-92 package suitable for through-hole mounting. Provides a maximum output current of 20mA for low-power applications. Designed with a temperature coefficient of 80 ppm/°C for thermal stability.

Supports an operating temperature range from 0°C to 70°C for reliable performance. Enables stable operation with a minimum input voltage of 2.43V and maximum input voltage of 2.58V. Complies with Pb-Free and RoHS environmental standards for safety.

Topology is a shunt type for fixed voltage reference applications.

This Voltage Reference Diode from onsemi delivers dependable performance across a variety of industrial and electronic applications, ensuring precision voltage control in demanding environments. Explore more voltage reference solutions and onsemi products on EnvMart for comprehensive electronics component procurement.
