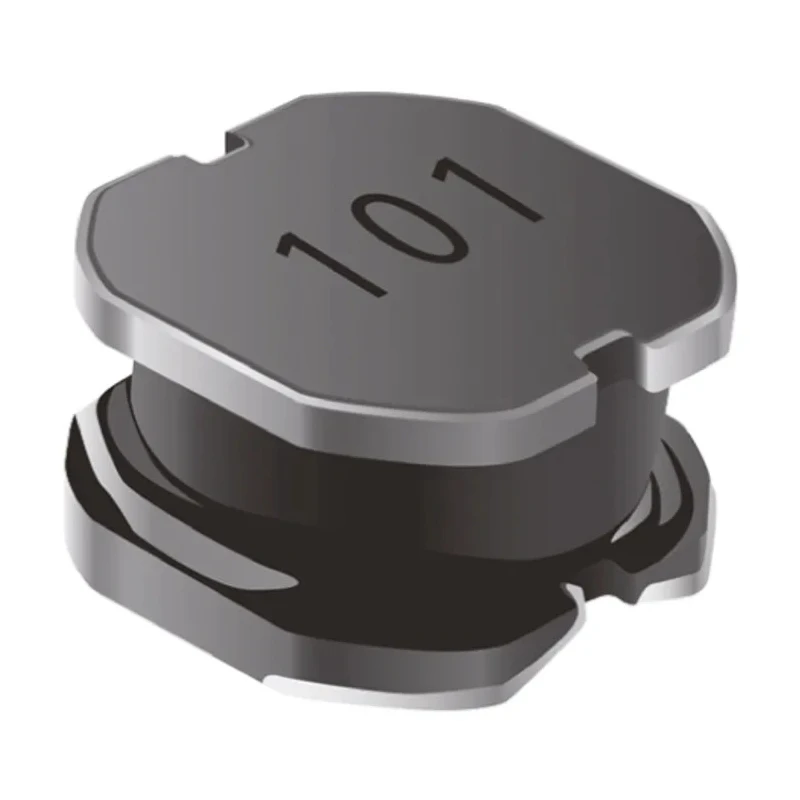

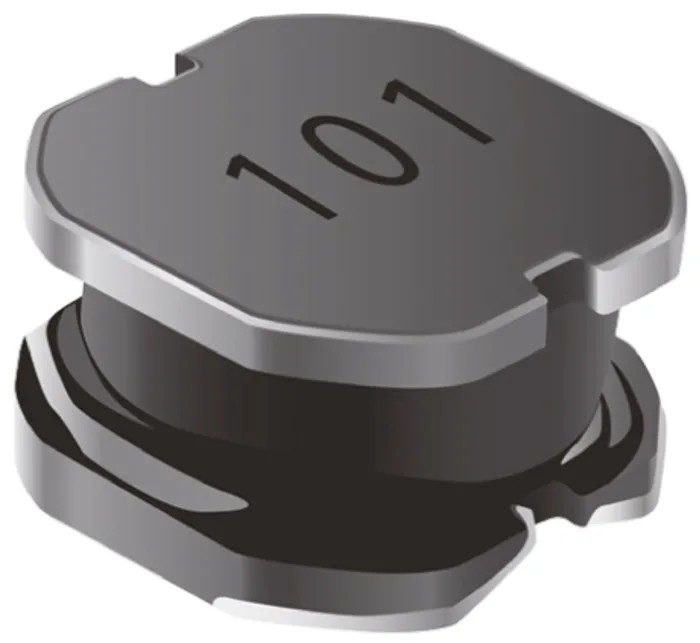

Bourns 1060 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 5.4 A Idc Q:25 SRN1060

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1060 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 5.4 A Idc Q:25 SRN1060

Name: Bourns 1060 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 5.4 A Idc Q:25 SRN1060
Brand: BOURNS
SKU: 368106
Price: 0.63 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6mm
Length	9.8mm
Model	SRN1060
Depth	10mm
Packaging	Reel
Series	SRN1060
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	1060
Maximum DC Current	5.4A
Pin Count	2
Maximum DC Resistance	29mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Minimum Quality Factor	25
Inductor Construction	Wirewound

Key Features

Designed with a ferrite core for enhanced magnetic shielding.
Inductance value of 10 microhenries with ±20% tolerance to maintain circuit stability.
Maximum DC current rating of 5.4 amperes suitable for high current applications.
Semi magnetically shielded construction reduces electromagnetic interference.
Compact 1060 package case with height of 6 mm and depth of 10 mm for surface mounting.
RoHS compliant solder termination style ensures environmental safety.
Operating temperature range from -40°C up to 125°C for reliability in harsh environments.
High quality factor of minimum 25 to maintain efficient performance.

Product Description

Bourns SRN1060 is a shielded wirewound surface mount inductor designed with a ferrite core providing 10 μH inductance and a tolerance of ±20%. It supports a maximum DC current of 5.4 A, making it suitable for power electronics and filtering applications.

This surface mount inductor features semi magnetic shielding to minimize EMI and operates reliably across a temperature range of -40°C to 125°C. Its compact 1060 package size (9.8 mm length, 6 mm height, and 10 mm depth) makes it ideal for space-constrained electronic circuits.

The inductor is constructed using wirewound technology with molded design and solder termination style compliant with RoHS standards. A minimum quality factor of 25 ensures efficient inductance behavior at operating frequencies.

Applications include DC/DC converters, notebook computers, digital video cameras, televisions, and LCD displays where stable inductance and current handling are critical. Ferrite core enhances magnetic performance and shielding.

10 μH typical inductance with ±20% tolerance supports precision circuit design. 5.4 A maximum DC current rating accommodates demanding power requirements. Compact 1060 package footprint suitable for surface mount technology assembly.

RoHS compliant and environmentally friendly solder termination style. Reliable operation across -40°C to 125°C temperature range. Designed for automotive and industrial electronic applications. Efficient wirewound construction with molded encapsulation for durability.

Packaging on reels supports automated insertion and manufacturing processes.

This product fits into the broader category of Surface Mount Inductors widely used in electronic and electrical industries for energy storage, filtering, and voltage regulation tasks. Bourns SRN1060 stands as a reliable component for industrial, commercial, and consumer electronic equipment manufacturing.
