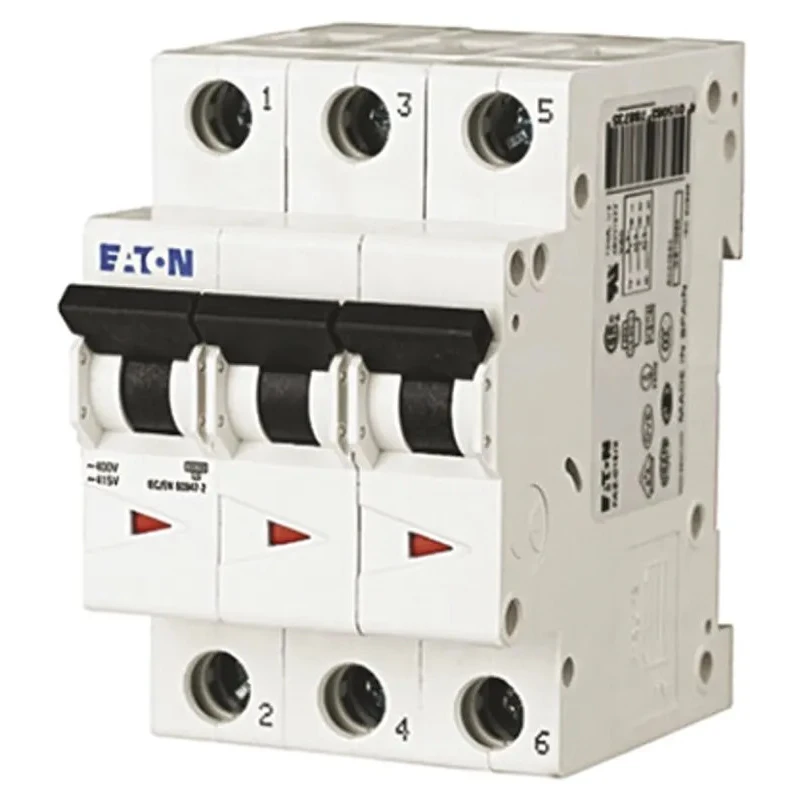

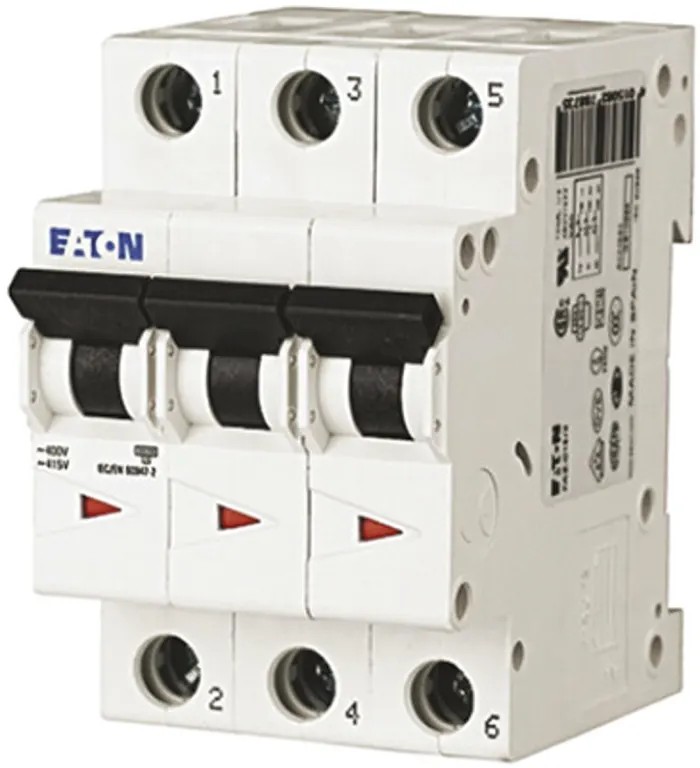

Eaton xEffect Miniature Circuit Breaker 3-Pole 10A Type D 400V ac 6 kA Breaking Capacity 168080 FAZ6-D10/3
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 168080 FAZ6-D10/3 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | xEffect |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- This circuit breaker features a 3-pole configuration to protect multi-phase circuits effectively.
- The rated current is 10 amperes, suitable for medium load applications.
- Type D tripping characteristic allows handling of high inrush currents without nuisance tripping.
- Designed for installation on DIN rails with screw terminal connections for secure wiring.
- It meets IEC and EN 60898 standards ensuring high safety and performance compliance.
- The device has an IP20 rating for protection against solid objects and no protection against liquids.
- With a compact width of 17.5 mm and a depth of 62 mm, it fits well in electrical panels.
- Equipped with a toggle switch actuator for easy manual operation and reset.
Product Description
Eaton 168080 FAZ6-D10/3 xEffect Miniature Circuit Breaker is a high quality 3-pole electrical protection device rated at 10 amperes and 400V AC. It is designed for industrial, commercial, and domestic electrical distribution systems requiring reliable overcurrent protection with a 6 kA breaking capacity.
This Type D MCB is suited for applications with high inrush currents such as motors and transformers, preventing nuisance trips while ensuring circuit safety. The device mounts easily on DIN rails and features screw terminals for robust and secure electrical connections.
Certified to IEC and EN 60898 standards, this circuit breaker ensures compliance with international safety and performance norms. The instant trip break time and toggle switch reset actuator provide operational efficiency and user-friendly handling.
With an IP20 ingress protection rating, it protects against access to hazardous parts and solid foreign objects but is not protected against liquids, making it ideal for indoor panel use. Its compact dimensions of 17.5 mm width and 62 mm depth optimize panel space.
This circuit breaker features a 3-pole configuration to protect multi-phase circuits effectively. The rated current is 10 amperes, suitable for medium load applications. Type D tripping characteristic allows handling of high inrush currents without nuisance tripping.
Designed for installation on DIN rails with screw terminal connections for secure wiring. It meets IEC and EN 60898 standards ensuring high safety and performance compliance. The device has an IP20 rating for protection against solid objects and no protection against liquids.
With a compact width of 17.5 mm and a depth of 62 mm, it fits well in electrical panels. Equipped with a toggle switch actuator for easy manual operation and reset.
This Eaton xEffect Miniature Circuit Breaker is widely used in industrial automation, electrical distribution boards, commercial buildings, and HVAC systems to safeguard electrical circuits against overloads and short circuits, enhancing system reliability and safety.
Explore the Eaton xEffect series for additional Miniature Circuit Breaker options and accessories suitable for various electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 10 amperes, suitable for medium load applications.
It features a breaking capacity of 6 kA, allowing it to effectively interrupt high fault currents.
The rated AC voltage for this circuit breaker is 400V.
This model has a 3-pole configuration, designed to protect multi-phase circuits effectively.
It utilizes a Type D tripping characteristic, which allows it to handle high inrush currents without nuisance tripping.
The dimensions of this unit are 17.5 mm in width and 62 mm in depth, making it compact for installation in electrical panels.
It has an IP20 rating, providing protection against solid objects but no protection against liquids.
It is designed for mounting on DIN rails, featuring screw terminal connections for secure wiring.
This model complies with IEC and EN 60898 standards, ensuring safety and performance compliance.
It is equipped with a toggle switch actuator for easy manual operation and reset.
This circuit breaker is commonly used in industrial automation, electrical distribution boards, commercial buildings, and HVAC systems.
