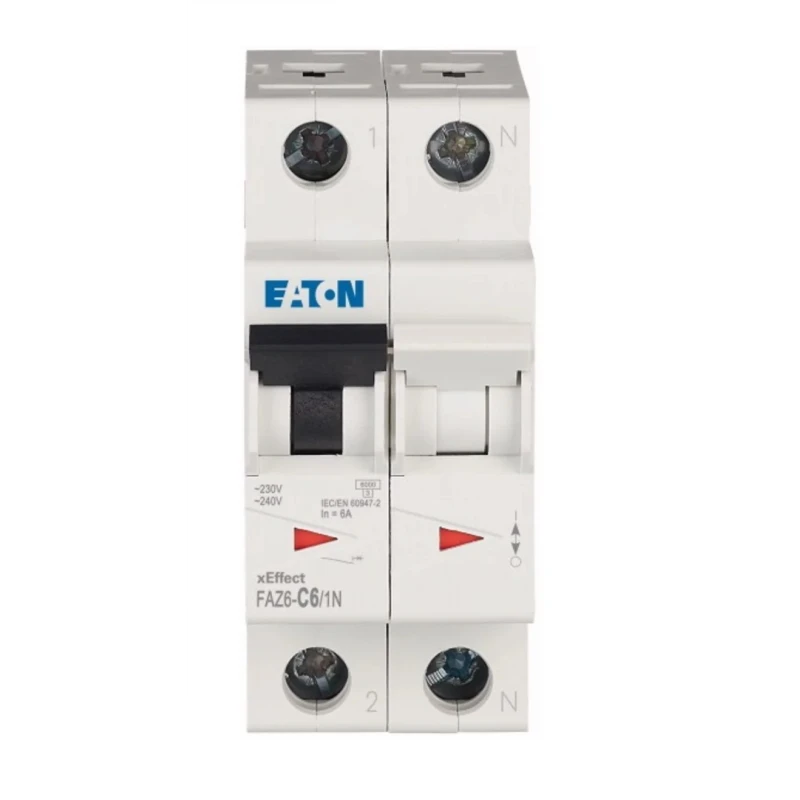

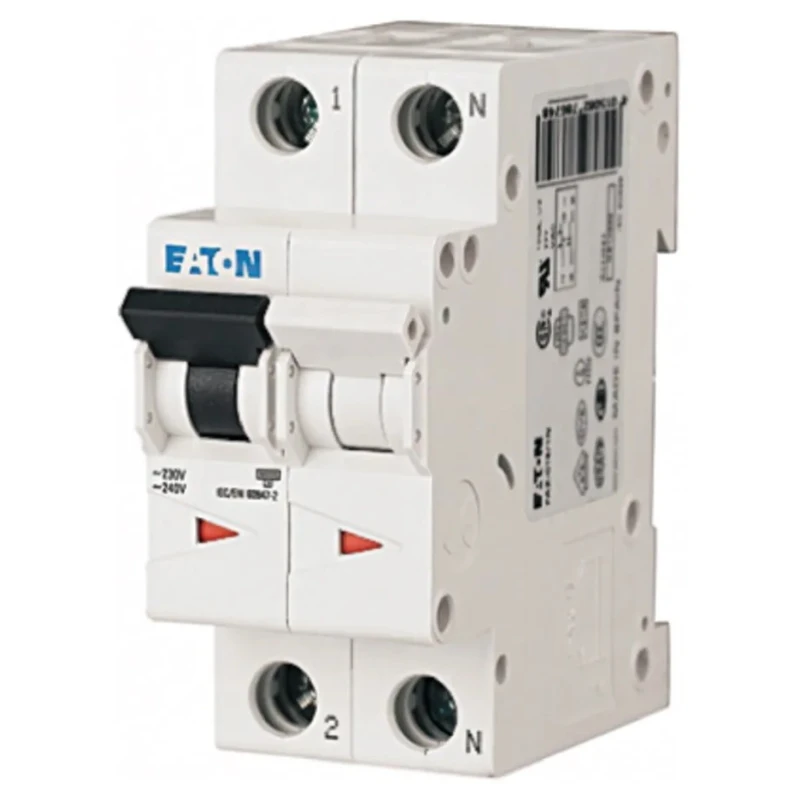

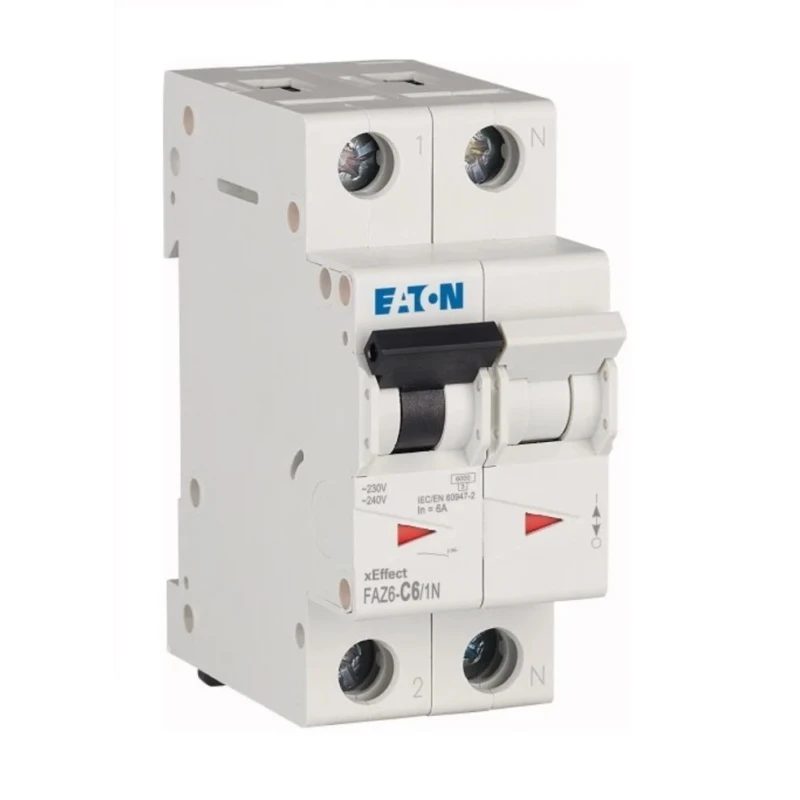

Eaton xEffect Series 2-Pole Miniature Circuit Breaker 6A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

The Eaton xEffect FAZ6 Miniature Circuit Breaker, model FAZ6, is a 2-pole protective device rated at 6 amps current with a type C tripping characteristic, engineered for industrial and commercial applications requiring reliable circuit protection.

This MCB operates at a rated AC voltage of 400V and is capable of interrupting fault currents up to 6 kA, protecting electrical installations from short circuits and overloads efficiently.

The thermal magnetic tripping mechanism ensures rapid disconnection to minimize damage to equipment and enhance safety. Its toggle switch actuator allows intuitive operation, supported by status indicators and labelled terminals.

Designed to mount on standard DIN rails via a secure rear clip, the FAZ6 series breakers are compact, with dimensions measuring 80 mm length, 17.5 mm width, and 62 mm depth, facilitating easy integration within electrical panels or safety systems alongside accessories such as auxiliary contacts or shunt trips.

Safety features include recessed screw terminals to prevent inadvertent contact and toggles which cannot be overridden, ensuring the breaker provides a long service life of approximately 10,000 switching operations.

Suitable for industrial, commercial, and residential electrical protection systems. Commonly used in motor circuits, lighting, and branch circuits requiring Type C tripping. Compact modular design supports system scalability and maintenance ease.

High durability ensures lasting performance over extensive operation cycles. Provides flexibility in installation by accepting power feeds from line or load sides.

This high-quality Eaton MCB offers dependable circuit protection for a wide range of electrical applications including industrial automation, manufacturing plants, commercial buildings, and residential safety installations.
