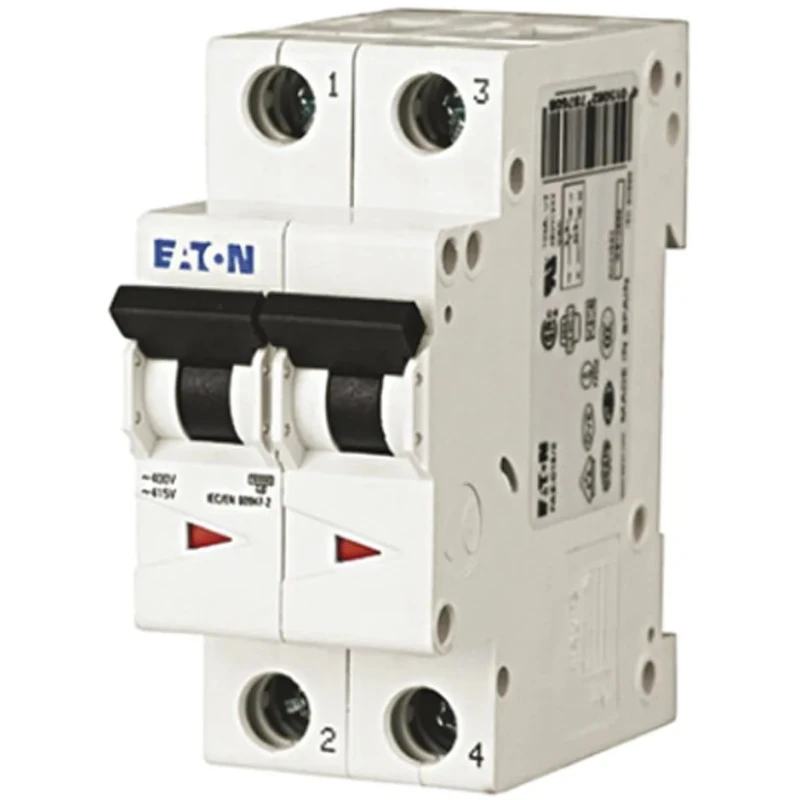

Eaton xEffect Miniature Circuit Breaker, 2-Pole, 3A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 3A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Thermal-magnetic overcurrent protection ensures safe interruption.
- Toggle switch with clear contact position indication.
- Compact DIN rail mounting saves panel space.
- Instantaneous trip characteristics optimized for higher inrush currents.
- Finger-proof and trip-free mechanism for increased safety.
- Suitable for electrical distribution boards and control circuits.
- Wide range of current ratings and tripping types available within the FAZ6 series.
- Complies with IEC 60947-2 standards for low voltage circuit breakers.
Product Description
Eaton FAZ6 Miniature Circuit Breaker, model FAZ6, is a 2-pole electrical protection device rated for 3 amperes and Type C tripping characteristic, designed for AC voltages up to 400V. This device offers a breaking capacity of 6 kA, delivering dependable protection against overloads and short circuits in various industrial, commercial, and residential applications. Featuring a thermal-magnetic tripping mechanism, the breaker effectively limits short-circuit energy to protect downstream equipment.
The compact design allows easy DIN rail mounting with a module width of only 17.5 mm per pole, enabling space-saving installation in electrical distribution boards and control panels. The toggle switch provides clear indication of contact position and includes a trip-free mechanism that prevents manual override, enhancing operational safety. The FAZ6 series breakers are finger-proof for additional user safety and meet IEC 60947-2 standards applicable to low voltage circuit breakers.
This breaker is ideally suited for use in electrical automation, manufacturing, HVAC installations, and other industrial control systems requiring reliable current interruption. Eaton's FAZ6 series also offers a broad range of configurations including single to multi-pole variants with current ratings from 0.5 A to 63 A, and breaking capacities of up to 10 kA depending on the model.
Thermal-magnetic overcurrent protection for fast and safe circuit interruption. Toggle switch with visible contact position indicator for ease of use. Compact DIN rail mounting saves space in panels and reduces installation costs.
Trip-free mechanism prevents overriding the protection function. Finger-proof construction enhances operator safety. Breaking capacity of 6 kA suitable for most industrial and commercial circuits. Compliant with IEC 60947-2 low voltage circuit breaker standards.
Wide range of product variants and accessories available within the FAZ6 series. Set contents: This listing is for one Eaton FAZ6 miniature circuit breaker, 2-pole, 3 A, Type C. Installation accessories and additional poles or modules are sold separately.
Explore Eaton Miniature Circuit Breakers and related electrical protection devices in the Electronics & Electricals category at EnvMart for advanced industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton FAZ6 miniature circuit breaker is rated for a current of 3 amperes.
This model has a breaking capacity of 6 kA, suitable for protecting against overloads and short circuits.
The maximum rated AC voltage for the Eaton FAZ6 is 400V.
It utilizes a thermal-magnetic tripping mechanism, which provides effective protection against overloads and short circuits.
This circuit breaker is designed for DIN rail mounting, which allows for compact installation in electrical panels.
The dimensions of this model are 62 mm in depth and 17.5 mm in width per pole.
The FAZ6 has Type C tripping characteristics, which means it trips instantaneously when the current is 5 to 10 times the rated current.
Yes, this circuit breaker is suitable for various applications, including residential, commercial, and industrial settings.
It features a trip-free mechanism that prevents manual override and a finger-proof design for enhanced user safety.
This circuit breaker complies with IEC 60947-2 standards for low voltage circuit breakers.
The Eaton FAZ6 miniature circuit breaker is manufactured in India.
The reset actuator for the FAZ6 is a toggle switch, which provides clear indication of the contact position.
