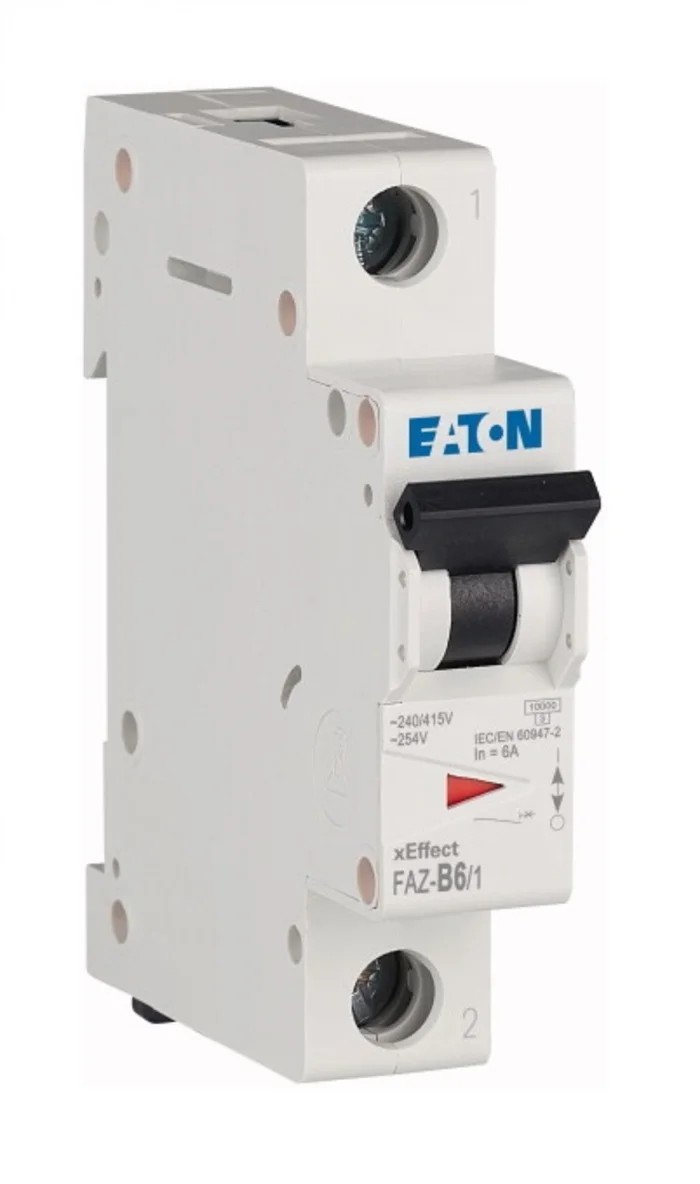

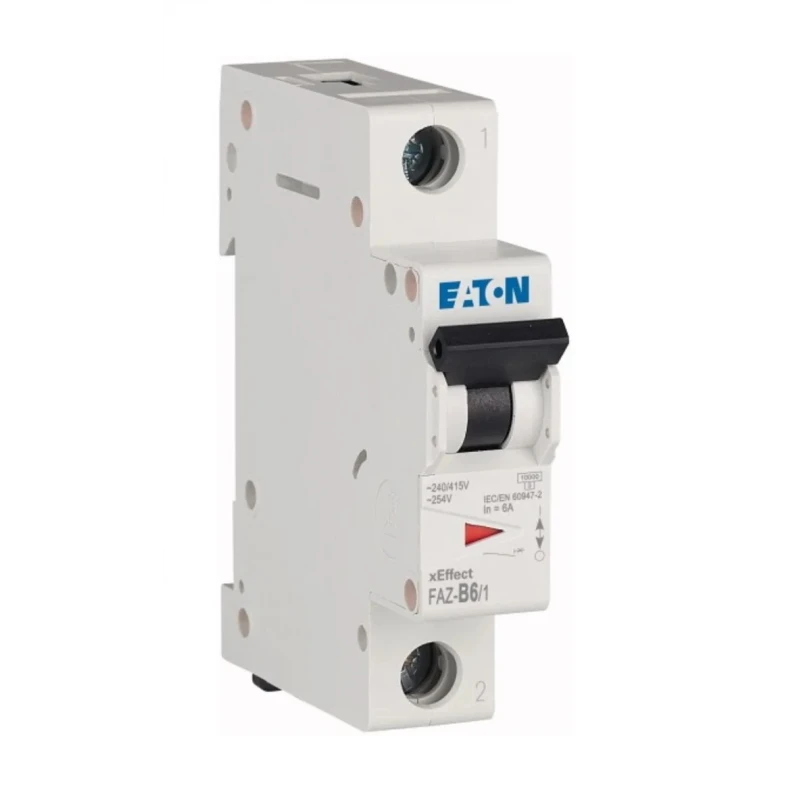

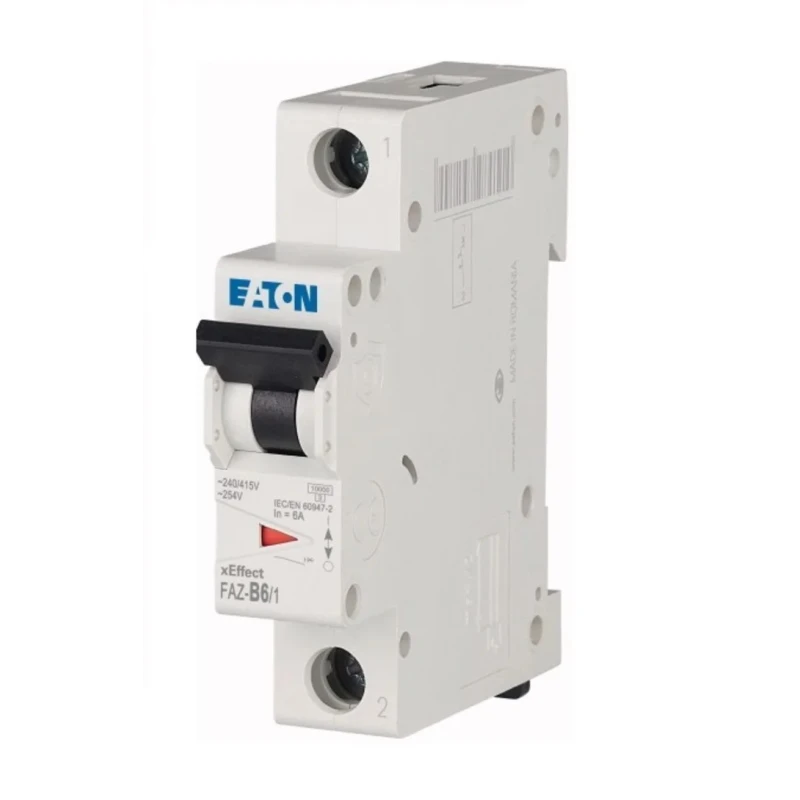

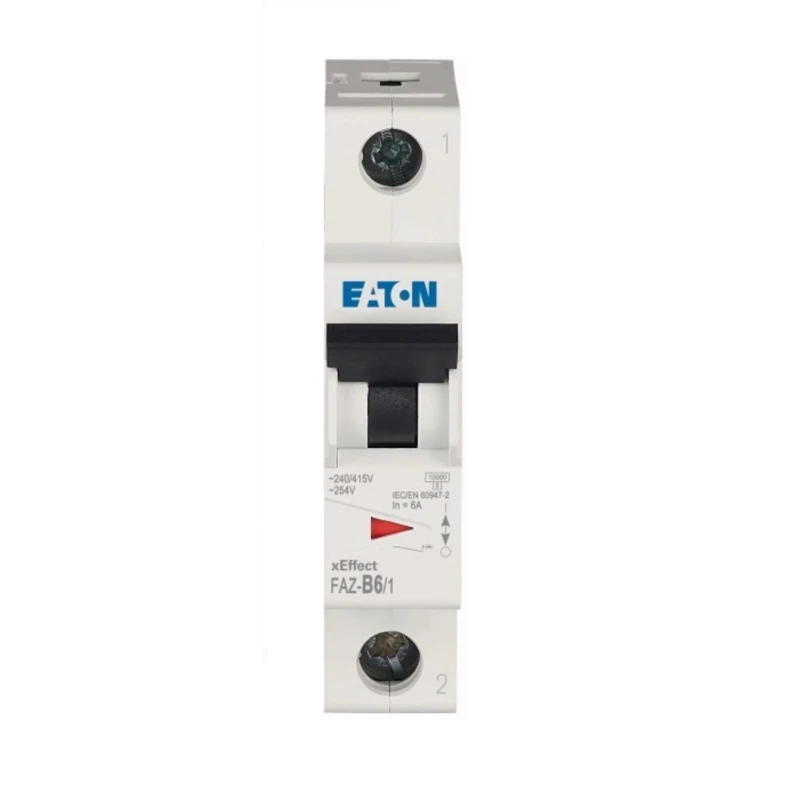

Eaton xEffect FAZ / Miniature Circuit Breaker, 1-Pole, 6A Current Rating, Type B Tripping, 400V AC, 6 kA Breaking FAZ6

Eaton FAZ6 Miniature Circuit Breaker (model FAZ6) offers a professional-grade, single-pole circuit protection solution with a current rating of 6A, rated for 400V AC systems. Designed in the xEffect series, it provides robust protection against overcurrent and short circuit events with a breaking capacity of 6 kA. This device features a thermal magnetic tripping mechanism that ensures precise and reliable operation, protecting wiring and electrical equipment from damage.

The MCB is designed for DIN rail mounting, allowing straightforward and tool-free installation in electrical panels. Its compact dimensions of 80mm height, 17.5mm width, and 62mm depth make it suitable for installations with limited space. The thermoplastic housing material enhances durability, offering resistance to mechanical impact and abrasion, making it suitable for residential lighting systems and domestic appliances with resistive elements.

The twin-purpose terminals provide installation flexibility by enabling power to be fed from either the load or line side, catering to various circuit configurations. The device holds an IP20 rating, safeguarding against solid foreign objects and offering basic dust protection.

Certified to stringent standards including IEC/EN 60947-2, IEC/EN 60898, UL 1077, CSA 22.2 No. 235, CE, and VDE, this miniature circuit breaker assures compliance and safety in multiple jurisdictions. Moreover, it supports continuous operation in harsh environments with its wide operating temperature range of -40°C to +75°C.

Reliable circuit protection for home and commercial electrical systems. Thermal magnetic trip mechanism ensures quick and accurate response. High breaking capacity of 6 kA suitable for short circuit conditions. Compact DIN rail mountable form factor for easy installation.

Flexible twin-purpose terminals support versatile wiring configurations. Thermoplastic housing provides durability and mechanical resistance. Complies with major international electrical safety and performance standards.

Wide temperature tolerance for reliable performance under varying conditions.

This Eaton FAZ6 Miniature Circuit Breaker is ideal for industrial, residential, and commercial electrical distribution and safety applications. Explore more circuit protection solutions and Eaton products on EnvMart.
