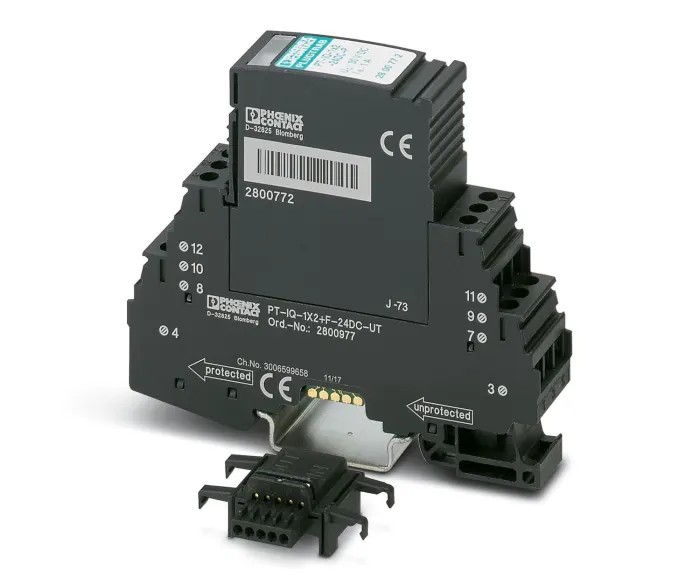

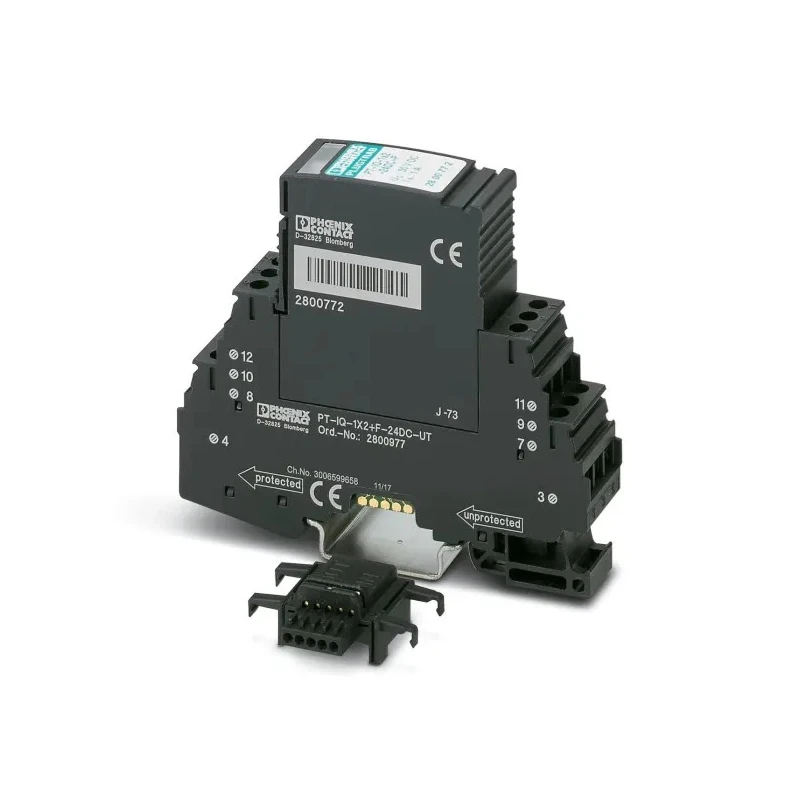

Phoenix Contact Modular Surge Protector, 10 kA, DIN Rail Mount Type 2800977

Phoenix Contact 2800977 Modular Surge Protector is an advanced surge protection device designed for measurement and control (MCR) technology applications. With a maximum surge current capacity of 10 kA and DIN Rail mounting, it ensures robust protection in industrial, automation, and electrical power distribution environments.

This modular surge protection system features the PLUGTRAB PT-IQ intelligent design, incorporating a unique three-stage status display that communicates the condition of the protective device: green indicating normal operation, yellow suggesting replacement soon, and red signaling immediate replacement is necessary. This feature allows for early detection of faults, minimizing downtime and equipment damage.

The device architecture prevents incorrect module connections by utilizing voltage keying and polarity reversal protection, facilitating error-free installation. One protector device efficiently safeguards up to five signal lines, reducing space requirements and installation complexity on DIN Rail assemblies.

Operating reliably within a wide temperature range from -40°C to 70°C, this surge protector is suited for demanding industrial applications experiencing voltage surges commonly caused by switching operations, lightning strikes, or fluorescent lighting interference. The system controller DIN Rail module can monitor and power up to 28 protective devices, supporting scalable surge protection solutions.

Both direct and indirect grounding options are available, expanding its applicability across various installation standards and practices. The energy-efficient green status indicator can be switched off by the control unit to reduce power consumption.

Compliant with RoHS and WEEE, the product aligns with environmental directives for safety and disposal. Manufactured in Germany, it upholds high-quality benchmarks for surge protection reliability.

This surge protection device is ideally suited for industrial, manufacturing, water treatment, HVAC, and commercial electrical panels requiring dependable transient voltage suppression on DIN Rail mountings.

The device withstands surge currents reaching 10 kA. Equipped with PLUGTRAB PT-IQ three-stage status indication for early detection of protective device condition. Designed to prevent incorrect connections through voltage keying and polarity reversal protection.

Space-saving design protects up to five signal lines in one device. Suitable for harsh environments with operating temperature range from -40°C to 70°C. The modular system is easily extendable, capable of monitoring up to 28 devices via a DIN Rail system controller.

Supports direct and indirect grounding options for versatile installation. Energy-efficient status indicator can be controlled remotely by the monitoring unit. Conforms to RoHS and WEEE environmental standards. Manufactured in Germany adhering to quality standards.
