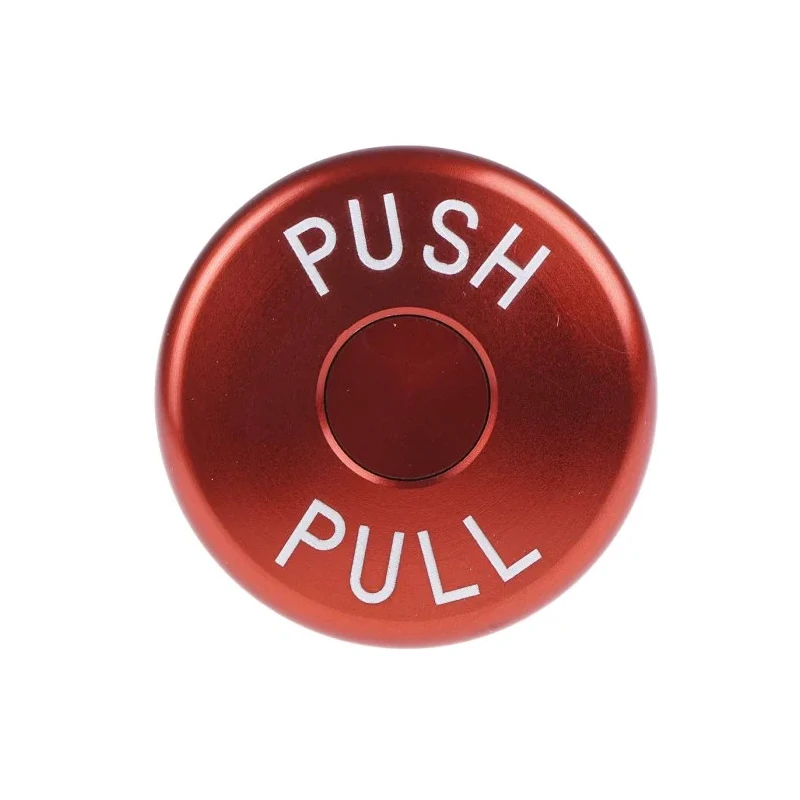

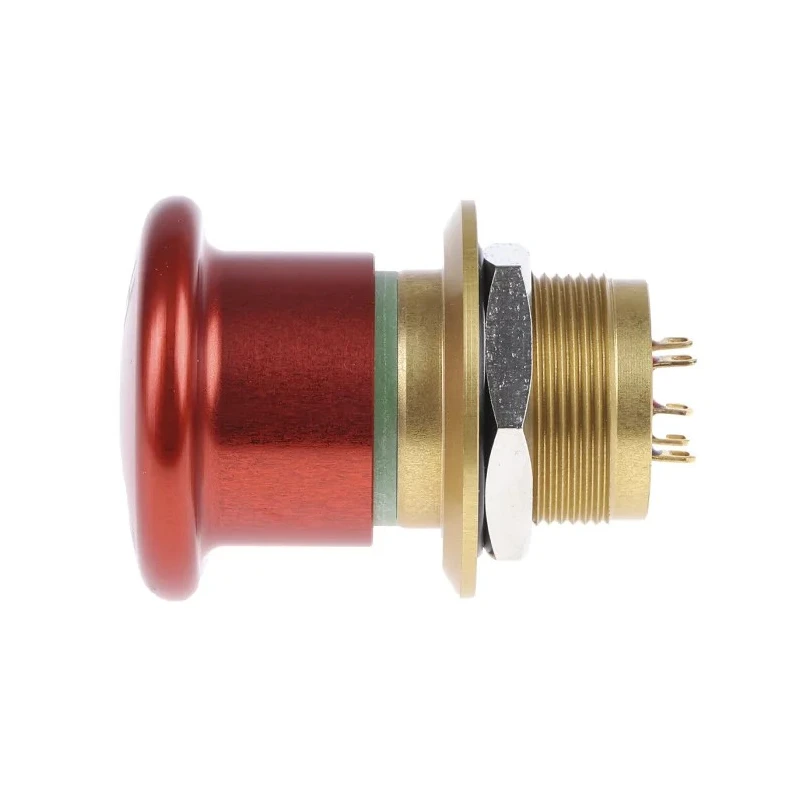

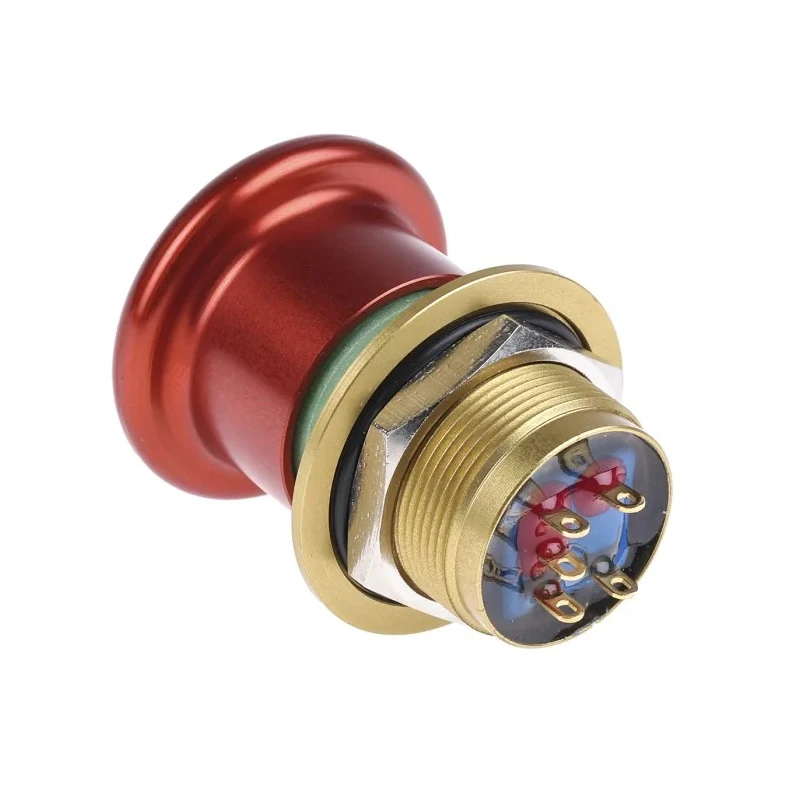

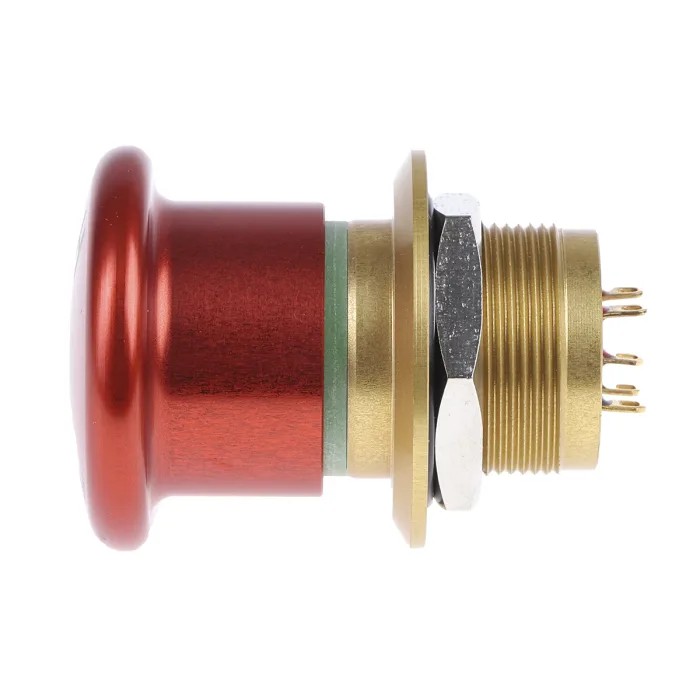

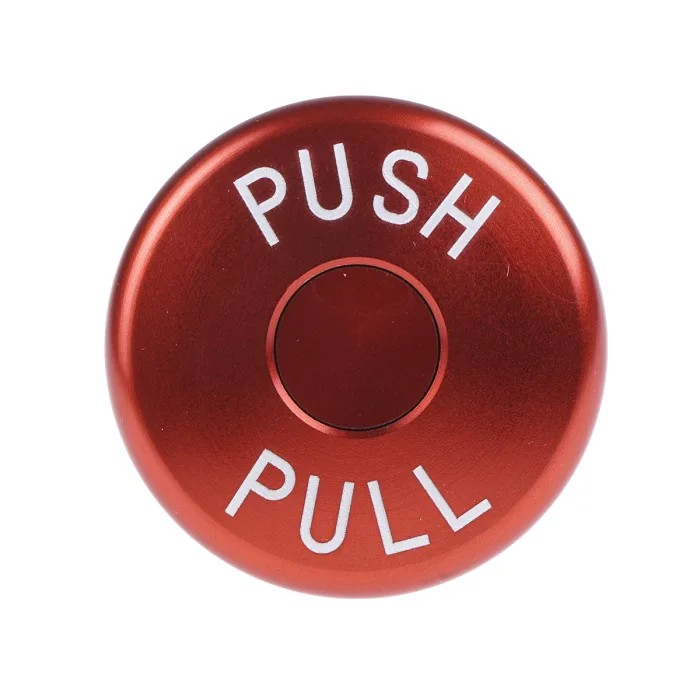

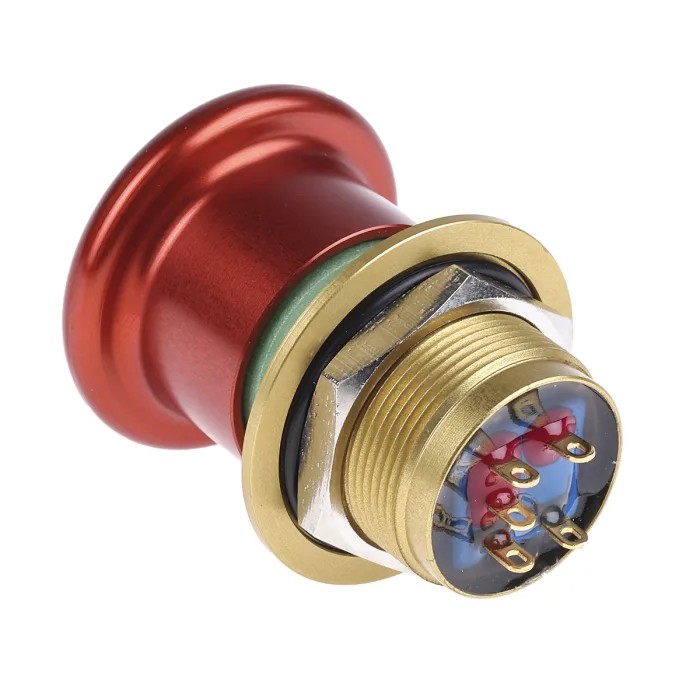

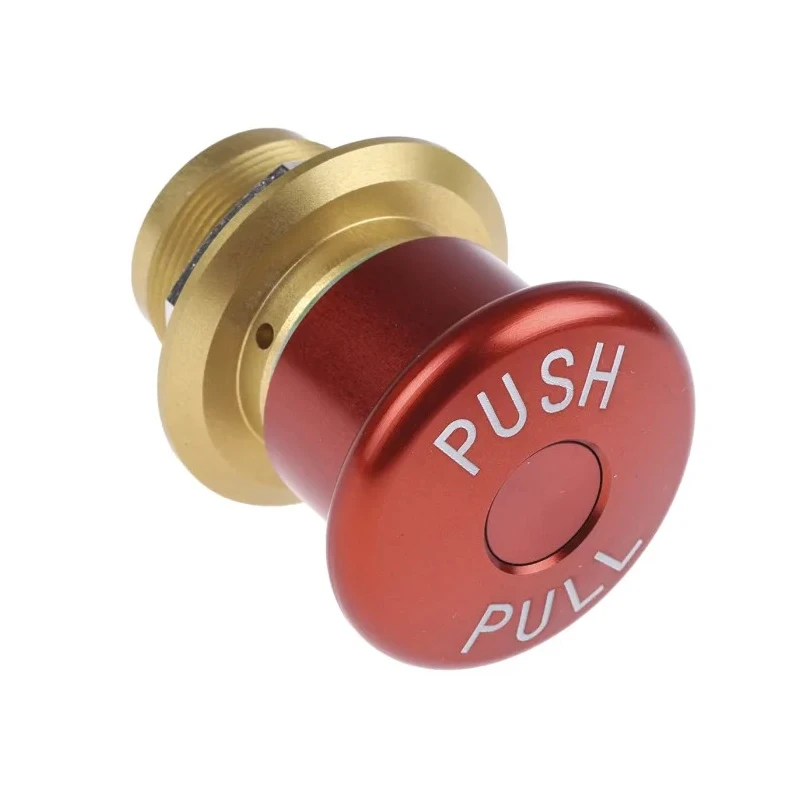

APEM ES2S Series Pull Release Emergency Stop Push Button, Panel Mount, 24V DC, 1A, IP65, 34 mm Cutout ES2S

Name: APEM ES2S Series Pull Release Emergency Stop Push Button, Panel Mount, 24V DC, 1A, IP65, 34 mm Cutout ES2S
Brand: APEM
SKU: 365884
Price: 16628.57 INR
Availability: InStock



Category Emergency Stop Push Button Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Colour	Red
Model	ES2S
Depth	42.3mm
IP Rating	IP65
Mount Type	Panel Mount
Housing Material	Diallylphthalate (Dap)
Series	ES2S
Contact Configuration	SPDT
Switch Configuration	On-On
Head Diameter	35mm
Terminal type	Switch Terminal
Contact DC Voltage	24V dc
Contact Current	1A
Cutout Diameter	34mm
Push Button Actuation	Pull Release
Push Button Material	Aluminium

Key Features

The button features a robust red anodised mushroom head made from diallylphthalate material.
It supports a contact current of 1A at 24V DC voltage.
Designed with IP65 rating, it ensures protection against dust and water jets.
The push button acts via pull release and includes a push-pull marking for ease of use.
It provides 100,000 mechanical life cycles ensuring durable performance.
Suitable for industrial applications like lifts and air-conditioning panels.
The terminal type is solder lug for secure electrical connection.
The device has a depth of 42.3 mm behind the panel to fit compact installations.

Product Description

APEM ES2S Series Pull Release Emergency Stop Push Button ES2S provides industrial-grade safety control with a panel mount design requiring a 34 mm cutout. The device features a distinctive red mushroom head made from durable diallylphthalate (DAP) material, sized at 35 mm in diameter. It uses a pull release actuation mechanism ensuring positive reset after activation and includes a clear PUSH-PULL marking for operator clarity.

This Emergency Stop Push Button is constructed with aluminium for the push button material and offers an SPDT (Single Pole Double Throw) contact configuration. Rated at 24V DC and 1A contact current, it is suitable for low-voltage control circuits. Its IP65 ingress protection rating guarantees resistance against dust ingress and water jets, making it suitable for harsh industrial environments.

With a mechanical life capable of 100,000 cycles, this push button ensures long-term operational reliability with no axis deformation even under significant shocks. The solder-lug terminal type allows for secure electrical wiring and installation.

Its compact design includes a behind-panel depth of only 42.3 mm, ideal for tight panel spaces. This push button does not illuminate, focusing on safety stop functions. It is well suited for applications in industrial lifts, air conditioning control panels, oil and food industries, and other demanding industrial settings.

The pull to reset actuation enhances safe handling and fault recovery. The device complies with IK10 mechanical impact resistance and EN 60947-5-1 standards for industrial control equipment. Its IP65 rating makes it dust-tight and protected against water jets.

The aluminium button offers durable operation over countless cycles. Compact depth ensures versatility in panel installations. The SPDT contact allows flexible switch control configurations. Non-illuminated design emphasizes emergency stop function clarity.

Designed in France, achieving high manufacturing standards. Explore our comprehensive Electronics & Electricals range at EnvMart to find more push button switches and industrial control solutions to suit your applications.
