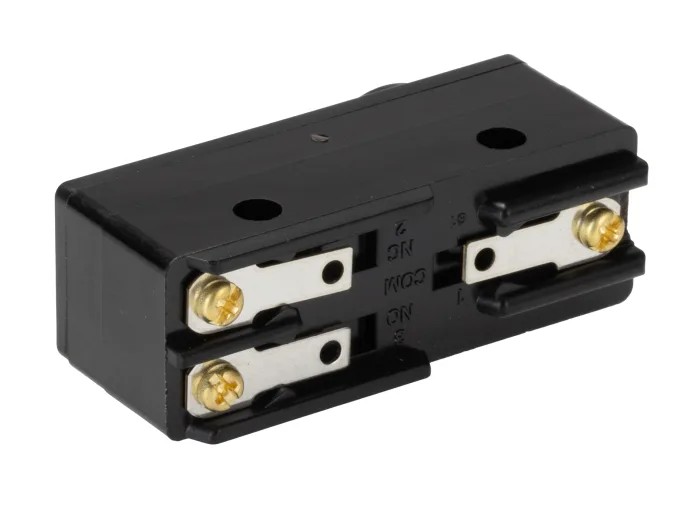

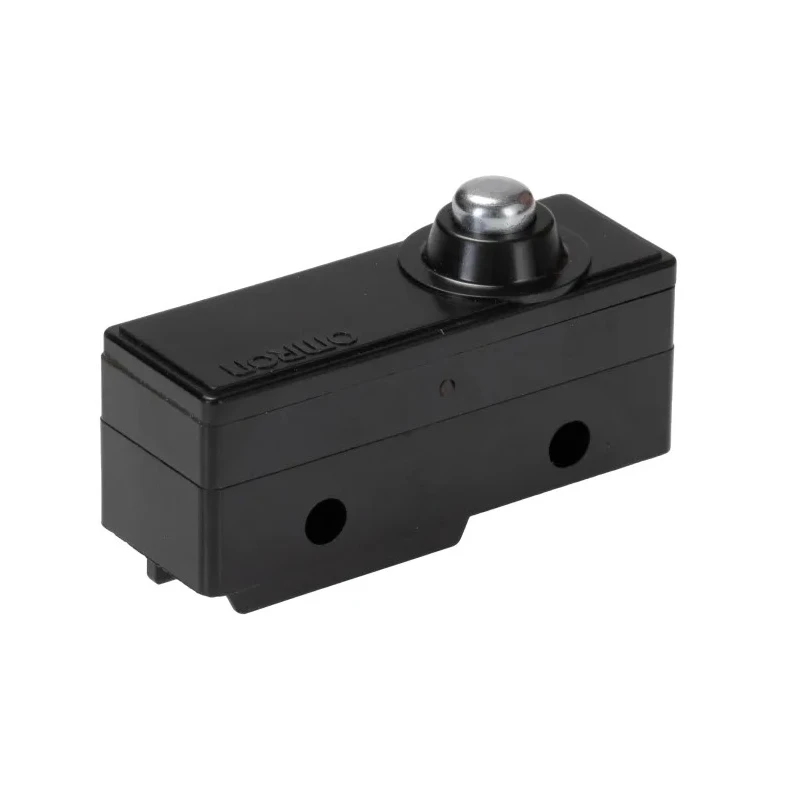

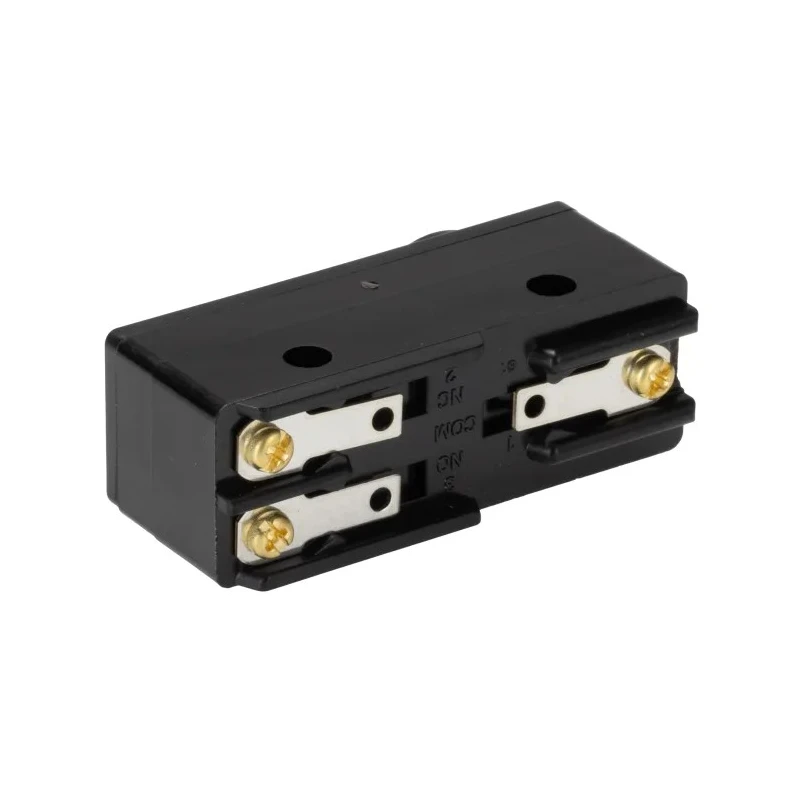

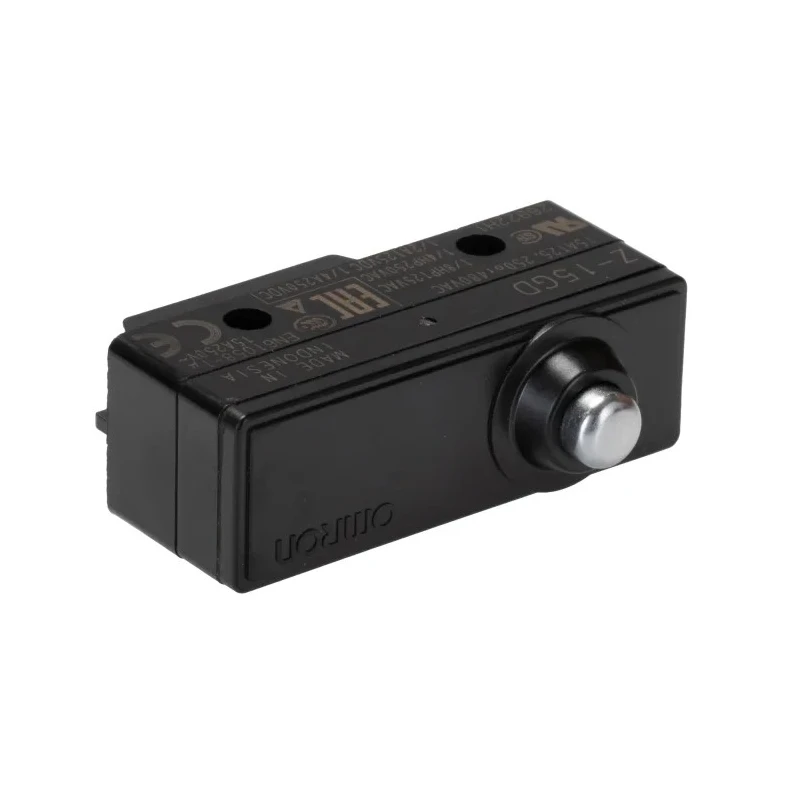

Omron Z Series Plunger Limit Switch SPDT Thermosetting Resin Housing 500V AC 15A IP00
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 49.2mm |
| Model | IP00 |
| Depth | 17.45mm |
| IP Rating | IP00 |
| Width | 24.2mm |
| Housing Material | Thermosetting Resin |
| Series | Z |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Side |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | CCC, CE, CSA, UL |
| Operating Force | 2.45N |
| Mechanical Life | 20000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 500V ac |
Key Features
- The plunger actuator provides precise and effective actuation.
- SPDT contact configuration allows versatile control options.
- Snap action ensures quick and reliable switch response times.
- Thermosetting resin housing ensures excellent durability and resistance to harsh environments.
- Rated for switching AC voltage up to 500V and DC voltage up to 250V.
- Operates efficiently within -25°C to 80°C temperature range for versatile industrial use.
- Mechanical life of 20 million cycles ensures long-lasting performance.
- Side mounting orientation facilitates flexible installation.
Product Description

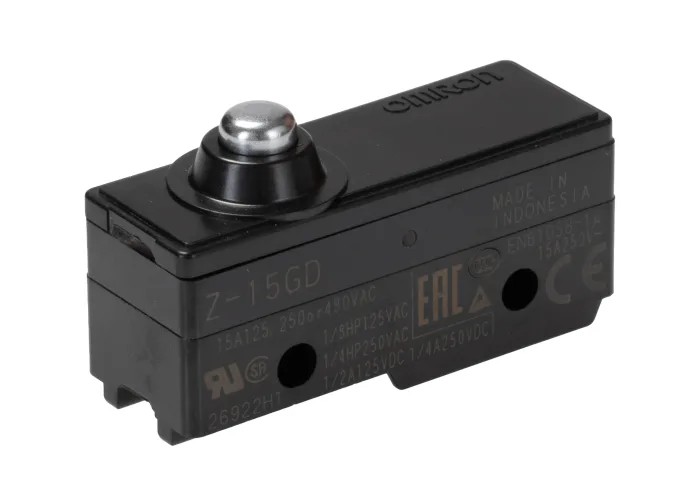

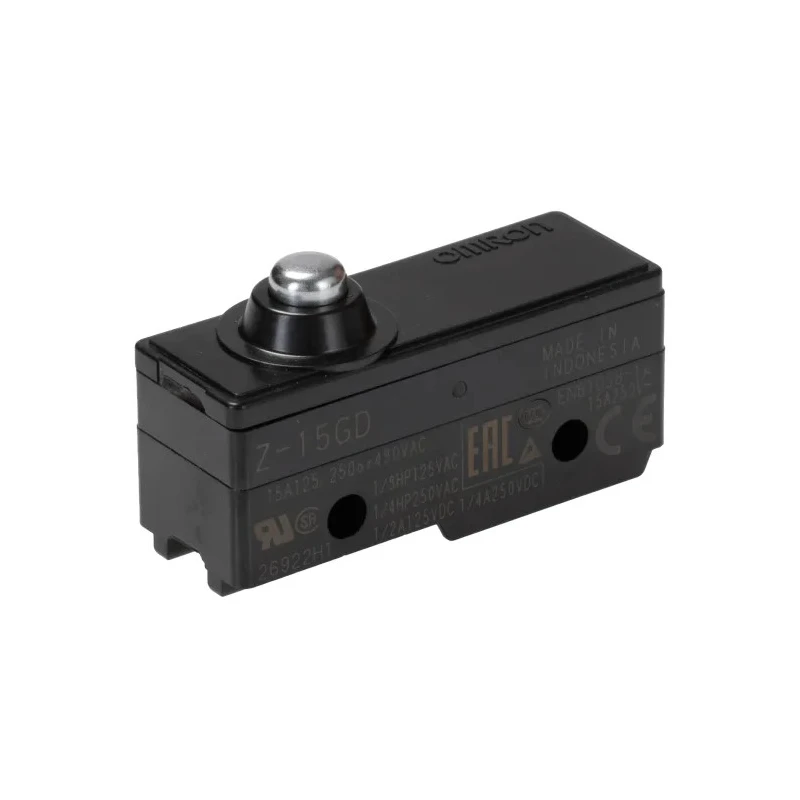

Omron Z-15GD is a high-performance plunger limit switch from the Omron Z Series, offering a durable design with thermosetting resin housing capable of withstanding challenging industrial environments. It features a Single Pole Double Throw (SPDT) contact configuration and snap action contact type to provide precise electrical switching responses for automation and control applications.
This limit switch supports switching AC voltages up to 500V and DC voltages up to 250V with a switching current of 15A, making it suitable for various electrical and mechanical control systems. Its operating temperature range from -25°C to 80°C ensures reliable functionality across diverse climatic conditions.
Mechanical durability is assured with a rated life of up to 20 million cycles, providing a cost-effective, maintenance-free solution in demanding industrial settings. The device features a side mounting orientation and solder terminal type for ease of integration into existing machinery and control circuits.
Applications of the Omron Z-15GD limit switch include positioning detection in automated machinery, conveyor system control, and robotic movement sensing, making it indispensable in manufacturing, industrial automation, and electrical control environments.
The plunger actuator ensures effective and responsive actuation. SPDT configuration enables multiple control and signaling options. Snap action contact mechanism delivers fast switching performance. Thermosetting resin housing protects against environmental stress and damage.
Capable of handling high electrical loads with 15A current rating. Wide temperature range operation supports industrial versatility. Long mechanical life minimizes downtime and replacement costs. Side mounting flexibility eases installation needs.
Solder-terminal type ensures reliable electrical connections.
This limit switch is certified to international standards CCC, CE, CSA, and UL, ensuring compliance and safety across varied industrial sectors. Its robust construction and reliable operation make it a preferred choice in electrical automation and control applications.
Explore more products in the Limit Switch category to find comprehensive solutions for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This limit switch supports switching AC voltages up to 500V and DC voltages up to 250V.
It has a mechanical life rated for up to 20 million cycles, ensuring long-lasting performance in industrial applications.
The operating temperature range is from -25°C to 80°C, making it suitable for diverse climatic conditions.
It uses a plunger actuator, which provides precise and effective actuation.
The contact configuration is Single Pole Double Throw (SPDT), allowing versatile control options.
The dimensions are 49.2mm in length, 24.2mm in width, and 17.45mm in depth.
The housing is made of thermosetting resin, which provides excellent durability and resistance to harsh environments.
It features a side mounting orientation, which facilitates flexible installation.
The switching current rating is 15A, suitable for handling high electrical loads.
It is certified to international standards including CCC, CE, CSA, and UL, ensuring compliance and safety.
It features a solder terminal type, ensuring reliable electrical connections.
The operating force required for actuation is 2.45N.
