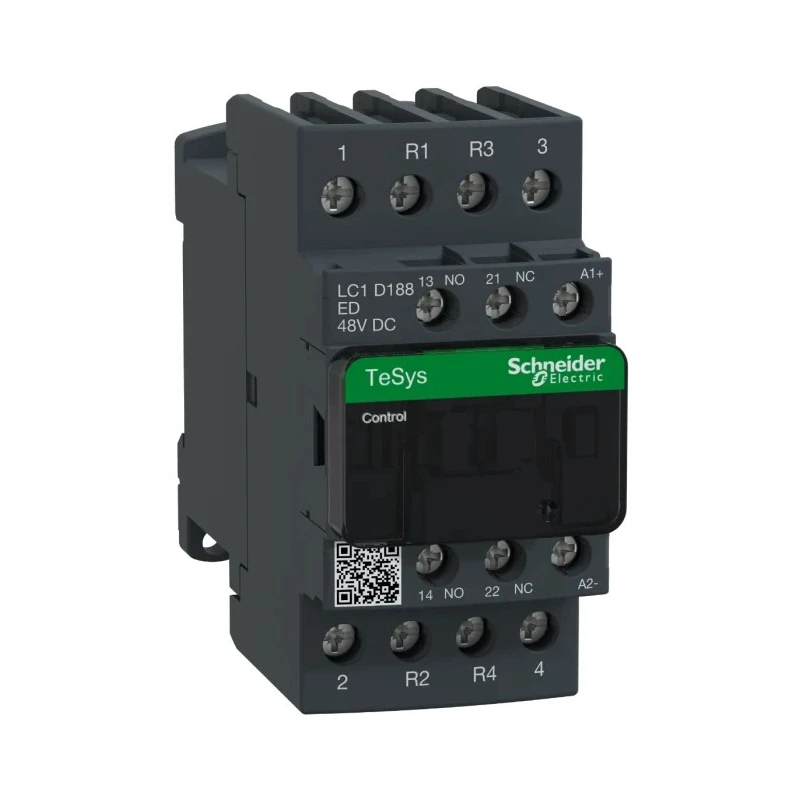

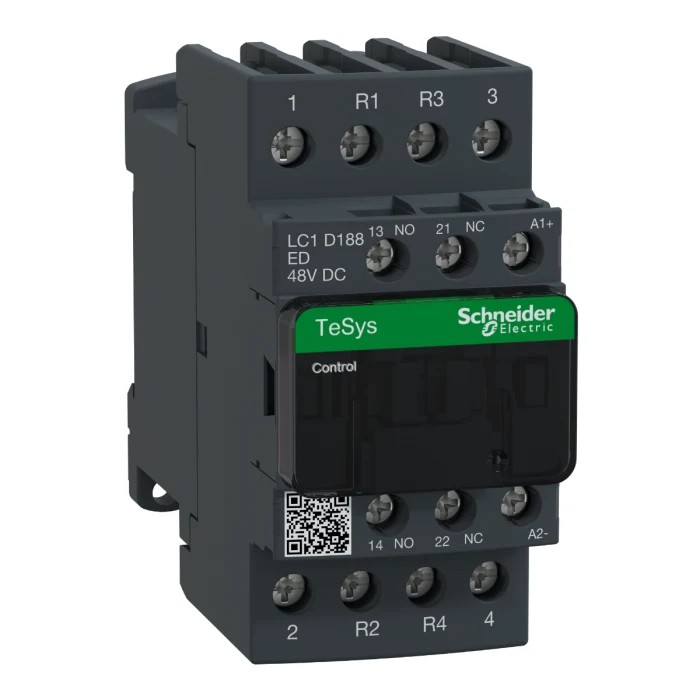

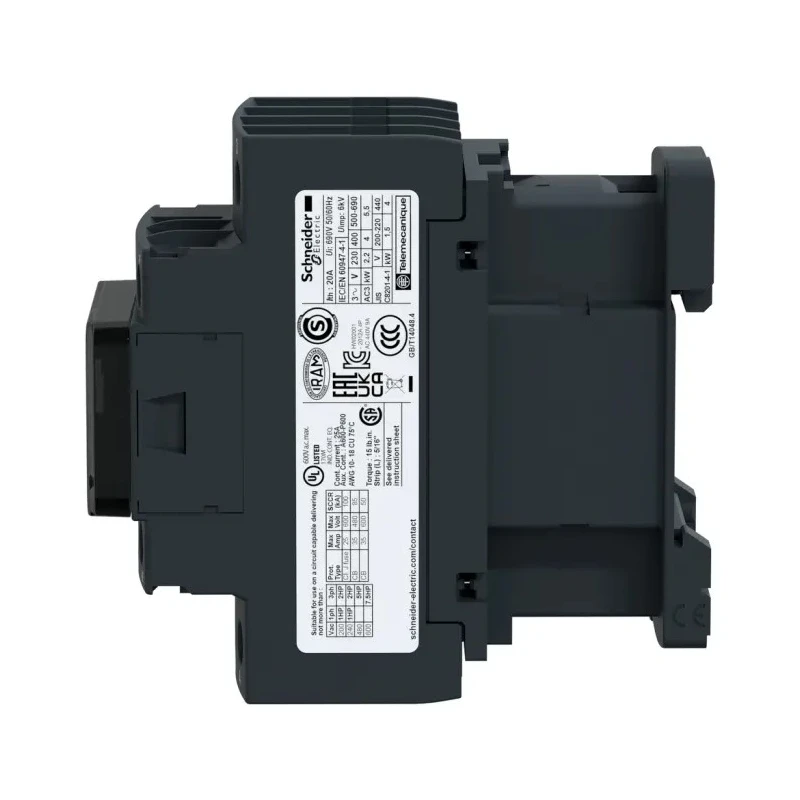

Schneider Electric TeSys D 4-Pole Contactor with 48V DC Coil, 32A, 2 NO/2 NC, 690V AC/DC LC1D188ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D188ED |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Equipped with 2 normally open and 2 normally closed contacts.
- Compact DIN Rail mounting with screw clamp terminals for easy installation.
- Operates reliably in temperatures from -5°C to 60°C.
- Meets international standards including CSA, UL, IEC, CCC, and EAC.
- Coil power consumption is 2.5W at 48V DC, ensuring energy efficiency.
- Includes 1 normally open and 1 normally closed auxiliary contact, with NC mirror certification.
- Compact dimensions of 91 mm length, 45 mm width, and 107 mm depth.
Product Description
Schneider Electric LC1D188ED TeSys D Contactor is a robust solution designed for motor control and resistive load applications. It features a 4-pole configuration with a 48V DC coil and a contact voltage rating of 690V AC/DC, suitable for a wide range of industrial environments.
This contactor delivers a contact current capacity of 32A with a power rating of 2.5W at 48V DC, ensuring efficient operation. Its compact design with DIN Rail mounting and screw clamp terminals simplifies installation and maintenance.
The device is engineered to operate reliably between -5°C to 60°C and supports up to 3600 cycles per hour, guaranteeing durability and long mechanical and electrical life.
The contactor includes two auxiliary contacts configured as 1 NO and 1 NC, with the NC contact mirror certified for safety and compliance. It adheres to multiple international standards such as CSA, UL, IEC, CCC, EAC, and Marine certifications, evidencing its quality and reliability.
Dimensions measure 91 mm in length, 45 mm in width, and 107 mm in depth, with a light weight of approximately 1.29 lbs, supporting easy integration into existing systems. Schneider Electric emphasizes sustainability with this Green Premium certified product, meeting RoHS and REACh requirements.
Designed for motor starters and non-inductive load applications offering flexible integration. IP20 finger-safe terminals with international terminal markings ensure safe handling. Extensive accessory availability further enhances application versatility.
This Contactor is an ideal choice for electrical automation, motor control systems, HVAC setups, manufacturing machinery, and other industrial automation applications where reliable switching is critical. Explore more Schneider Electric products and solutions at EnvMart for comprehensive electrical control gear needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current capacity of 32A, making it suitable for various motor control and resistive load applications.
The coil voltage for this contactor is 48V DC, which ensures efficient operation in its intended applications.
The dimensions of this contactor are 91 mm in length, 45 mm in width, and 107 mm in depth.
It supports DIN Rail mounting, which facilitates easy installation and maintenance.
The maximum operating temperature for this unit is 60°C, allowing it to function reliably in various environments.
It meets several international standards including CSA, UL, IEC, CCC, and EAC, ensuring compliance and quality.
This model includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The coil power rating is 2.5W at 48V DC, ensuring energy efficiency during operation.
The minimum operating temperature for this contactor is -5°C, allowing it to operate in cooler environments.
It is designed for motor control and resistive load applications, making it versatile for various industrial uses.
It features screw connections with IP20 finger-safe terminals, providing safe handling and installation.
The operational current rating of this model is 32A, suitable for various applications requiring reliable switching.
